8

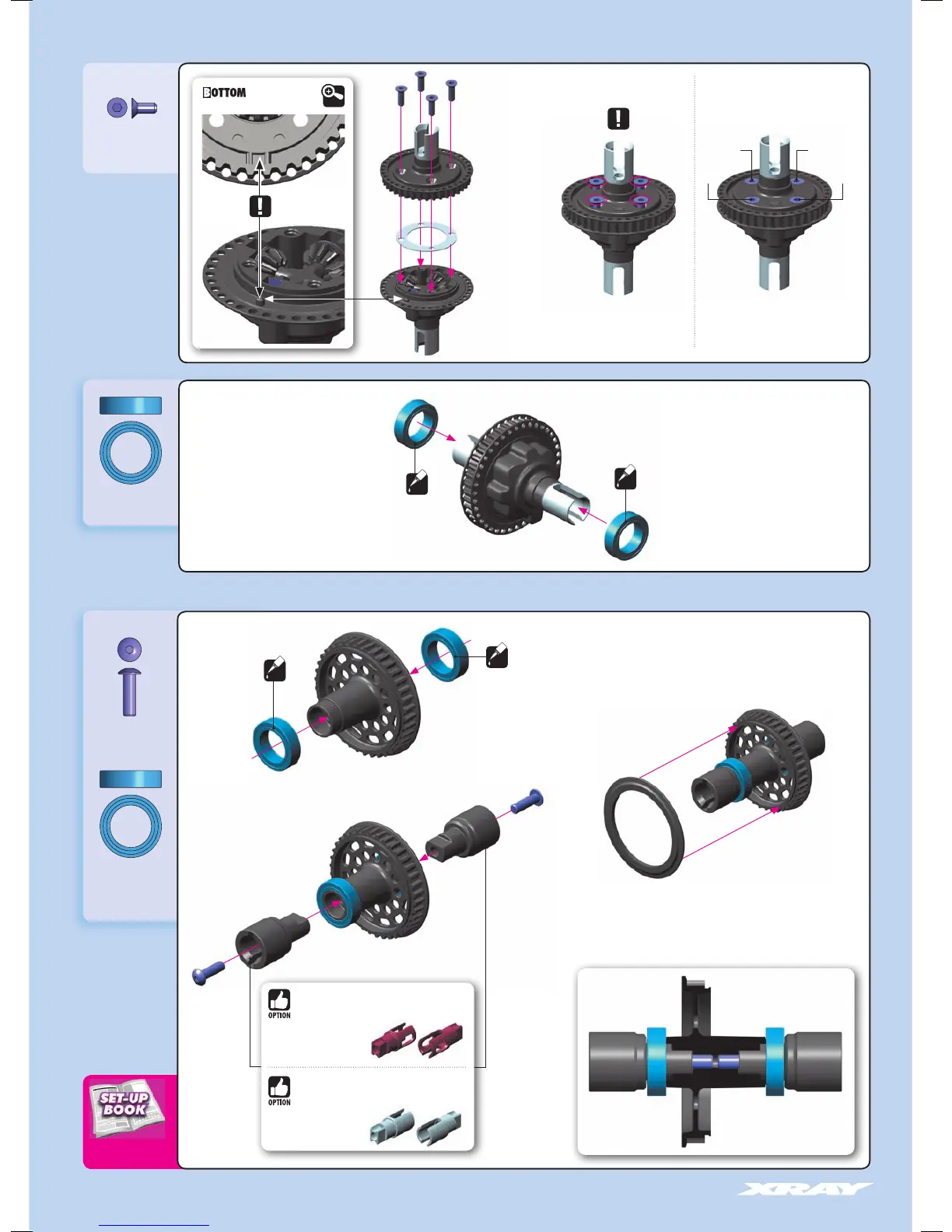

COMPOSITE FRONT SOLID AXLE
FRONT & REAR AXLES
1. GEAR DIFFERENTIAL & FRONT SOLID AXLE
902310
SH M3x10
941015
BB 10x15x4
941015
BB 10x15x4
OIL
OIL
OIL
903256
SFH M2.5x6
Tighten the screws equally but do
NOT tighten them completely.
Finish tightening in this order.
➊
➋
➌
➍
NOTE
ORIENTATION
DETAIL
BEARING OIL
(HUDY #106230)
BEARING OIL
(HUDY #106230)
BEARING OIL
(HUDY #106230)
BEARING OIL
(HUDY #106230)
#305136
ALU SOLID DRIVESHAFT ADAPTERS
#305137
STEEL SOLID AXLE DRIVESHAFT ADAPTERS
HUDY SPRING STEEL™
OIL
CUTAWAY VIEW
