Xray T4 2018 User Manual

9
305188
940510
965050
304900
903306
903310
903306
903306
903304
303003-O
302034-O
303001-O
902306
902306
902306
305577
303085
981212
305784
940510
301145
903306
303002-O
902306
902306
902306
305446
960030
305432
302034-O
302760-O
302761-O
302761-O
302760-O
302034-O
302084
302062
302062
305521-K
902304
902306
302062
305577
965050
302034-O

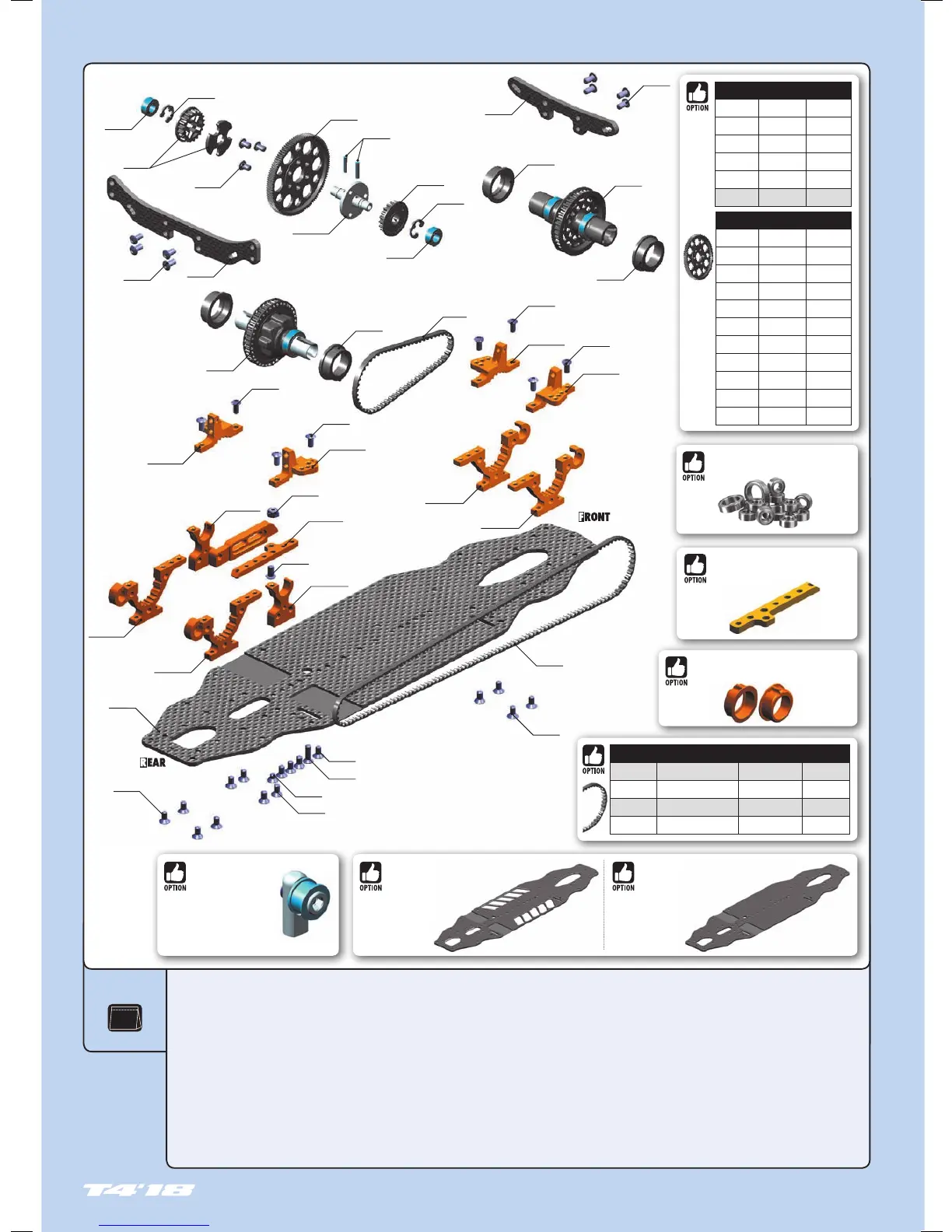

2. CENTRAL TRANSMISSION
BAG
02
30 2034-O T4 ALU UPPER CLAMP WITH 5 ADJ. ROLL-CENTERS (L+R) - ORANGE
30 2062 T4 COMPOSITE ADJUSTMENT BALL-BEARING HUB (4)
30 2084 ULP SHOCK TOWER FRONT 3.0MM GRAPHITE
30 2760-O T4 ALU LOWER ADJUSTMENT BULKHEAD - FRONT R / REAR L - ORANGE
30 2761-O T4 ALU LOWER ADJUSTMENT BULKHEAD - FRONT L / REAR R - ORANGE
30 3001-O T4’18 ALU LAYSHAFT BULKHEAD RIGHT - ORANGE
30 3002-O T4’18 ALU MOTOR MOUNT - ORANGE
30 3003-O T4’18 ALU MOTOR MOUNT PLATE - ORANGE
30 3085 ULP SHOCK TOWER REAR 3.0MM GRAPHITE
30 5432 HIGH-PERFORMANCE KEVLAR® DRIVE BELT FRONT 3 x 513 MM
30 5446 HIGH-PERFORMANCE KEVLAR® DRIVE BELT REAR 3 x 189 MM
30 5521-K ALU SOLID LAYSHAFT - BLACK
30 5577 COMPOSITE FIXED PULLEY 20T (2)
30 5784 SPUR GEAR 84T / 48
90 2304 HEX SCREW SH M3x4 - STAINLESS (10)
90 2306 HEX SCREW SH M3x6 (10)
90 3304 HEX SCREW SFH M3x4 (10)
90 3306 HEX SCREW SFH M3x6 (10)
90 3310 HEX SCREW SFH M3x10 (10)
94 0510 HIGH-SPEED BALL-BEARING 5x10x4 RUBBER SEALED (2)
96 0030 NUT M3 (10)
96 5050 E-CLIP 5 (10)
98 1212 PIN 2x12 (10)
30 4900 XRAY GEAR DIFFERENTIAL - SET
30 5188 COMPOSITE SOLID AXLE 38T - SET
30 1145 T4’18 CHASSIS 2.2MM GRAPHITE
#301147
T4’18 ALU FLEX CHASSIS 2.0MM
#301146
T4’18 ALU CHASSIS 2.0MM
HIGH-PERFORMANCE KEVLAR® DRIVE BELT
#305432 FRONT 3 x 513 MM STANDARD INCLUDED
#305434 FRONT 3 x 513 MM LOW-FRICTION OPTION
#305446 REAR 3 x 189 MM STANDARD INCLUDED
#305447 REAR 3 x 189 MM LOW-FRICTION OPTION
#303004
T4’18 BRASS MOTOR MOUNT PLATE
OFFSET SPUR GEARS 48P
#305772 72T / 48P OPTION
#305776 76T / 48P OPTION
#305778 78T / 48P OPTION
#305779 79T / 48P OPTION
#305781 81T / 48P OPTION
#305784 84T / 48P INCLUDED
OFFSET SPUR GEARS 64P
#305860 90T / 64P OPTION
#305862 92T / 64P OPTION
#305866 96T / 64P OPTION
#305869 99T / 64P OPTION
#305870 100T / 64P OPTION
#305874 104T / 64P OPTION
#305876 106T / 64P OPTION
#305878 108T / 64P OPTION
#305880 110T / 64P OPTION
#305882 112T / 64P OPTION
#305884 114T / 64P OPTION
#302063
ALU ADJUSTMENT BALL-BEARING HUB (2)
#309002
SET OF CERAMIC BALL-BEARINGS (14)
#303071
BELT TENSIONER SET
