Xray XB808 User Manual

24
902316
SH M3x16

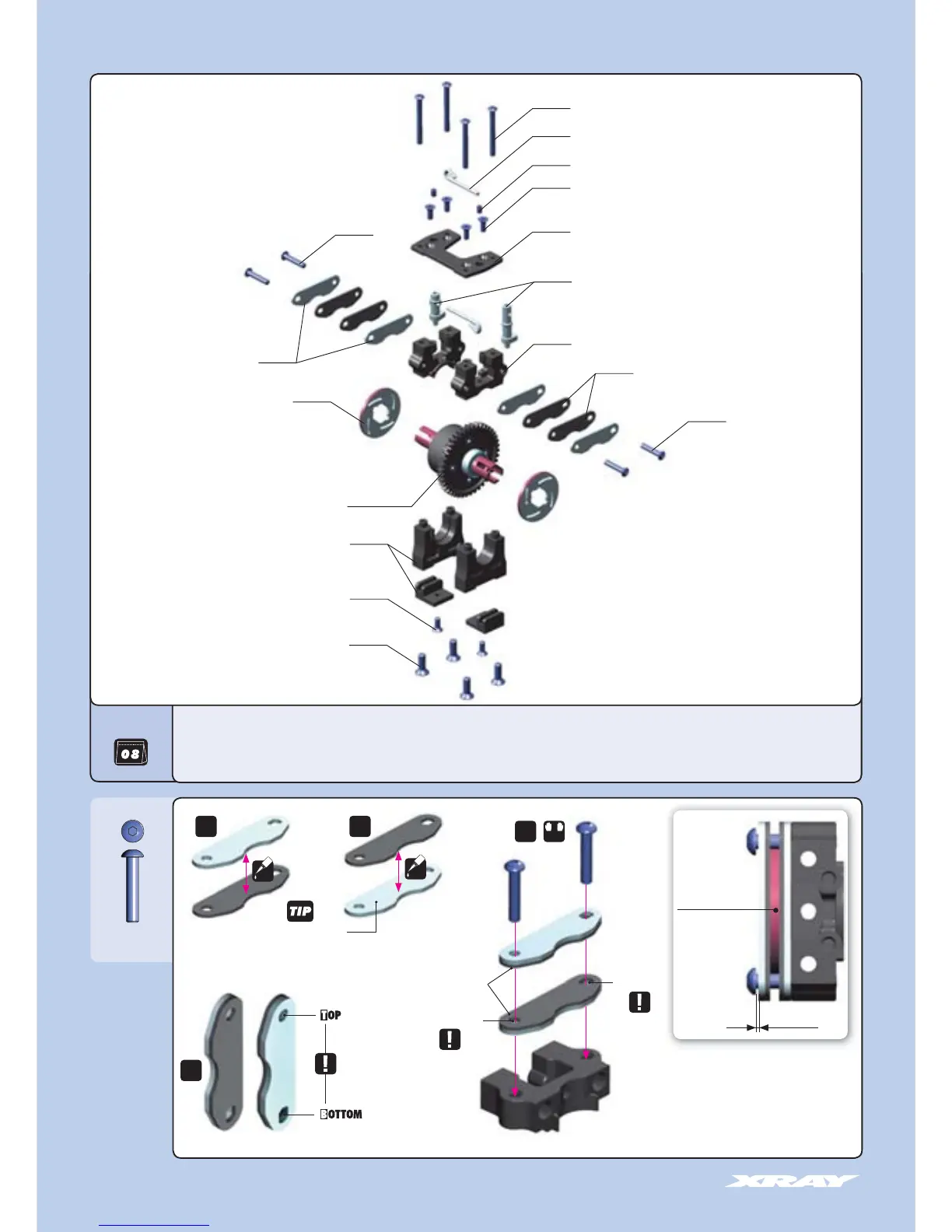

8. CENTER DIFF & BRAKE
2x
CA
Fibre pad
(Ferodo)
BAG
Steel pad
F=R
35 4012 XB808 CENTER DIFF MOUNTING PLATE SET
35 4041 XB808 ALU BRAKE CAM POST & ROD (2+2) HARD COATED
35 4058 XB808 COMPOSITE CENTER DIFF MOUNTING PLATE
35 4110 VENTILATED BRAKE DISK - LASER CUT - PRECISION-GROUND
35 4120 STEEL BRAKE PAD - LASER CUT (4)
35 4130 BRAKE PAD FERODO (4)
90 1304 HEX SCREW SB M3x4 (10)
90 2316 HEX SCREW SH M3x16 (10)
90 2330 HEX SCREW SH M3x30 (10)
90 3308 HEX SCREW SFH M3x8 (10)
90 3412 HEX SCREW SFH M4x12 (10)
Fibre pads together
Temporarily insert
brake disk between
pads to set correct gap
0.5 mm
354120
355011
CENTER DIFF
354110
354130
354041
354058
903308
901304
354041
902330
Roughen steel plates with
sandpaper before gluing
fibre pads
ROUND HOLE
OVAL HOLE
NOTE
ORIENTATION
NOTE
ORIENTATION
354012
902316
354012
903412
902316
CA
Fibre pad
(Ferodo)
Steel pad
NOTE
ORIENTATION
ROUND HOLE
OVAL HOLE
2x
DETAIL
2x 2x
903308
