25
901304
SB M3x4
903308
SFH M3x8
902330
SH M3x30
903412
SFH M4x12
903308
SFH M3x8

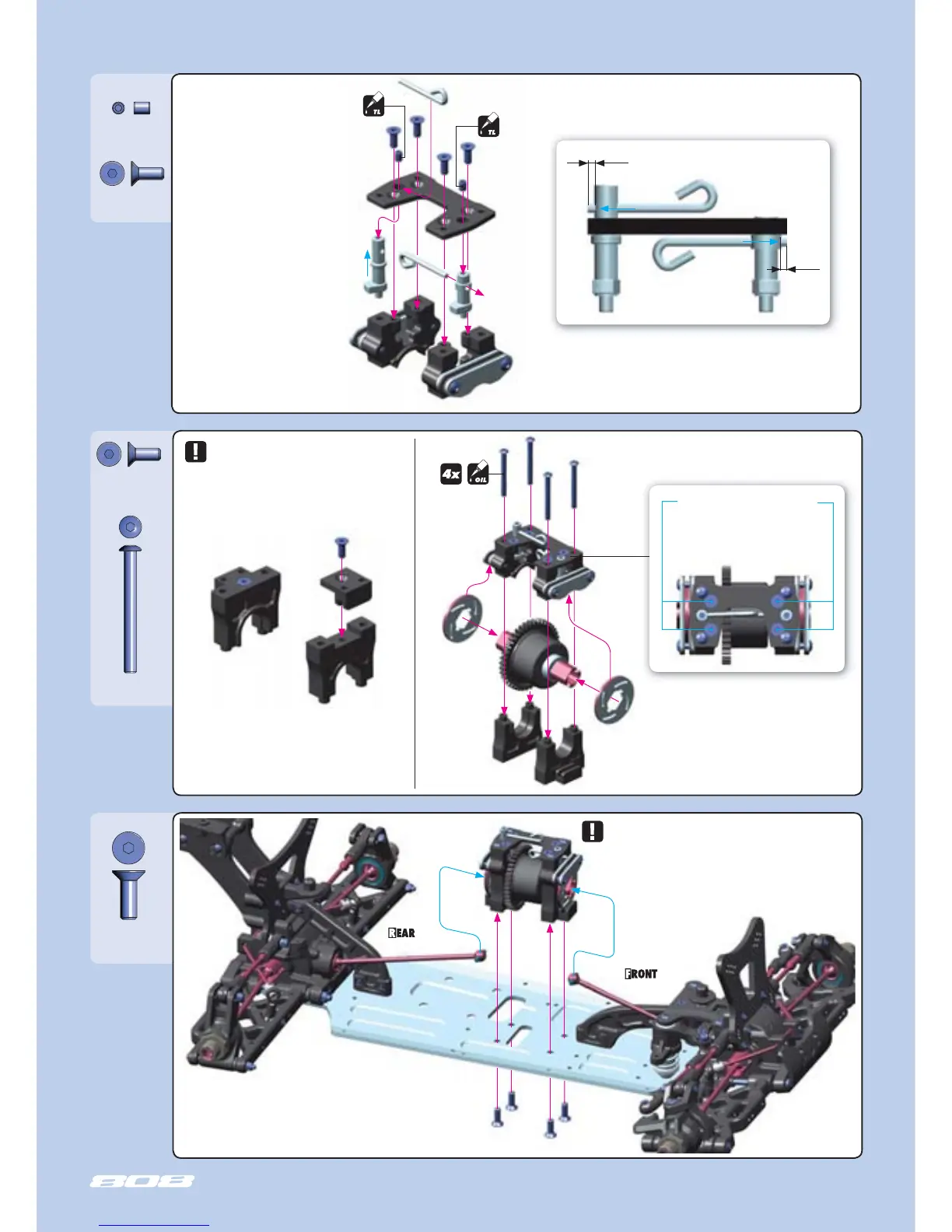

CENTER DIFF & BRAKE
NOTE ORIENT
ATION
Before inserting 3x30 long screws,
loosen the four flat-head screws in
the upper plate by 1/2 turn. Tighten
all screws after assembly
.
1mm
1mm
Insert brake disk
between brake pads
DETAIL
NOTE ORIENT
ATION
OF ALL P
ARTS
24
26
Table of Contents
Safety Precautions
2
Symbols Used
4
Tools Required
4
Equipment Required
4
Very Important
7
Center Differential
8
Front Transmission
10
Rear Transmission
11
Rear Suspension
12
Front Suspension
16
Front & Rear Assembly
20
Radio Case
28
Shock Absorbers
30
Final Assembly
33
Throttle Linkage Adjustment
36
Troubleshooting Guide
38
