Xray XB808 User Manual

26
903310
SFH M3x10
960030
N M3
35 1151 XB808 CHASSIS SIDE GUARDS L+R
35 8526 XB808 CLUTCH BELL 16T WITH OVERSIZED 5x12x4MM BALL-BEARINGS
35 8531 FLYWHEEL
35 8540 FLYWHEEL COLLAR (OPTION)
35 8550 FLYWHEEL NUT - HUDY SPRING STEEL™
35 8561 ALU CLUTCH SHOES - LIGHT 1.71g - CNC MACHINED (3)
35 8585 CLUTCH SPRINGS - HARD (3)
35 8600 FUEL TANK 120CC - SET
35 8680 FUEL TANK MOUNTING POST (2)
35 8685 FUEL TANK MOUNTING GROMMET (4)
35 8711 XB808 ALU ENGINE MOUNT - CNC MACHINED (L+R)
35 8722 EXHAUST WIRE MOUNT SET - LONG
35 9051 XB808 CLUTCH BELL BALL-BEARING 5x12x4 (2)
90 1405 HEX SCREW SB M4x5 (10)
90 2308 HEX SCREW SH M3x8 (10)
90 2316 HEX SCREW SH M3x16 (10)
90 3310 HEX SCREW SFH M3x10 (10)
90 3410 HEX SCREW SFH M4x10 (10)
90 8308 HEX SCREW (CAP HEAD) 3x8 (10)
90 8312 HEX SCREW (CAP HEAD) 3x12 (10)
91 1410 HEX SCREW FLANGED SH M4x10 (10)
96 0030 NUT M3 (10)
96 1025 WASHER S 2.5 (10)
96 2050 WASHER S 5x10x1.0 (10)
96 4073 WASHER S 7x10x0.2 (10)
96 4074 WASHER S 7x10x0.3 (10)
96 4075 WASHER S 7x10x0.5 (10)
BAG
L=R
Follow the order of steps

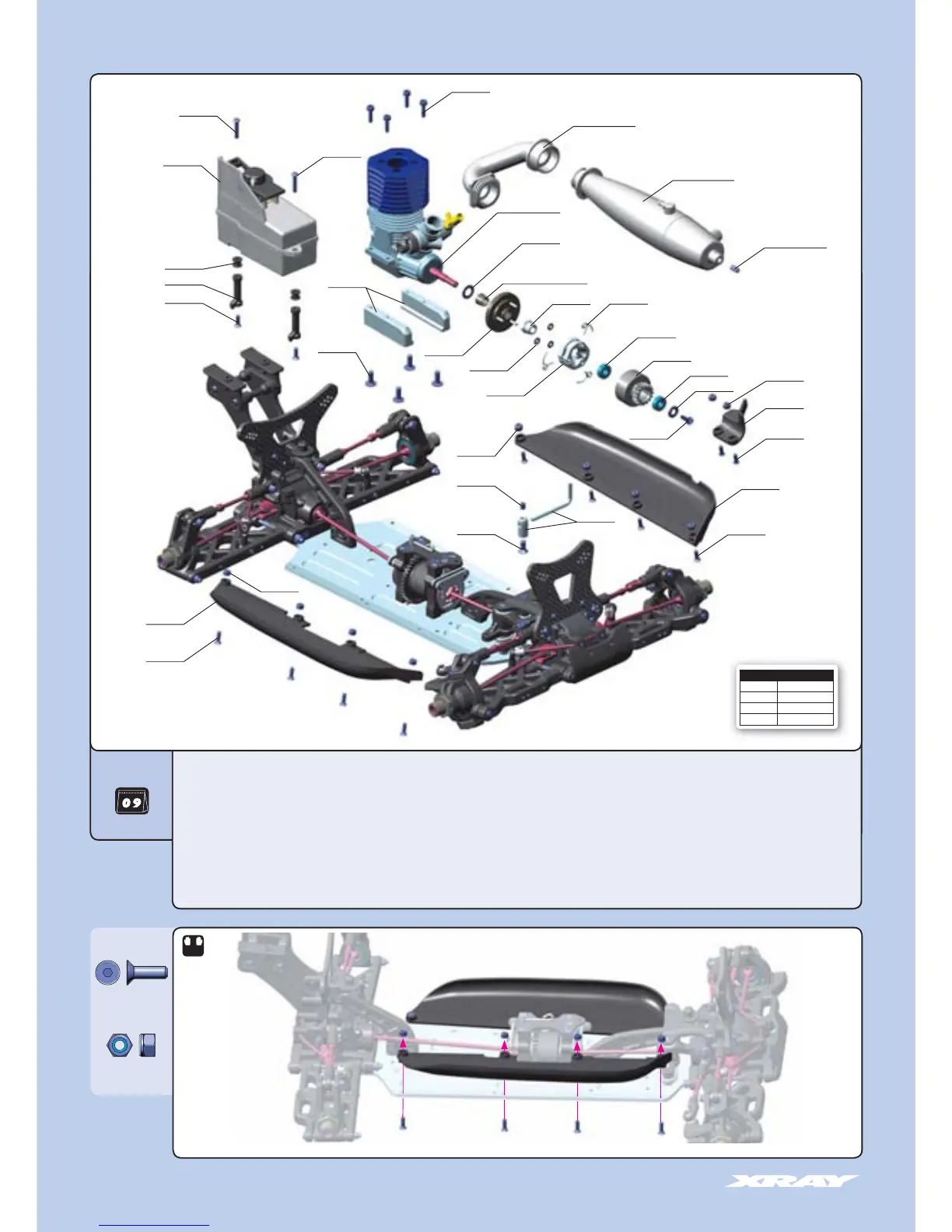

9. FUEL TANK & ENGINE
902316
358600
358685
358680
903310
902316
908312
Manifold
(not included)
Pipe
(not included)
Screw
(not included)
358711
Engine
(not included)
964073
964074
964075
358540 (OPTION)
358550
358585
359051
358526
358531
961025
358561
902308
358722
960030
962050
359051
903410
358722
903310
960030
➊
➋
➊
➋
901405
960030
903310
351151
911410
908308
351151
CLUTCHBELLS
#358525 15T (OPTION)
#358526 16T (STANDARD)
#358527 17T (OPTION)
#358528 18T (OPTION)
