Xray XB808 User Manual

35
903312
SFH M3x12
960030
N M3
902308
SH M3x8
CA
DETAIL
XRAY REAR WING
#353510 White (STANDARD)
#353515 Black
(OPTION)
#353516 Orange (OPTION)
#353518 Pink (OPTION)
#353519 Yellow (OPTION)
XRAY STARBURST WHEELS
#359800 White (OPTION)
#359806 Orange (OPTION)
#359808 Pink (OPTION)
#359809 Yellow (OPTION)

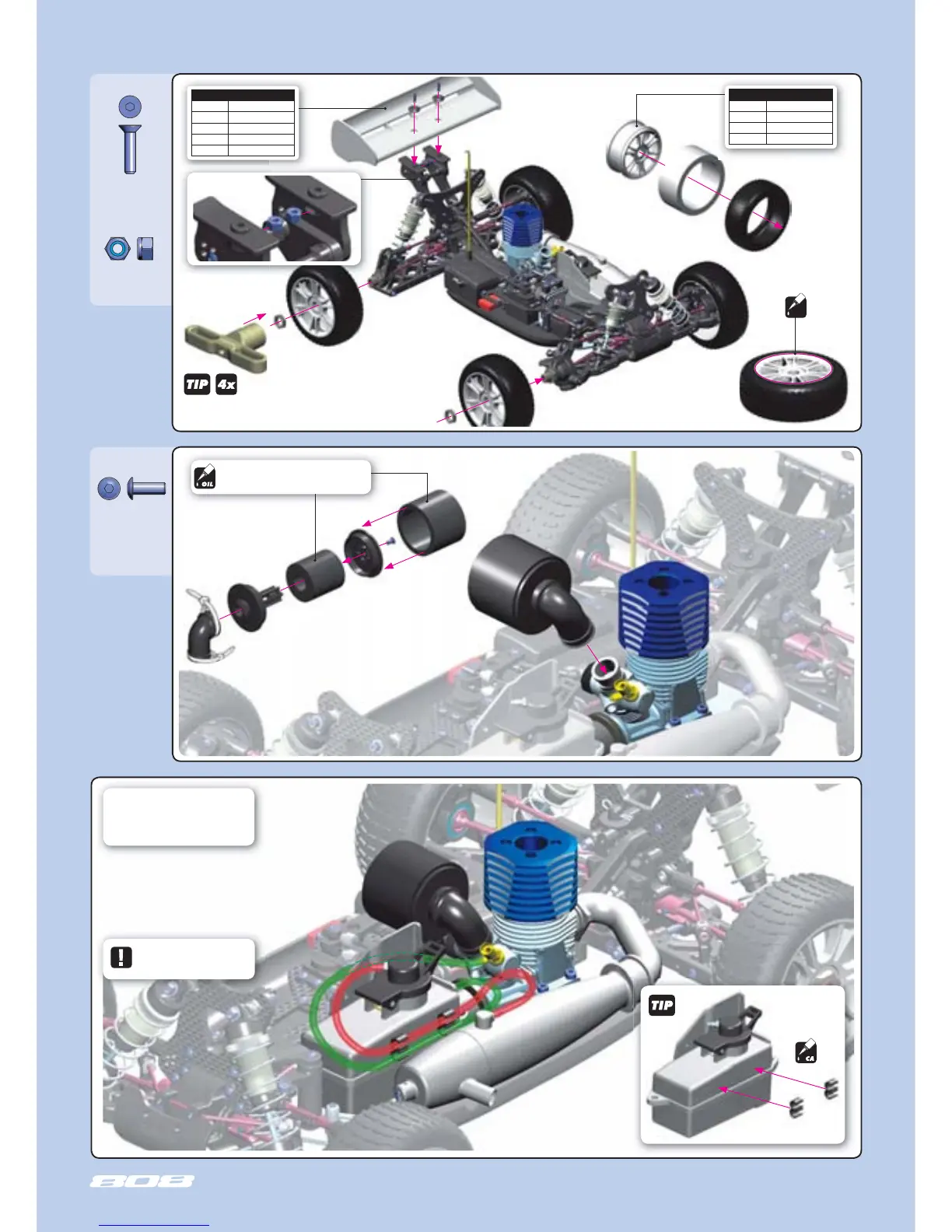

FINAL ASSEMBLY
Cut the silicone tube depending on
engine and muffler. Use the plastic
clips to hold the tubes together.
To tighten the setscrew you can also use HUDY
17mm Wheel Nut Tool #107570
Apply air filter oil and follow the engine
instructions to service the air filter.
SILICONE TUBE MARKED AS
GREEN = FROM FUEL TANK TO CARBURETOR
SILICONE TUBE MARKED AS
RED = FROM MUFFLER TO FUEL TANK (TOP)
Keep fuel line away from
bell and flywheel.
