Xtool D7 User Manual

21
⚫ READ ECU INFORMATION
This function is to read ECU version information, which is the equivalent
of "System Identification" or "System information in some electronic
control systems, all mean to read ECU related software and hardware
versions, models and production date of diesel engine, part number, etc.
It is convenient for us to make a record in the maintenance process, and
it also makes data feedback and management easier.

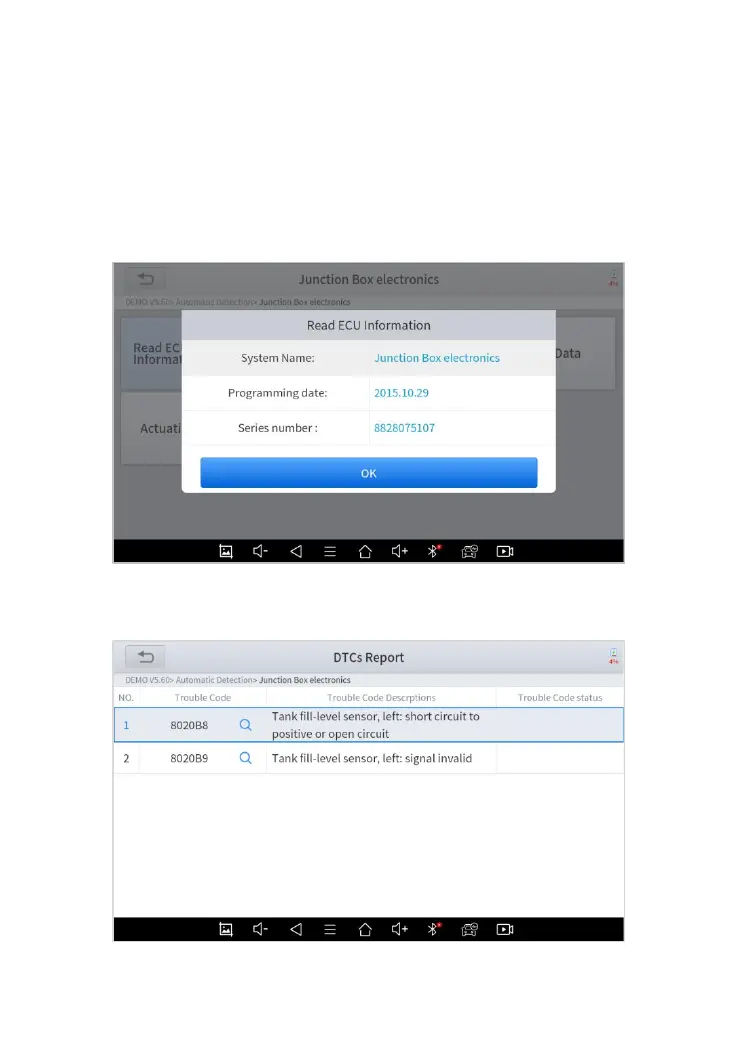

Figure 4-8 Sample of ECU Information
⚫ READ TROUBLE CODE

Xtool D7 Specifications

General

Tab	ble 1-1 Specification
Item	Description
Operating System	Android
Processor	Quad-core 1.6GHz Processor
Sensors	Gravity sensor, light sensor
Memory	32GB
Display	7.0-inch touch screen with 1024 × 600 resolution
Connectivity	 USB  Wi-Fi
Auto Input/Output	Microphone, dual speakers, 4-band 3.5mm stereo/standard headset jack
Power and Battery	4000mAh, 3.7V lithium-polymer battery
Power Voltage	5V
Power Consumption	8W
Operating Temperature	-20 to 60℃(-4 to 140℉)
Storage Temperature	-40 to 70℃(-40 to 158℉)
Humidity	<90%

Weight and Dimensions

Dimension (LWH)	21815029mm
