Xtool D7 User Manual

20
Automatic Detection will automatically identify the vehicle's VIN code,
and then read the information of your target diagnostic object. If you
choose "Manual selection", then you can continue to select the vehicle
brand, year, and model of the vehicle in the sub-menu to diagnosis the
vehicle. Enter "System Selection", you can also diagnose the vehicle
according to the system according to your needs after selecting the
model.
DIAGNOSIS FUNCTIONS
Diagnostics functions supported by D7 Smart Diagnostics System are
as below::
⚫ Read ECU Information
⚫ Read/Clear Trouble Code
⚫ Read Live Data
⚫ Actuation Test (Bi-Directional Control)
⚫ Freeze Frame
⚫ Special functions

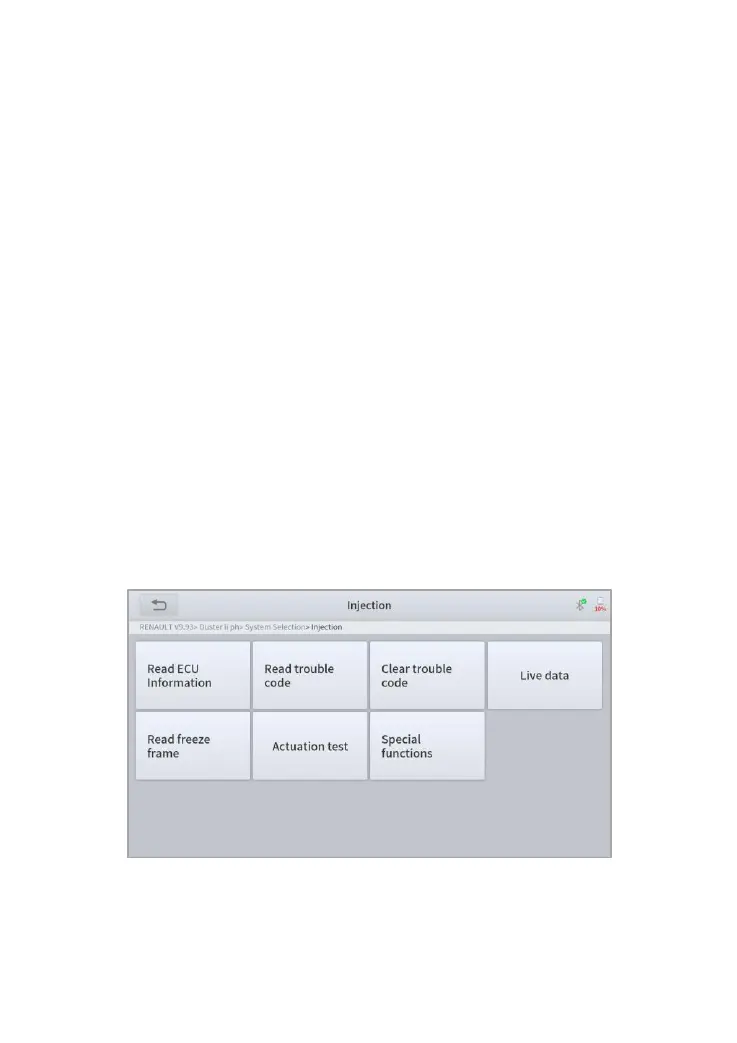

Figure 4-7 Sample of Diagnosis Functions

Xtool D7 Specifications

General

Tab	ble 1-1 Specification
Item	Description
Operating System	Android
Processor	Quad-core 1.6GHz Processor
Sensors	Gravity sensor, light sensor
Memory	32GB
Display	7.0-inch touch screen with 1024 × 600 resolution
Connectivity	 USB  Wi-Fi
Auto Input/Output	Microphone, dual speakers, 4-band 3.5mm stereo/standard headset jack
Power and Battery	4000mAh, 3.7V lithium-polymer battery
Power Voltage	5V
Power Consumption	8W
Operating Temperature	-20 to 60℃(-4 to 140℉)
Storage Temperature	-40 to 70℃(-40 to 158℉)
Humidity	<90%

Weight and Dimensions

Dimension (LWH)	21815029mm
