Xtool D7 User Manual

7

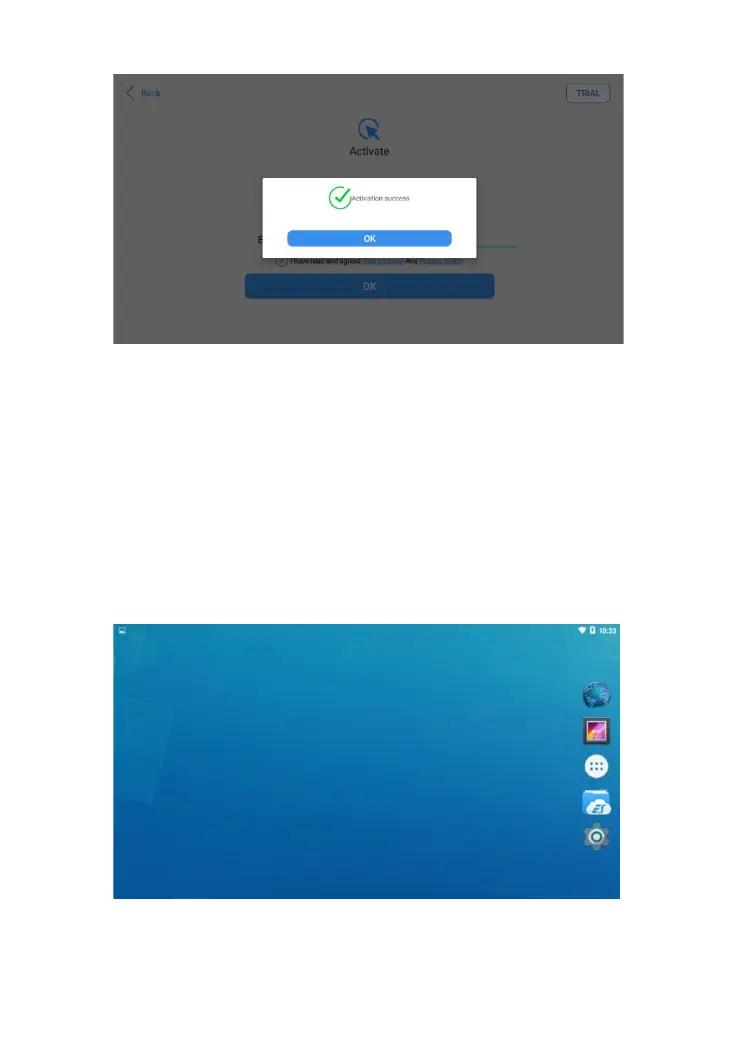

Fig 2-4 Sample of Activation Succussed
MAIN INTERFACE
OPERATION SYSTEM
As shown in the figure below, this interface is the main page of the operating
system of the device. You can also return to this interface at any time by
clicking 【󰌮󰌯󰌰󰌱󰌲󰌳󰌴】on the bottom navigation bar.
Fig 2-5 Sample of Android system home page

Xtool D7 Specifications

General

Tab	ble 1-1 Specification
Item	Description
Operating System	Android
Processor	Quad-core 1.6GHz Processor
Sensors	Gravity sensor, light sensor
Memory	32GB
Display	7.0-inch touch screen with 1024 × 600 resolution
Connectivity	 USB  Wi-Fi
Auto Input/Output	Microphone, dual speakers, 4-band 3.5mm stereo/standard headset jack
Power and Battery	4000mAh, 3.7V lithium-polymer battery
Power Voltage	5V
Power Consumption	8W
Operating Temperature	-20 to 60℃(-4 to 140℉)
Storage Temperature	-40 to 70℃(-40 to 158℉)
Humidity	<90%

Weight and Dimensions

Dimension (LWH)	21815029mm
