Xtool D7 User Manual

1
1. GENERAL INTRODUCTION
The XTOOL D7 smart diagnostic system is an advanced flatbed scanning
tool based on the Android operating system. It supports multi-language
switching and is suitable for different countries and regions. The advantage
of this obd2 scanner is not only its comprehensive functions, including
complete system Diagnostic, all obd2 functions, various reset functions
(IMMO / EEPROM adapter / EPB (Electronic Parking Brake) reset / oil light
reset / SAS (Steering Angle Sensors) reset / TPS (Throttle Position Sensor)
matching / Injector coding / ABS (Anti-block system) bleed / gearbox
matching / gear learning / electronic pump actuation / disable transport
mode / SRS (Supplemental Restrgint System) reset / exhaust post-
processing / BMS matching / air suspension / cylinder / TPMS reset / tire
refit / headlight adjustment / windows Initialization/seat matching/DIY mode)
can also achieve faster and more accurate Diagnostic.

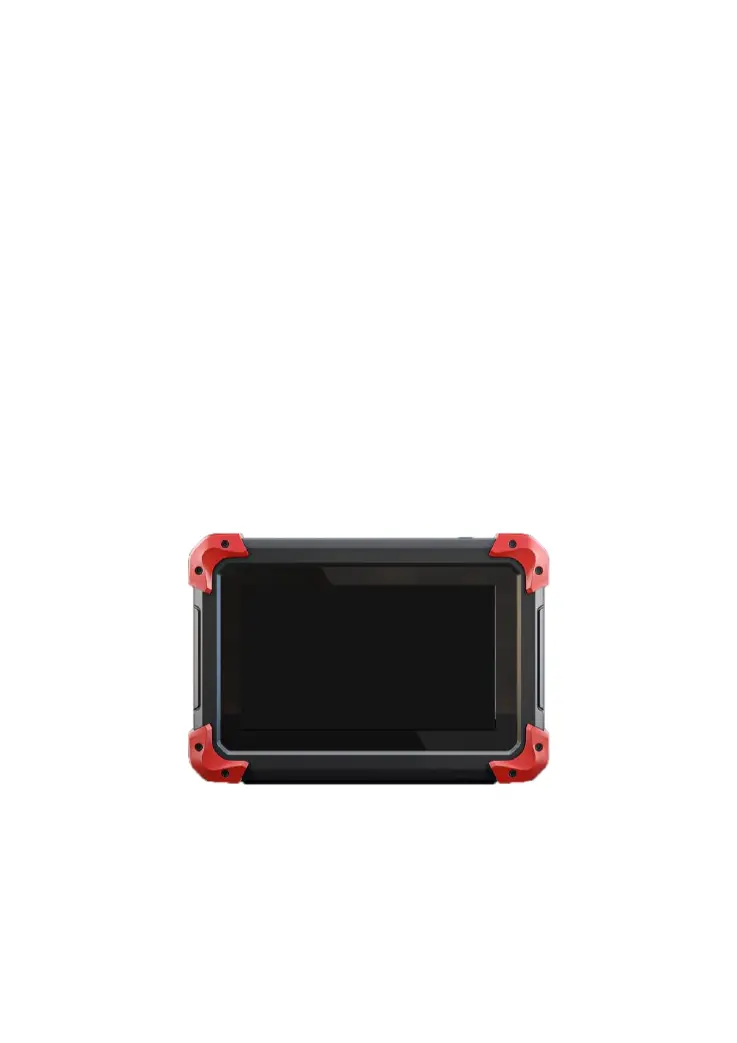

FRONT VIEW OF TABLET
Fig 1-1 Sample of Tablet Front View
The front of the main unit is a touchable display screen, you can use your
fingers to operate on the screen to complete the car diagnosis.

Xtool D7 Specifications

General

Tab	ble 1-1 Specification
Item	Description
Operating System	Android
Processor	Quad-core 1.6GHz Processor
Sensors	Gravity sensor, light sensor
Memory	32GB
Display	7.0-inch touch screen with 1024 × 600 resolution
Connectivity	 USB  Wi-Fi
Auto Input/Output	Microphone, dual speakers, 4-band 3.5mm stereo/standard headset jack
Power and Battery	4000mAh, 3.7V lithium-polymer battery
Power Voltage	5V
Power Consumption	8W
Operating Temperature	-20 to 60℃(-4 to 140℉)
Storage Temperature	-40 to 70℃(-40 to 158℉)
Humidity	<90%

Weight and Dimensions

Dimension (LWH)	21815029mm
