Xtool IP819TP - Vehicle Connectivity; VEHICLE CONNECTION

7
Click OK to enter the diagnostic system and start using the device.
VEHICLE CONNECTION
IP819TP must be connected to the vehicle’s OBD-II port so that the tablet can establish correct vehicle communication
when doing diagnosis process. Please perform the following steps:
 Connecting via Bluetooth:
1 Turn on the tablet and make sure the Bluetooth is on
2 Take the VCI box and plug it in the OBD2 port of the vehicle
3 Switch on the ignition and tap on the Diagnostic application to start processing.

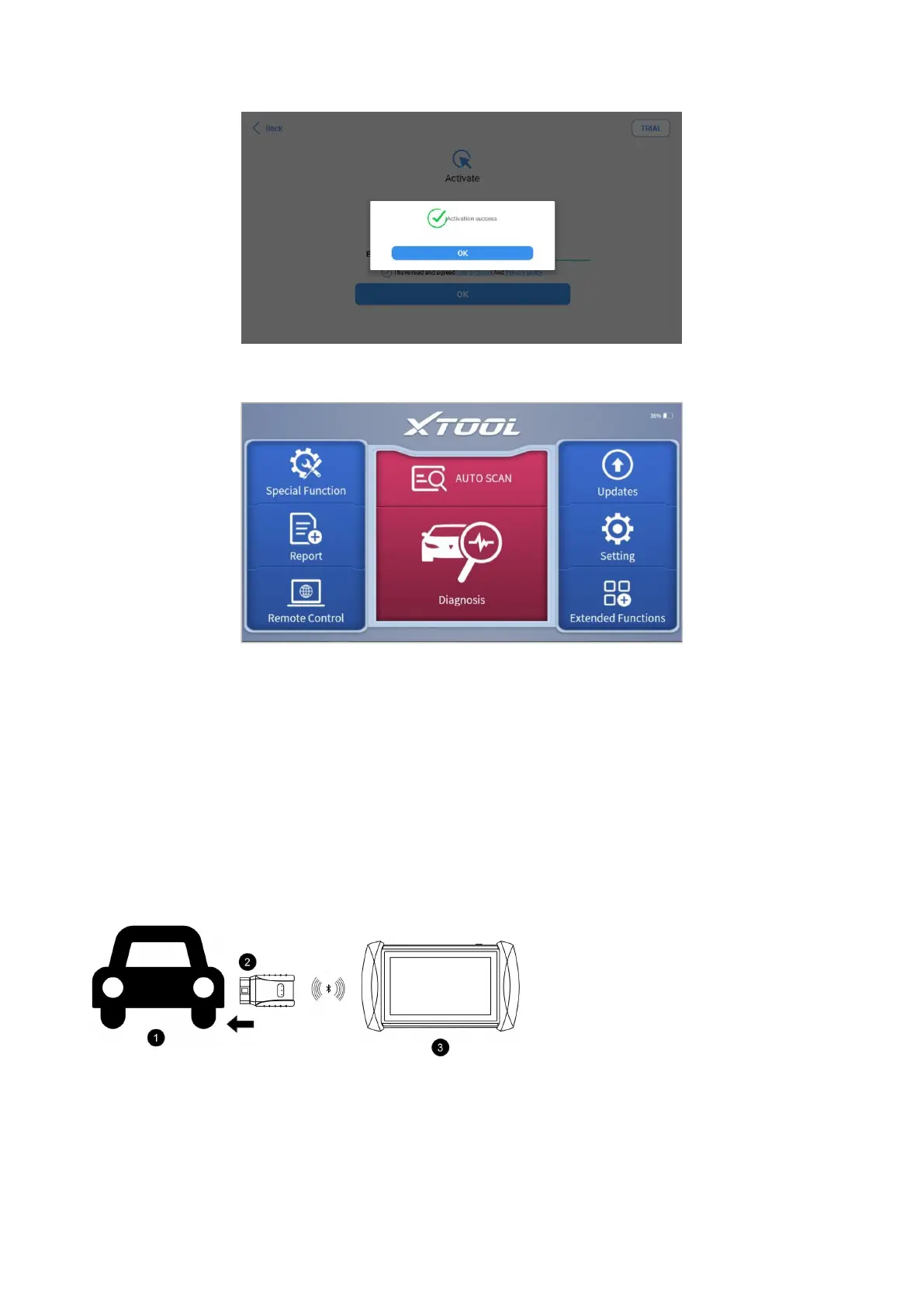

The connection method is shown in the figure below:
 Connecting via cable:
1 Turn on the tablet
2 Take the VCI box and plug it in the OBD2 port of the vehicle
3 Connect the VCI box and the tablet with the USB Type-B to USB 3.0 cable
1. Vehicle
2. VCI
box
3. Tablet
