5.5 Configuration Options
The VESDA VLI device dialogue provides a range of configuration options. These settings are stored in the
onboard memory of the detector, therefore any change made using Xtralis VSC which can be viewed on a
VESDAnet will be visible on a programmer, and vice versa.
The following sections provide detector configuration based on using the Xtralis VSC software. Information
on using the LCDProgrammer is contained in the LCDProgrammer Product Guide.
5.5.1 General Options
General options include some basic identification and Ethernet connectivity information for the detector.

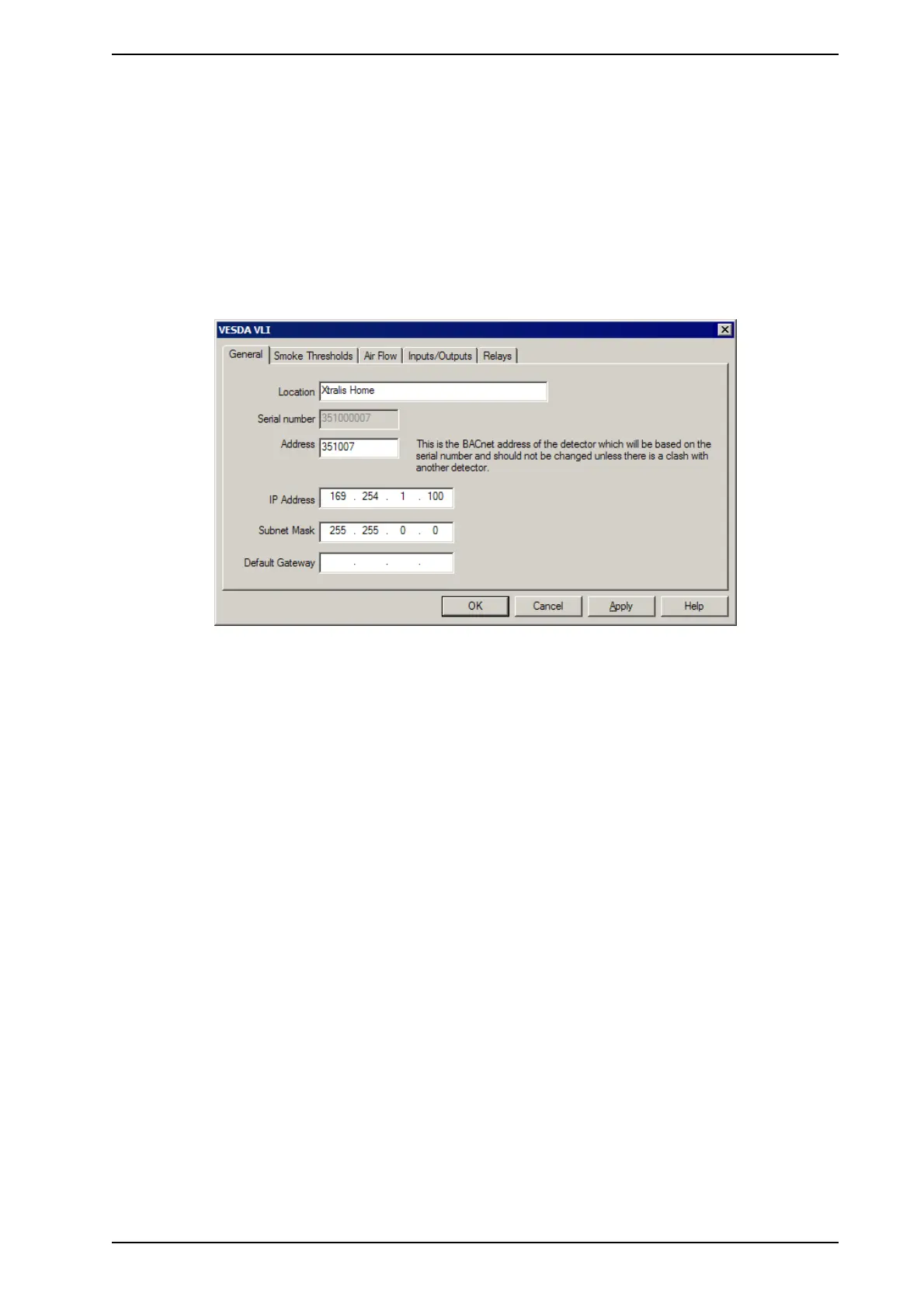

Figure 5-11: General Options
The General configuration options are as follows:
Location
A description of the physical location of the device.
Serial Number
The serial number of the device. This is factory set and cannot be changed.
Address
This field is contains a unique BACnet address. It is based on the serial number and should not be changed.
IP Address
The IP address of the detector, for use with Ethernet connections. This address must be used when creating a
connection profile for the detector in Xtralis VSC.
The default IPaddress is 169.254.1.100. This allows direct connection between a PC or Laptop and the
VESDA VLI using a standard Ethernet lead.
Prior to connecting the detector to a router or other gateway device, the default address must be changed to
an address in the range used by the router. This can be done by connecting to the detector via USBor via
Ethernet with a standard Ethernet lead.
Subnet Mask
The subnet mask for the device and broker addresses.
Default Gateway
The IPaddress of the router or other gateway device that is servicing the network.
