7.3 Replacing the Intelligent Filter
The detector constantly monitors the difference between the flow of filtered and un-filtered air into the
manifold. The flow of filtered air decreases when compared to that of un-filtered air as dirt and other particles
accumulate in the Intelligent Filter. Although it is recommended to replace the Intelligent Filter every two
years, environmental conditions dictate the actual frequency of Intelligent Filter replacement.
The detector reports a fault condition that requires replacement of the Intelligent Filter when the flow of filtered
air falls below the minimum threshold when compared to the flow of un-filtered air.
Remove the Intelligent Filter
1. Set the detector to Standby mode. Refer to Section 7.1 for further information.
2. Remove the front cover. Refer to Section 7.2 for further information.
3. Unclip the Intelligent Filter (A) by pulling the locking lever outward (B).
4. Remove the Intelligent Filter.

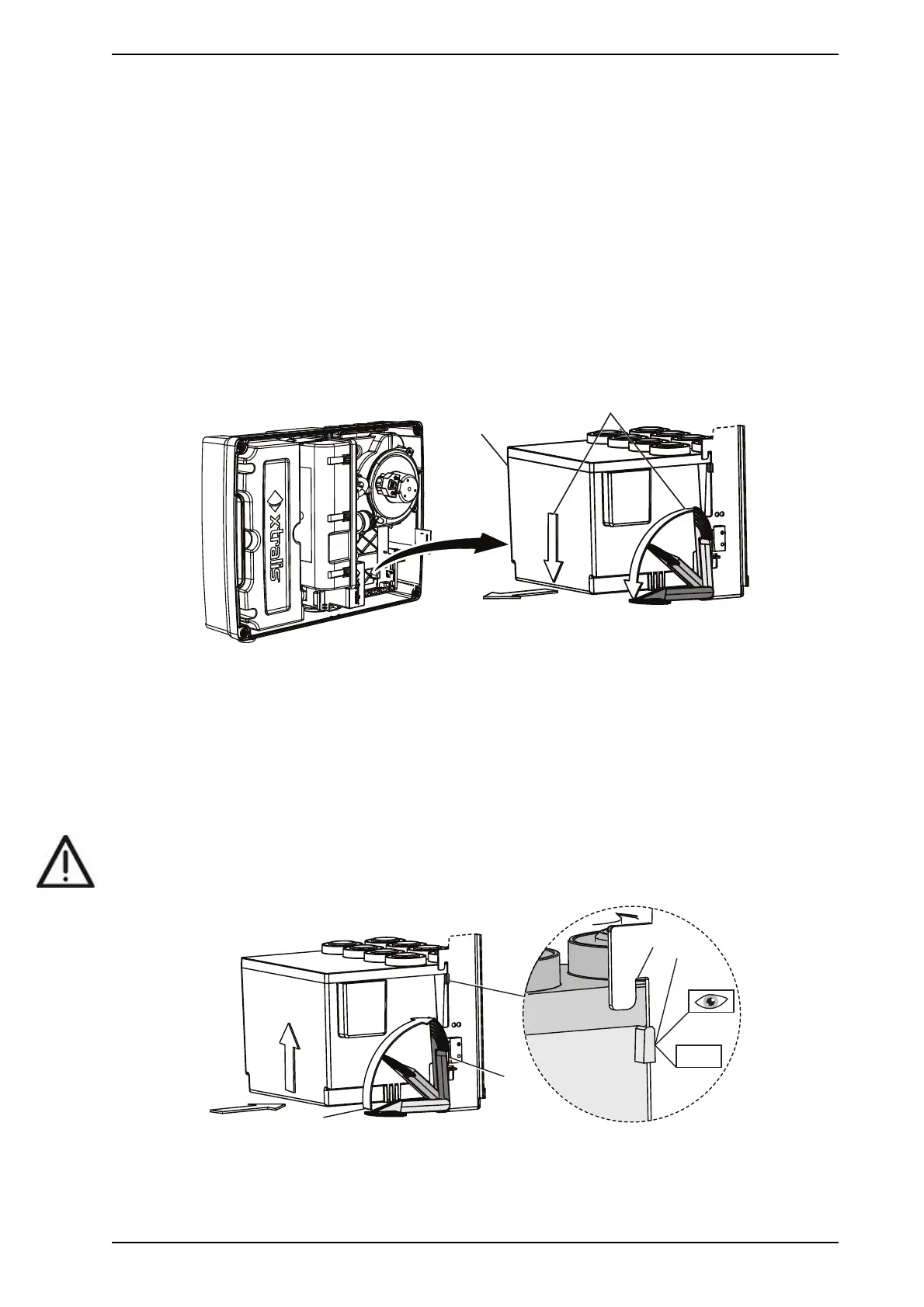

Figure 7-2: Intelligent Filter Removal
Reinstall the Intelligent Filter
1. Position the Intelligent Filter inside the detector, aligning the locking tabs (A) to the slots (B).
2. Push the locking lever in the direction of arrow (C) until it clicks into the locked position and the Intelligent
Filter Present Switch (D) is actuated.
3. Execute the "Reset Intelligent Filter Life" command using Xtralis VSC. Refer to Section 5.4 for further
information on this command.
Caution: Do not reinstall a used filter.
Figure 7-3: Intelligent Filter Installation
