VESDA by Xtralis VESDA VLI Product Guide
www.xtralis.com 33
5 Configuration
The VLIdetector is configured using Xtralis VSCsoftware installed on a direct or network connected PC.
The following information is provided in this chapter:
l how to connect to a standalone detector
l how to connect to a detector on an Ethernet network
l how to connect to a detector on a VESDAnet
l access levels
l commands
l configuration options
l relay options
l GPI functions
l default settings
5.1 Connecting to a Standalone VESDA VLI Detector
Once physical connectivity has been established (refer to Section 3.2.3), the Xtralis VSC software can
connect to the VLI detector using one of a range of communication protocols. Connection methods must be
defined and saved for future use within the Connection Manager in Xtralis VSC.
To define a connection to a standalone VLI detector connected via USBor Ethernet, follow this procedure:
1. Select Connection | Manager from the menu system.
The Connection Manager dialog is displayed.

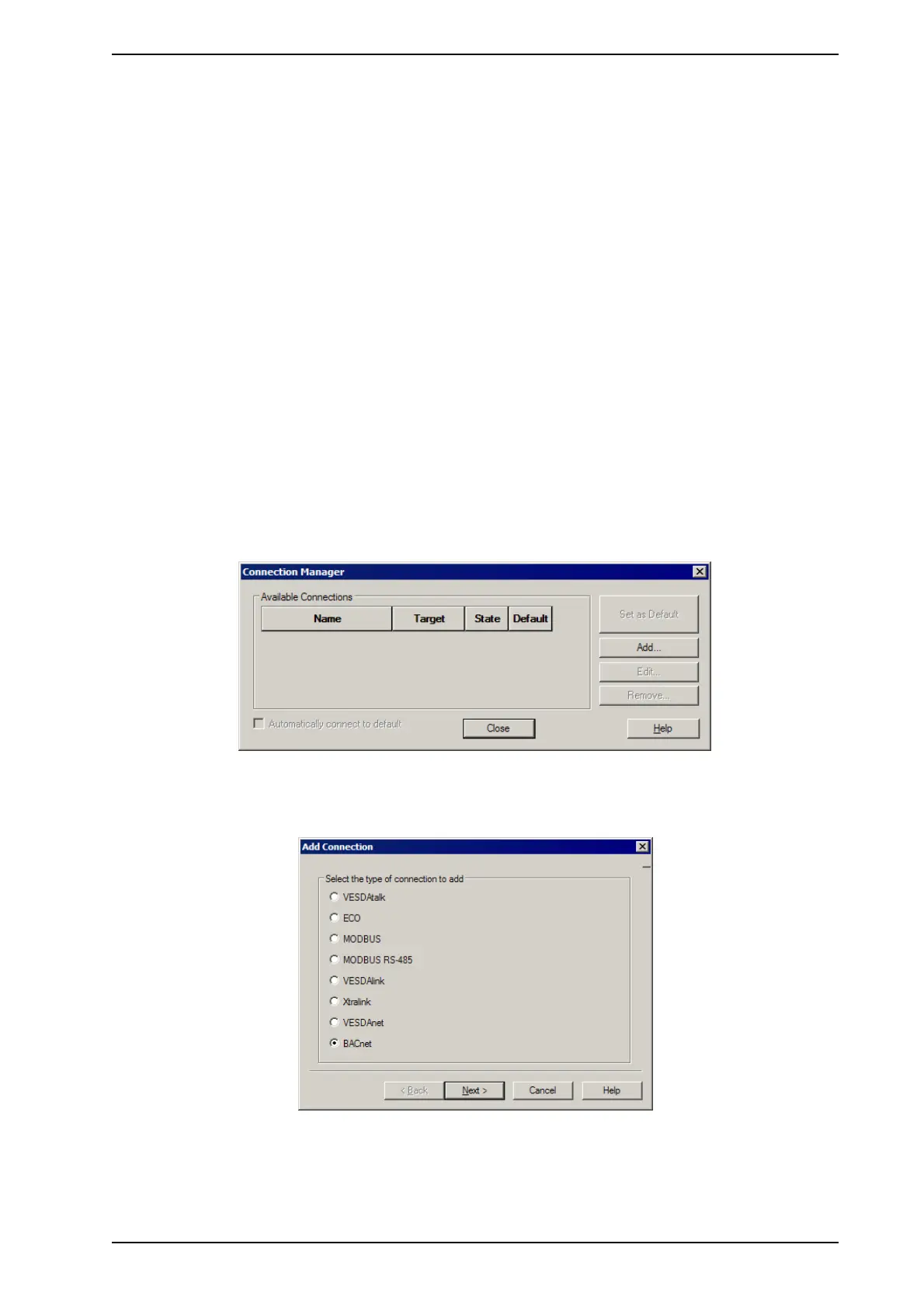

Figure 5-1: Connection Manager
2. Select Add.
The Add Connection dialog is displayed.
Figure 5-2: Add Connection
3. Select the BACnet connection option, then select Next.
To Next Page
