3.8 Filters

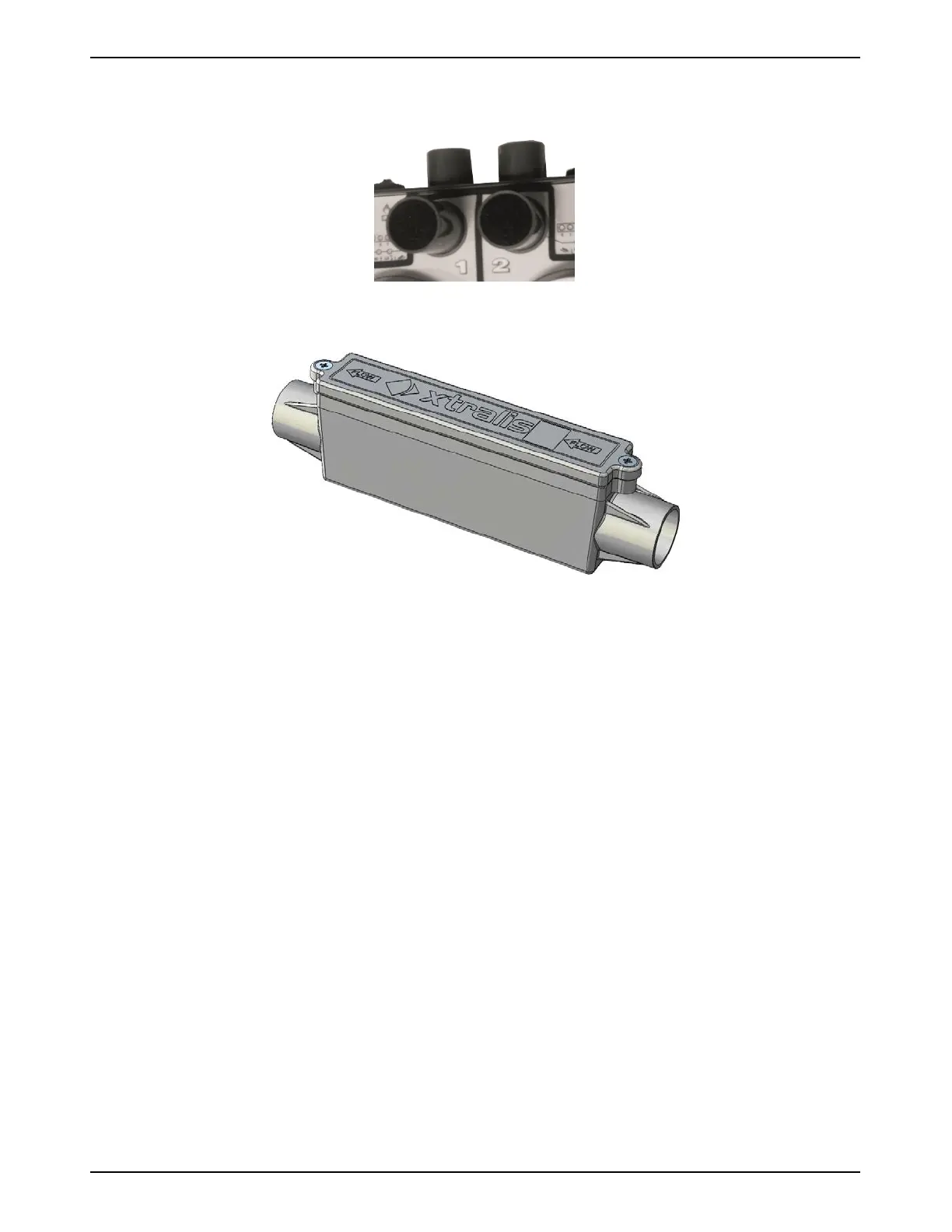

Figure3-4: Filter at inlet of system
The sampled air is passed through a filter (order code 02-FL53) before entering the detector chamber.
Figure3-5: Inline Filter
Additional filtration of sampled air may be required in harsh environments. Refer to the Xtralis Inline Filter Application
Note (17785) for further information.
