Xtralis XAS-2-US - Detector Installation

2 Detector Installation
The XAS-2-US is provided with the following components:
l 1 detector enclosure
l 1 corner stud key
l 1 blanking baffle
l 1 ferrite core
l 1 installation sheet with mounting template
l 1 product guide
Check all components for damage and refer any concerns to your authorized representative.
It is necessary to procure the following additional items:
l Appropriate point detectors. Refer to Section 2.3.1 on page 11 for further information.
l Appropriate baffle for the selected point detector. Refer to Section 2.3.2 on page 14 for further information.
l Screws and inserts for the mounting bracket appropriate for the installation location.
E
A
C
H
F
D
B
G
Legend
A Intake from Pipe Network 1
B Intake from Pipe Network 2
C Terminal Block
D Point Detector 1
E Point Detector 2
F Airflow
G Wiring Enclosure
H Exhaust

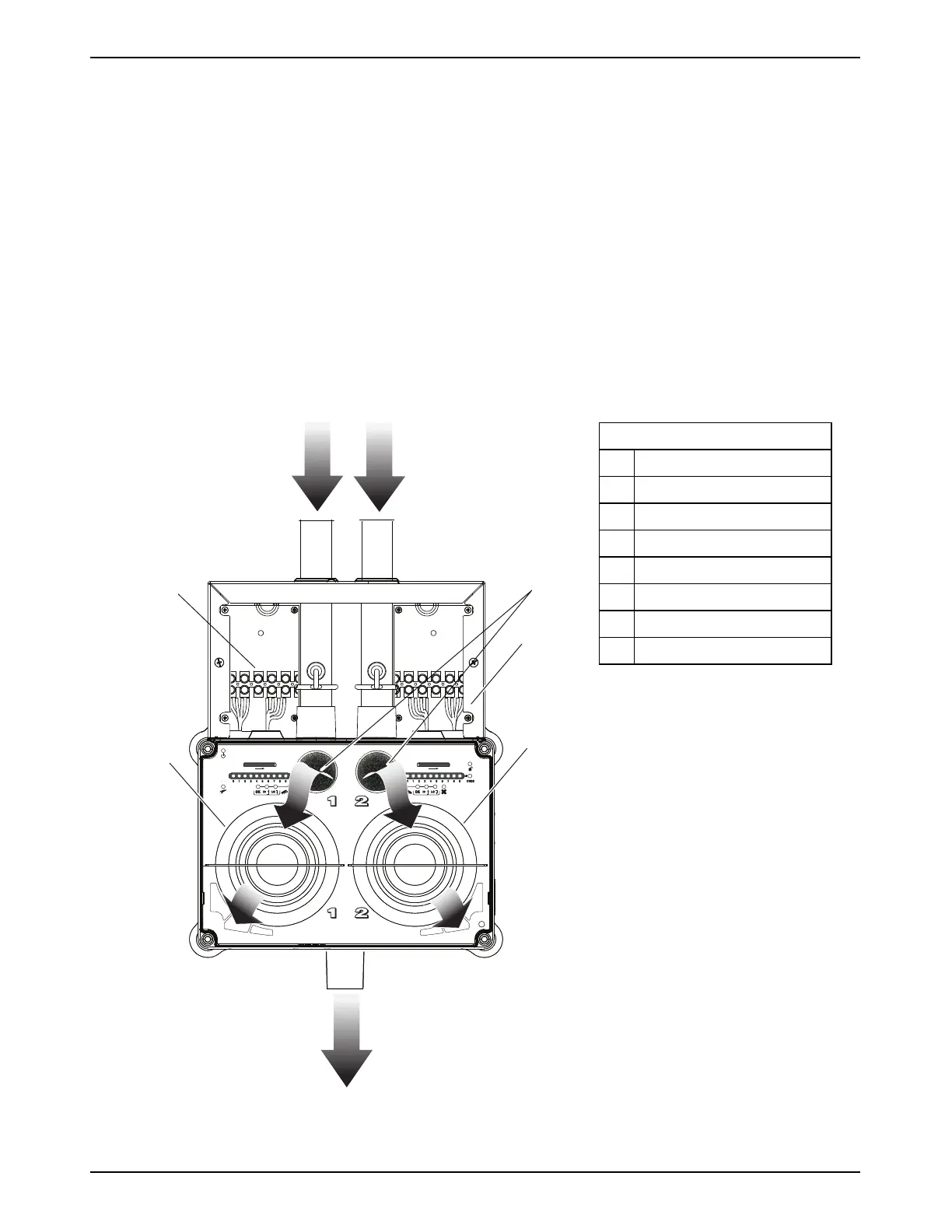

Figure2-1: Detector Enclosure
