4 Configuration
4.1 Display Functions

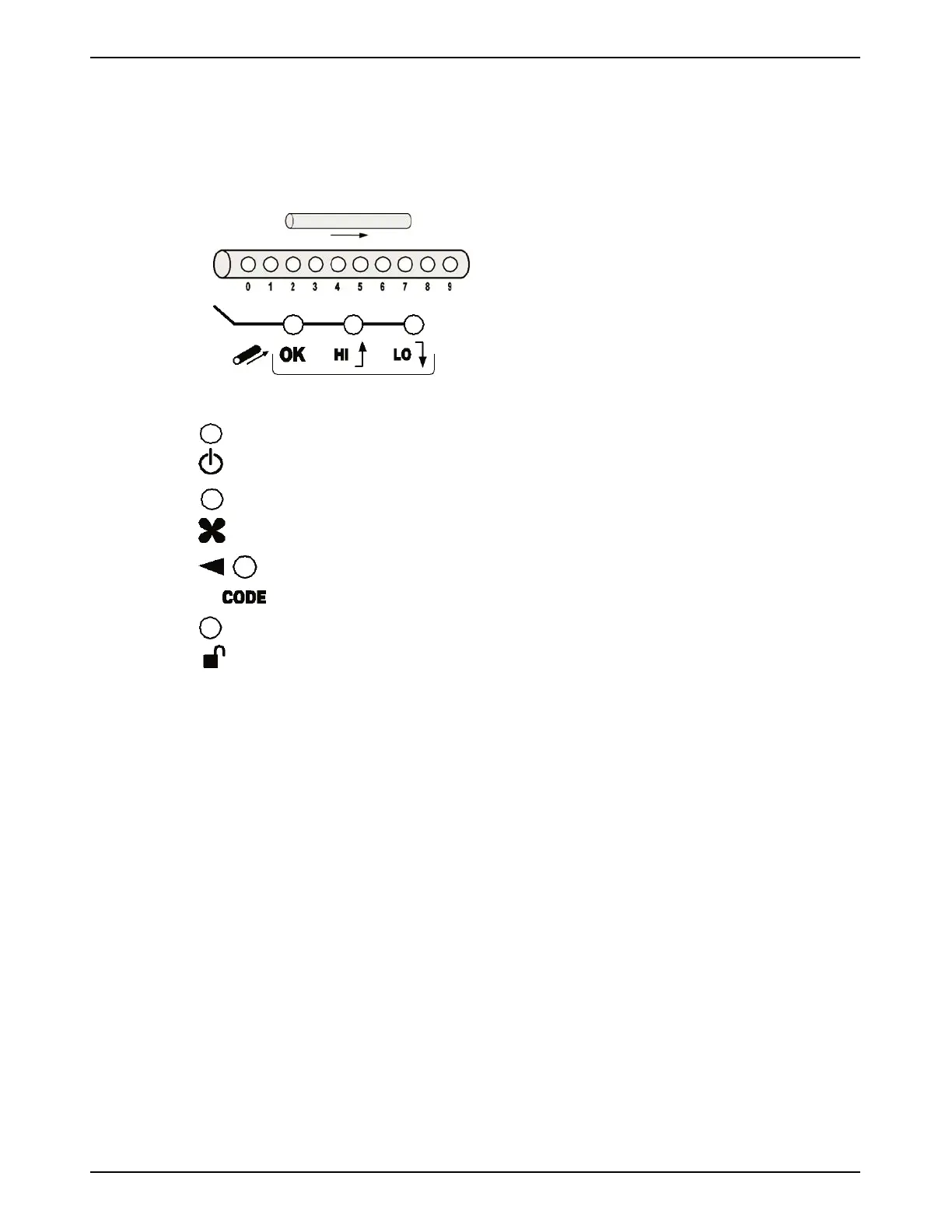

Each channel has the following functional LEDs.
1 BARGRAPH of AIRFLOW SPEED
2, 3,
4
AIRFLOW OK, HIGH AIRFLOW, LOW
AIRFLOW
The following LEDs are common to both channels.
5 POWER ON
6 FAN FAULT
7 CODE ENTRY
8 UNLOCK
Note: Other indicators present on the system display are not used with this product.
