3.10 Duct Applications
Although flexible tubes are typically used in duct installations, CPVC pipes may also be used together with flexible
tubes. The total length of the flexible tube and CPVC pipe must not exceed the specified maximum length. Refer to
Chapter "Specifications" on page45 for further information.
A
H
G
N
O
M
C
B
T
E
L
S
I
J
P
D
F
Q
R
Optional Water Trap
components
K
Legend
A Air Duct
B Sampling Probe
C Exhaust Pipe
D Duct Probe / Pipe Mounting
Plate
E Airflow direction
F Duct Probe / Pipe Elbow
Connector
G Inlet Flexible Tube
H Exhaust Flexible Tube
I Horizontal Water Trap Pipe
J Vertical Water Trap Pipe
K Vertical Inlet Pipe
L Horizontal Inlet Pipe
M Electrical Conduit
N Detector Enclosure
O Exhaust Port
P Exhaust Port Pipe
Q Threaded 90 degree elbow
reduced adaptor
R Flexible Tube to Threaded
Elbow Connector
S Ball Valve
T Clear Water TrapPipe

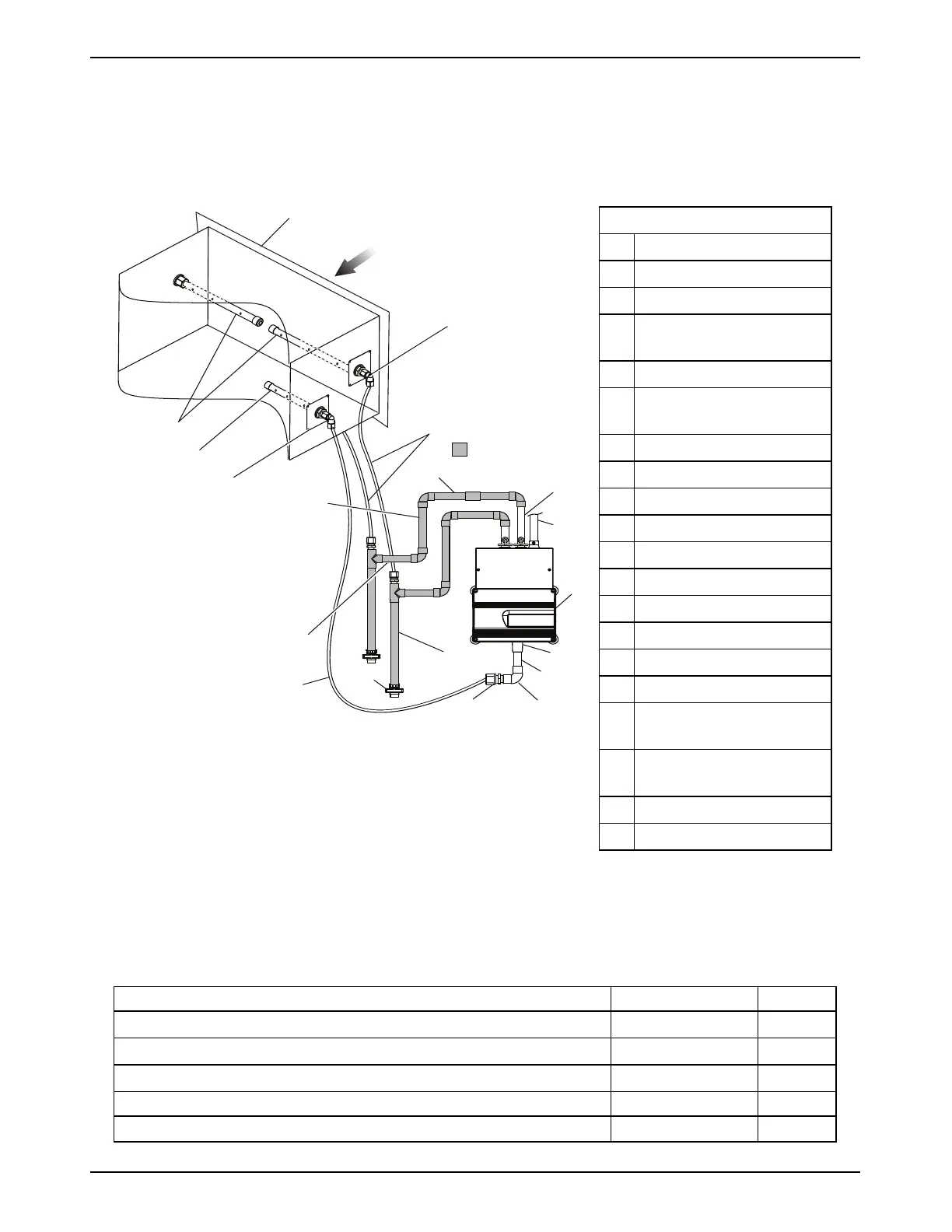

Figure3-8: Example of a Duct Application with Water Trap
Note: If the optional Water Trap is fitted, connect the Flexible Tube to the CPVC Pipe Connector, otherwise
connect it directly to the Vertical Inlet Pipe.
Table3-5: Duct Application Parts List
Name Part Number Quantity
XAS-2-US XAS-2-US
1
Duct Installation Kit LF42243
1
Female Elbow for elbow of duct probe LF42203
3
Male Connector for inlet pipe and exhaust pipe LF42204 3
Reducer / Adaptor for inlet port LF42205 2
