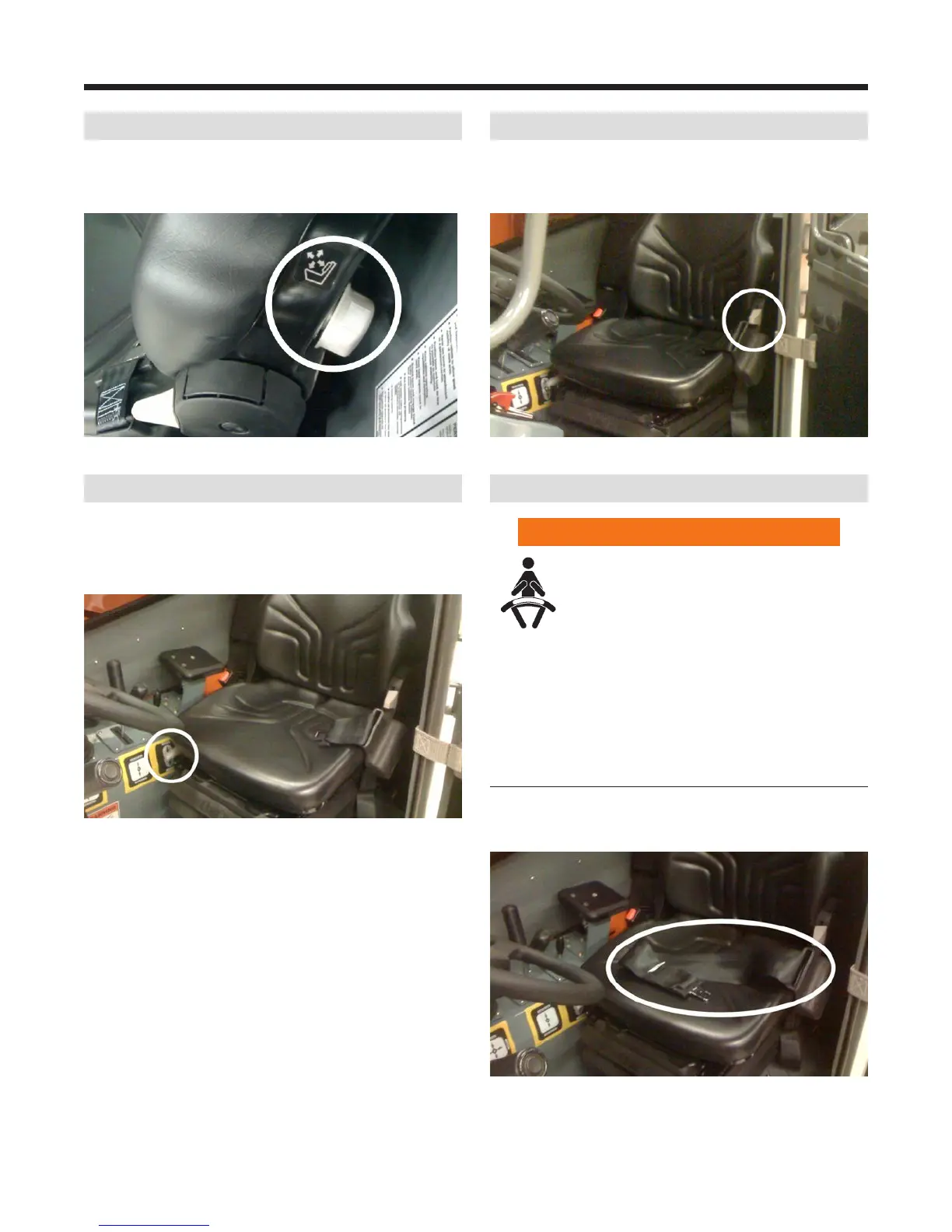

Page 36 Xtreme Manufacturing, LLC
Operator Cab XR1255
Lumbar Support
The seat controls include a 4 position lumbar support
knob. Rotate the lumbar support knob to raise, lower,
increase, or decrease the lumbar support.
Figure 6-10. Lumbar Support.
Fore and Aft Adjustment Lever
Pull the fore and aft adjustment lever outward from the
seat to release the seat lock. Slide the seat forward or
backward to a comfortable location and release the lever
to lock the seat in the desired position.
Figure 6-11. Fore and Aft Adjustment Lever.
Backrest Angle Adjustment Lever
Pull the backrest angle adjustment lever up to release the
seat backrest lock. Adjust the angle of the backrest and
release the lever to lock the backrest to the desired angle.
Figure 6-12. Backrest Angle Adjustment Lever.
Seat Belt
Warning
Always check the condition of the seat belt
and mounting hardware before operating
the forklift. If the seat belt or mounting
hardware is defective, it may not properly
restrain the operator, which could result in death or
serious injury.
• DO NOT operate the forklift until the seat belt or
mounting hardware is replaced, if worn or damaged.
• The seat belt MUST be worn while operating the
forklift. Failure to wear the seat belt could result in
death or serious injury.
The reach forklift is equipped with a three inch (3”) wide
retractable seat belt.
Figure 6-13. Retractable Seat Belt.
