For information call (800) 497-1704 Page 69
XR1255 Operation
For example:
1. The operator determines load weight and makes
sure load does not exceed fork, attachment, or boom
capacity.
The load is 6000 pounds (2721 kg).
2. The operator safely moves the load to a loading
position:
• places forks under load
• tilts and raises load safely
• fully retracts boom
• drives forklift to position perpendicular to structure
• lowers outriggers and levels forklift
3. The operator determines height of structure where
load is to be placed.
The structure height is 30 feet (9 meters) from ground
level.
4. The operator determines distance from front tires
where load will be placed.
The distance in front of forklift where load will be
placed is 20 feet (6 meters).
5. Operator reads load capacity chart for attachment
carriage to learn it will be safe to place the load at any
boom angle with the boom extend letter “E” showing.
XR1255 LOAD CHART OUTRIGGERS DOWN - STANDARD CARRIAGE
P/N 17251-000
THE REAR AXLE M UST
BE LOCKED AND THE
OUTRIGGERS FIRMLY
AGAINST THE GROUND.
LOAD RATINGS
SHOWN ARE FOR
VEHICLES EQUIPPED
WITH FOAM FILLED
TIRES ONLY.
6,000 LBS AT
24 IN MIN
CAPACITY FORK
(12,000 LBS PAIR).
35
50
65
25
68
35
30
25
20
15
10
5
40
45
50
0
55
35
30
25
20
15
10
5
0
40
60
45
0
55
60
20
15
10
30
40
45
5
5
H
G
F
E
D
B
C
A
H
F
B
E
D
C
A
G
6,800 LBS
5,000 LBS
4,000 LBS
8,500 LBS
10,000 LBS
3,000 LBS
12,000 LBS
2.0 FT
LOAD
CENTER
2.0 FT
LOAD
CENTER

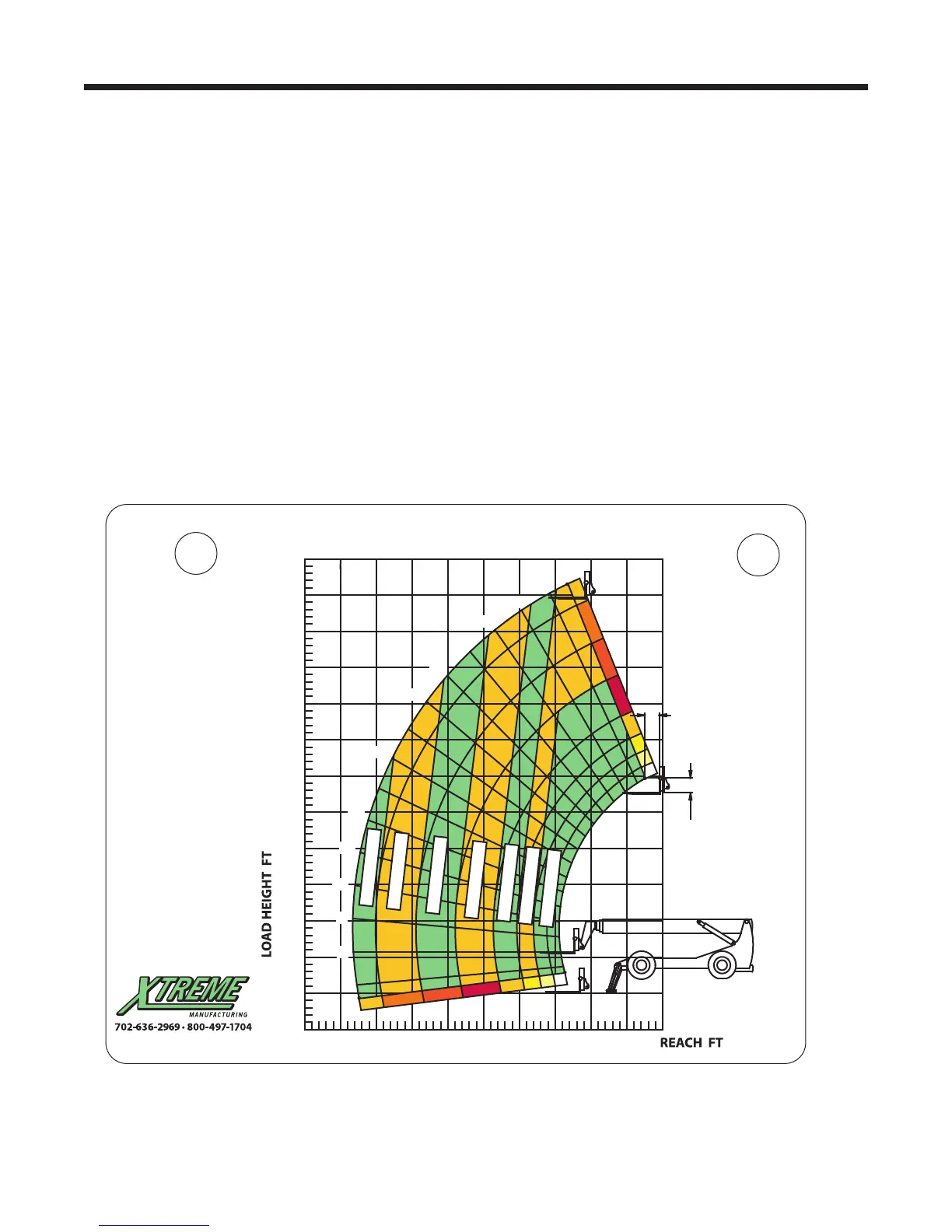

Figure 7-40. Standard Carriage Load Capacity Chart
Standard Carriage Load Capacity Chart
