Xtreme XR1255 User Manual

For information call (800) 497-1704 Page 39

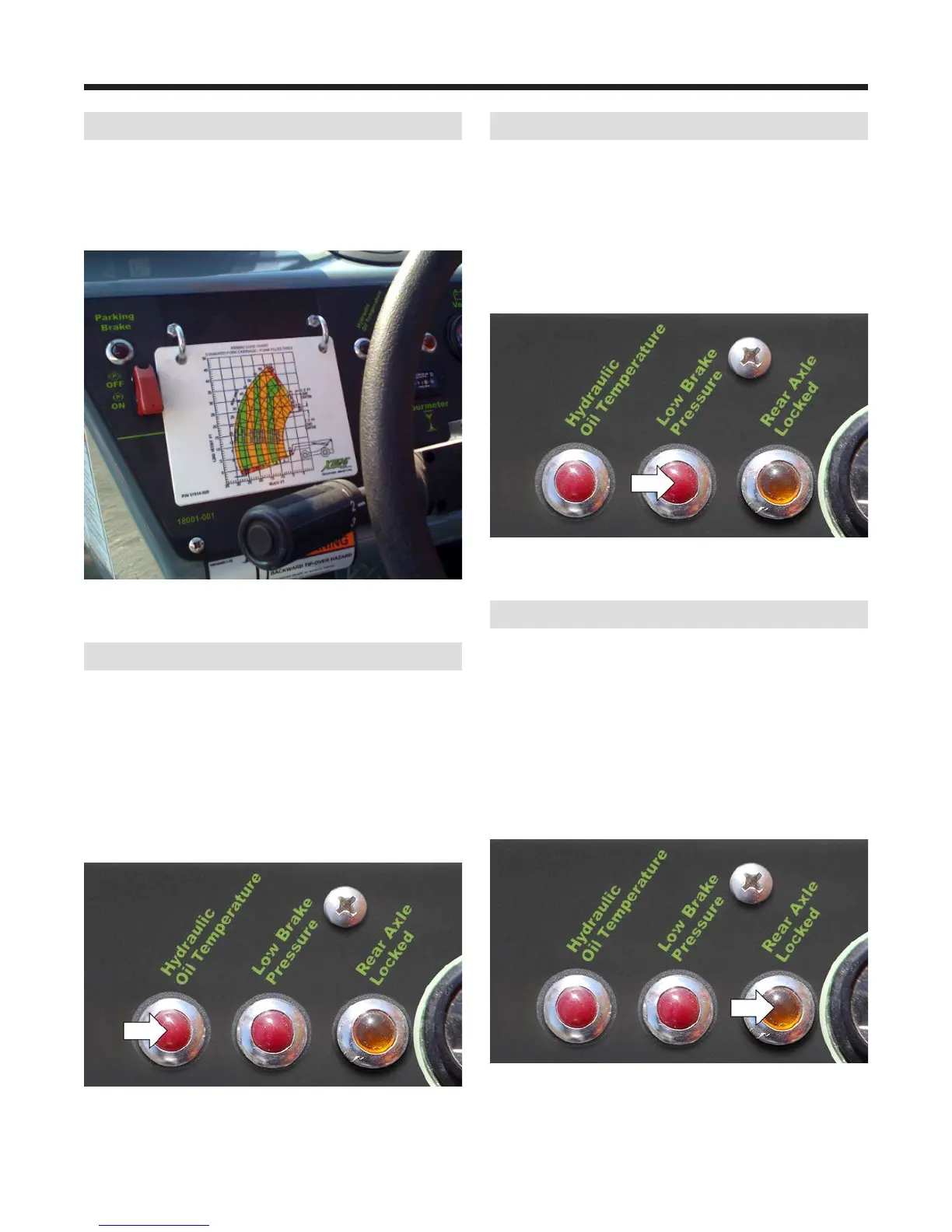

XR1255 Operator Cab
Load Capacity Charts
Load capacity charts are located on the left side of the
front control panel. Load capacity charts are provided to
assist the operator in determining how to safely handle
loads with the reach forklift, including boom angle, height,
and reach.
Figure 6-19. Typical Load Capacity Chart.
Hydraulic Oil Temperature Indicator
The hydraulic oil temperature indicator illuminates when
the oil temperature is above 180°F (82°C).
If the hydraulic oil temperature indicator illuminates,
stop and idle the engine to allow time for cooling. If the
hydraulic oil temperature indicator does not go out after
ve (5) minutes, stop the forklift, follow proper shut down
procedures, tag the forklift with “Do Not Operate” tags,
and have a qualied mechanic service or repair the forklift
BEFORE placing it into service again.
Figure 6-20. Hydraulic Oil Temperature Indicator.
Low Brake Pressure Indicator
The low brake pressure indicator illuminates if the
hydraulic brake oil pressure gets low.
If the low brake pressure indicator is illuminated, do not
release parking brake or engage transmission until light
is out. If light does not go out, stop the forklift, follow
proper shut down procedures, tag the forklift with “Do Not
Operate” tags, and have a qualied mechanic service or
repair the forklift BEFORE placing it into service again.
Figure 6-21. Low Brake Pressure Indicator.
Rear Axle Lock Indicator
The rear axle lock indicator illuminates when the forklift
is in the axle lock mode. The rear axle locks when the
parking brake is set to ON (engaged), or the transmission
is in NEUTRAL or the service brake is applied, and when
the boom is above 40°.
If the rear axle lock indicator does not illuminate, stop
the forklift, follow proper shut down procedures, tag the
forklift with “Do Not Operate” tags, and have a qualied
mechanic service or repair the forklift BEFORE placing it
into service again.
Figure 6-22. Rear Axle Lock Indicator.
