XR1255 Operator Cab
Warning
The reach forklift includes a Frame Sway
Override switch. Improper use of the
Frame Sway Override switch could cause
death, serious injury, or property damage

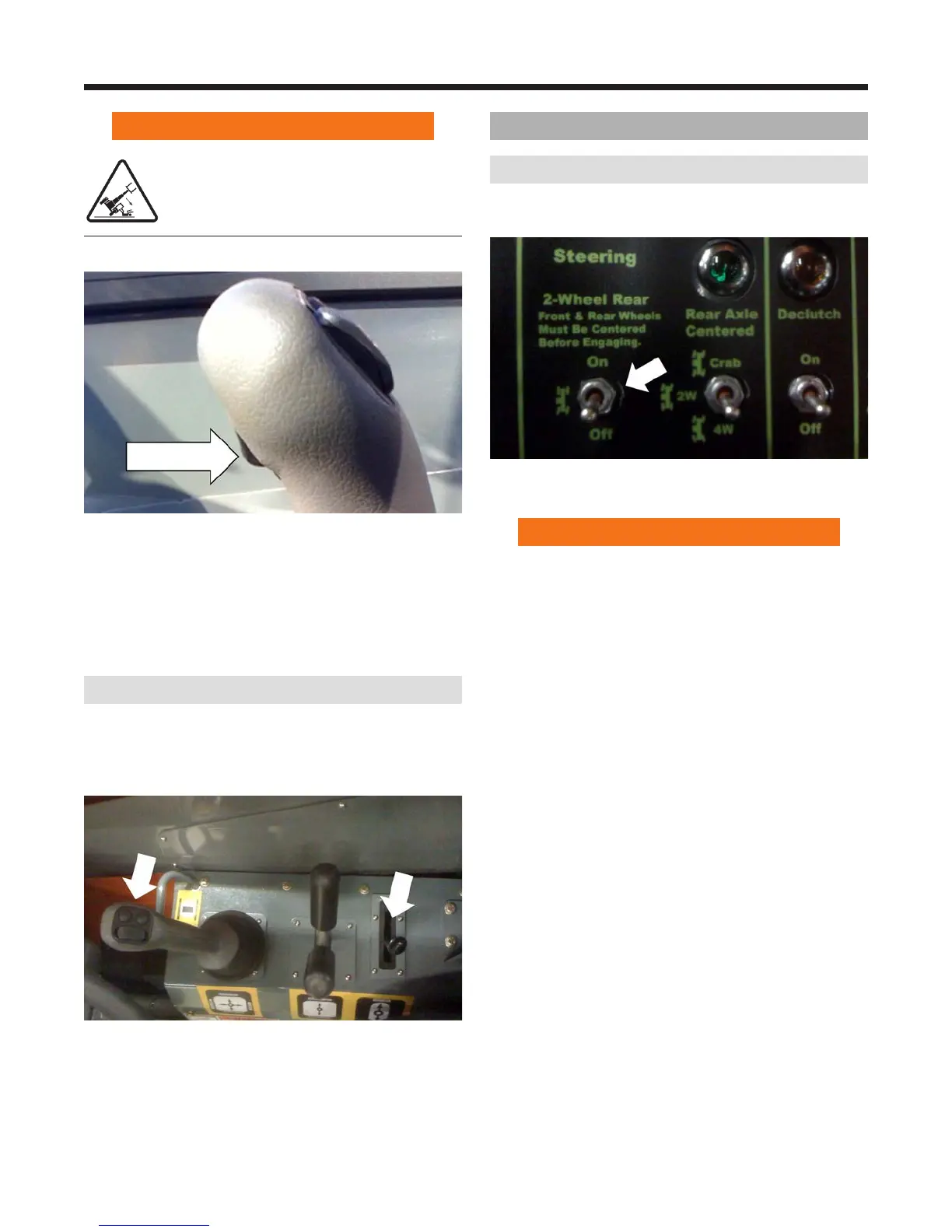

Figure 6-38. Frame Sway Override Switch.
The frame sway feature becomes locked and will not
operate when the boom is raised 40° or more. Pressing
the Frame Sway Override switch (the trigger) on the
control handle will override the lockout feature and allow
slow frame sway.
Auxiliary Attachment Control
The auxiliary attachment control lever controls the
functions of approved optional attachments that can
be mounted to the forklift and require hydraulic supply
for operation.
Figure 6-39. Auxiliary Attachment Control Lever.
Optional Controls and Indicators
Two Wheel Rear (2WR) Steering Switch
A Two Wheel Rear (2WR) Steering switch is used to engage
and disengage the optional rear wheel steering feature.
Figure 6-40. Two Wheel Rear (2WR) Steering Switch.
Warning
DO NOT change steering modes until the forklift slows
or comes to a complete stop. Align all four (4) wheels
perpendicular to the axle, before changing steering
mode. Changing steering modes at higher travel
speeds can make the forklift unstable, and cause a loss
of control, which could result in death, serious injury,
or property damage.
