Operation XR1255
Starting Travel
Warning
Use proper safety procedures and avoid
hazardous situations while operating the
forklift to prevent death, serious injury, or
property damage.
• Check the work site for any hazards before operating
the forklift.
• Check the work surface for loose soil conditions and
overhead power lines.
Warning
To prevent death or serious injury,
the operator must be seated with seat
belt fastened, the travel select lever
set to NEUTRAL, the Parking Brake
ON (engaged), and the area free of people and
obstructions BEFORE starting the forklift.
1. Start the forklift. Refer to the Starting Forklift section
in this manual.
2. Apply service brake.
3. Release parking brake.
4. Rotate the gear select switch to the gear desired.
5. Move the travel select lever to FORWARD or REVERSE
for the appropriate direction of travel.
6. Release the service brake pedal.
7. Slowly press the accelerator pedal to start travel.
Shifting Gears
Warning
DO NOT shift through multiple gears with
a single turn of the gear select lever. Allow
the engine speed to slow down before
shifting to the next lower gear. Improper
use of the gear select lever could cause transmission
damage or forklift tip over/roll over and could result in
death or serious injury.
The transmission has four (4) gears that can be used for
traveling in forward or reverse.
To shift gears rotate the gear select lever to the next gear
while the forklift is traveling.
• Use rst gear (1) for highest torque and pulling power.
• Use higher gears for higher ground speed.
• Never travel in fourth gear (4) when carrying a load.
• Allow the engine speed to slow down before shifting to
a lower gear.
Warning Indicators and Gauges
Warning
Check warning indicators and gauges
on the dash panel frequently during
operation. If a warning indicator is
illuminated or a gauge shows abnormal
readings, stop the forklift, follow proper shut down
procedures, tag the forklift with “Do Not Operate”
tags, and have a qualied mechanic service or repair
the forklift BEFORE placing it into service again.
Ignoring warning indicators can cause improper
performance, which could result in death, serious
injury, or property damage.
There are three (3) warning indicator lights on the dash
panel that illuminate during critical circumstances. All
three (3) warning indicators demand immediate attention
and forklift servicing. In many cases the forklift should
be shut down as soon as practical to prevent serious
mechanical failure.
The hydraulic oil temperature indicator illuminates when
the oil temperature is above 180°F (82°C). Stop and idle
the engine, allowing time for cooling. If the indicator does
not go out after ve (5) minutes, shut the engine down.

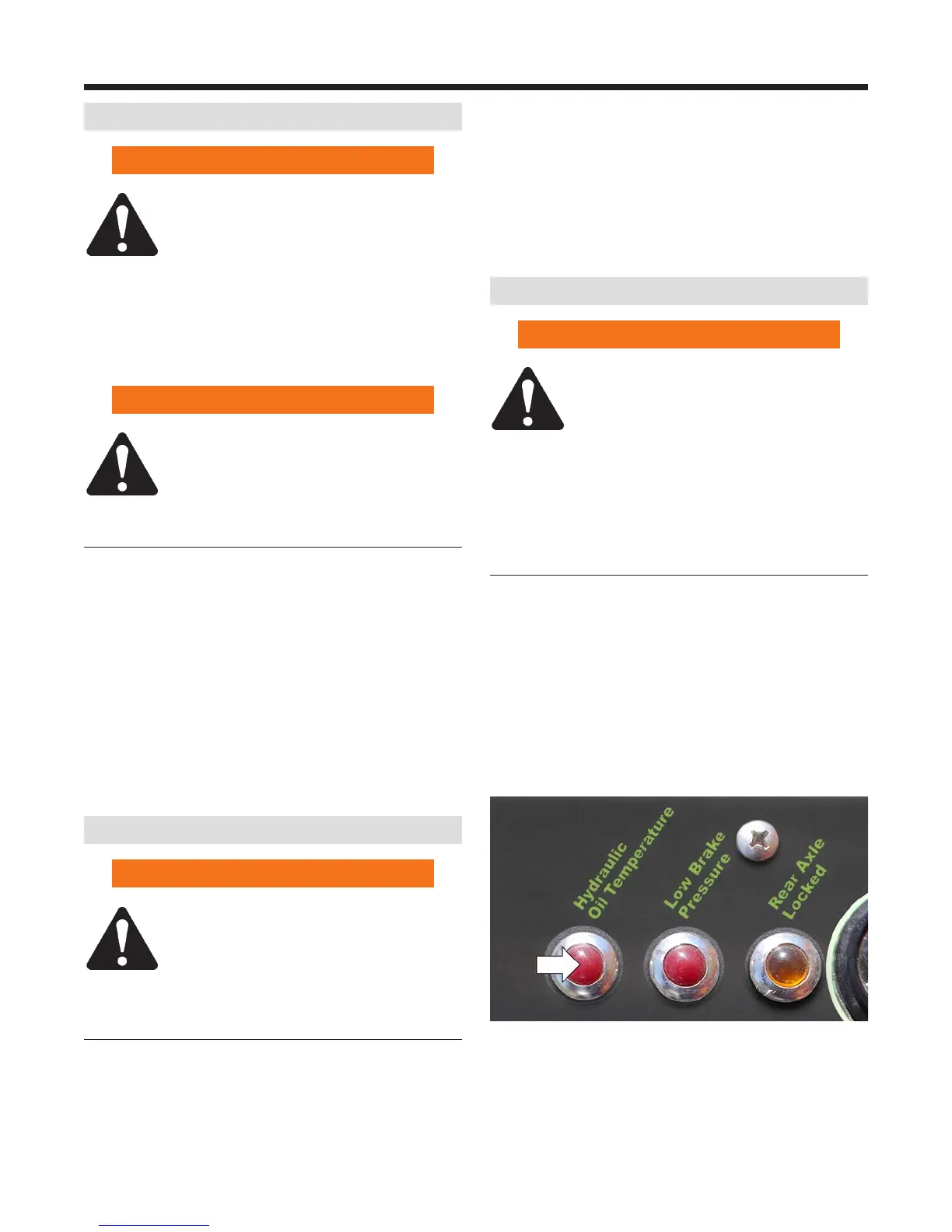

Figure 7-14. Hydraulic Oil Temperature Indicator.
