For information call (800) 497-1704 Page 41

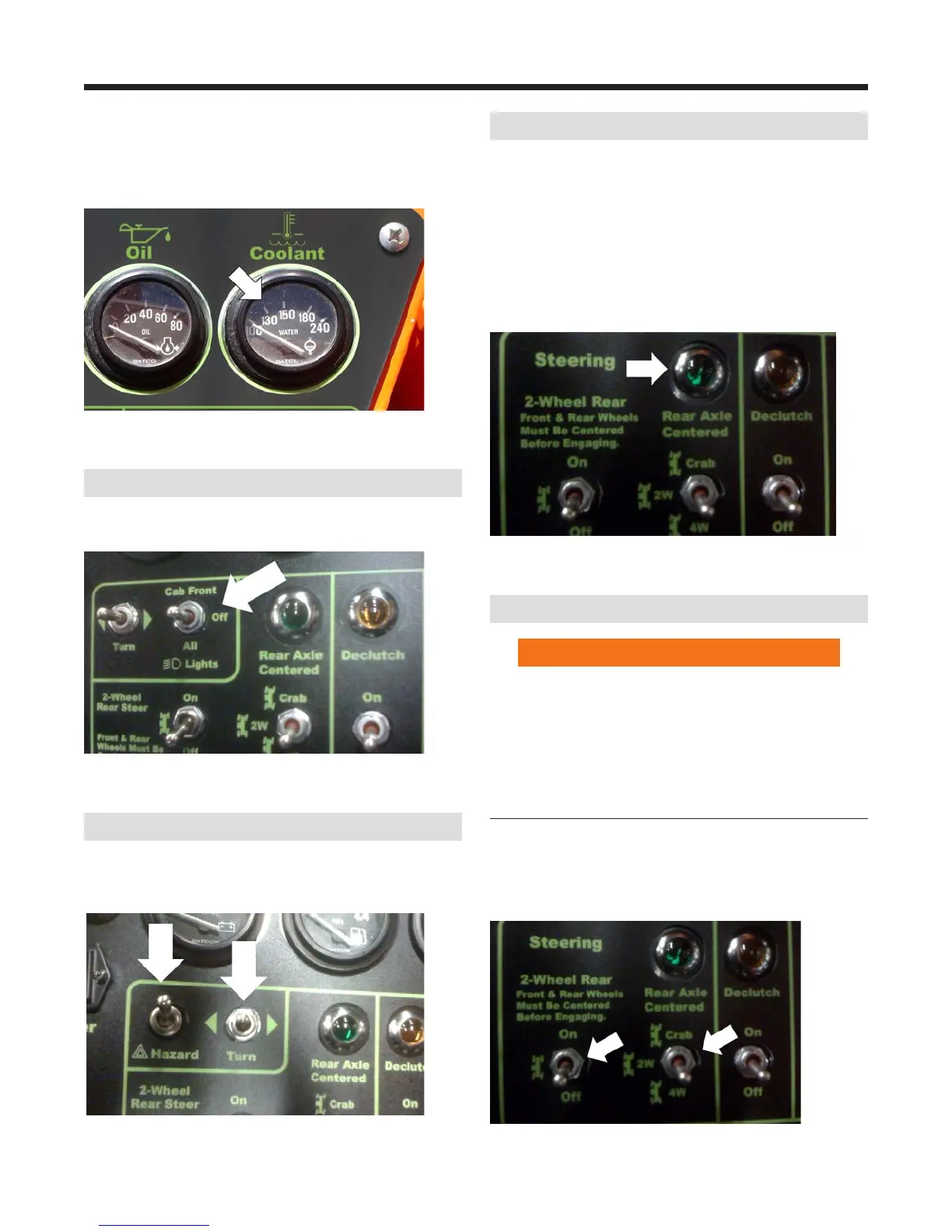

XR1255 Operator Cab
If the coolant gauge shows abnormal readings, stop the
forklift, follow proper shut down procedures, tag the
forklift with “Do Not Operate tags, and have a qualied
mechanic service or repair the forklift BEFORE placing it
into service again.
Figure 6-27. Coolant Gauge.
Light Switch (Optional)
The Light Switch controls two (2) front cab lights, two (2)
boom lights, and one (1 ) rear cab light.
Figure 6-28. Light Switch.
Turn Signal and Hazard Switches (Optional)
The Turn Signal Switch controls the turn signals (toggle
left or right). The Hazard Light Switch ashes all four (4)
turn signals (toggle up or down).
Figure 6-29. Turn Signal and Hazard Light Switches.
Rear Axle Centering Indicator
The rear axle centering indicator illuminates when the rear
wheels are aligned perpendicular to the rear axle. The rear
wheels must be aligned perpendicular to axle in order to
change the Steering Select switch.
If the rear axle centering indicator does not illuminate,
stop the forklift, follow proper shut down procedures,
tag the forklift with “Do Not Operate tags, and have a
qualied mechanic service or repair the forklift BEFORE
placing it into service again.
Figure 6-30. Rear Axle Centering Indicator.
Steering Select and 2-Wheel Rear Switches
Warning
DO NOT change steering modes until the forklift slows
or comes to a complete stop. Align all four (4) wheels
perpendicular to the axle, before changing steering
mode. Changing steering modes at higher travel
speeds can make the forklift unstable, and cause a loss
of control, which could result in death, serious injury,
or property damage.
The Steering Select switch has three (3) steering
positions: Crab, Two Wheel Steering (2W), and Four
Wheel Steering (4W). The 2-Wheel Rear switch has two (2)
positions : On and O.
Figure 6-31. Steering Select and 2-Wheel Rear Switches.
