Page 42 Xtreme Manufacturing, LLC
Operator Cab XR1255
Declutch Switch
The Declutch switch (in conjunction with the service
brake) disengages the transmission to prevent the forklift
from moving while raising or lowering a load.
• When the Declutch switch is set to ON and the service
brake applied, the transmission is disengaged.
• When the Declutch switch is set to OFF, the transmission
remains engaged when the travel select lever is set to
either FORWARD or REVERSE.

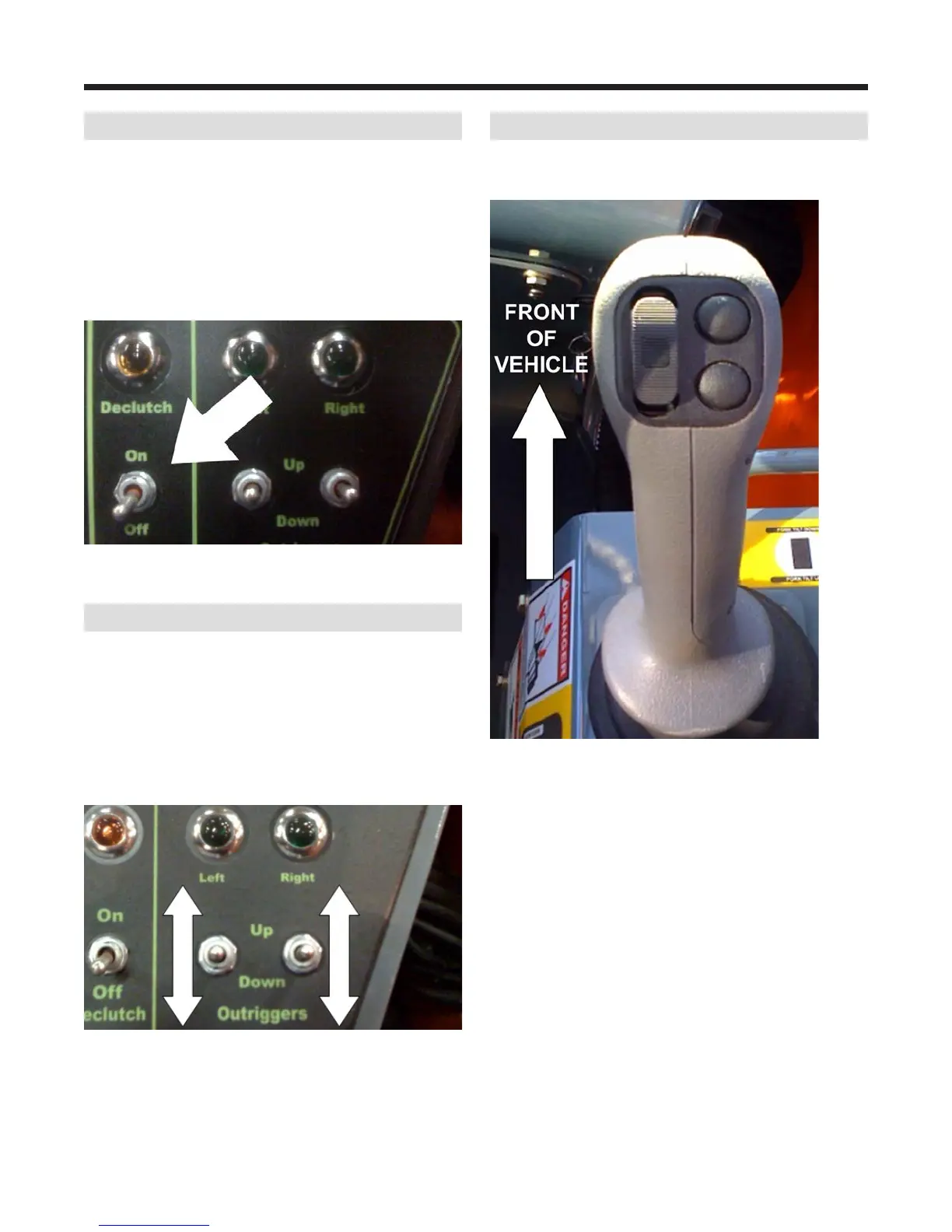

Figure 6-32. Declutch Switch.
Outrigger Switches
The Outrigger Switches are used to lower and raise the
outriggers. The outrigger indicator illuminates when
the outriggers are fully extended and on the ground.
Once outriggers are fully extended, the transmission is
disengaged, and the frame sway is locked. Frame sway
lock can be overridden with the Frame Sway Override
Switch.
Figure 6-33. Outrigger Toggle Switches.
Boom Control
The boom control handle has variable motions from the
center position that control boom and tilt functions.
Figure 6-34. Boom Control Handle.
The boom control handle is used to raise, lower, extend,
retract the boom, and tilt the carriage (or attachment).
NOTE: The boom control handle is a variable speed
control. Function speed is proportional to handle
movement. The more the handle is moved in the
appropriate direction, the faster the corresponding
function will occur.
NOTE: Increasing engine speed can increase boom lift
and extend speed.
NOTE: Two (2) boom functions can be performed at the
same time by moving the handle into the corner between
two (2) functions. For example, moving the handle to the
forward, left corner will lower and retract the boom at the
same time.
