9 Appendix
9.1 Installation drawings

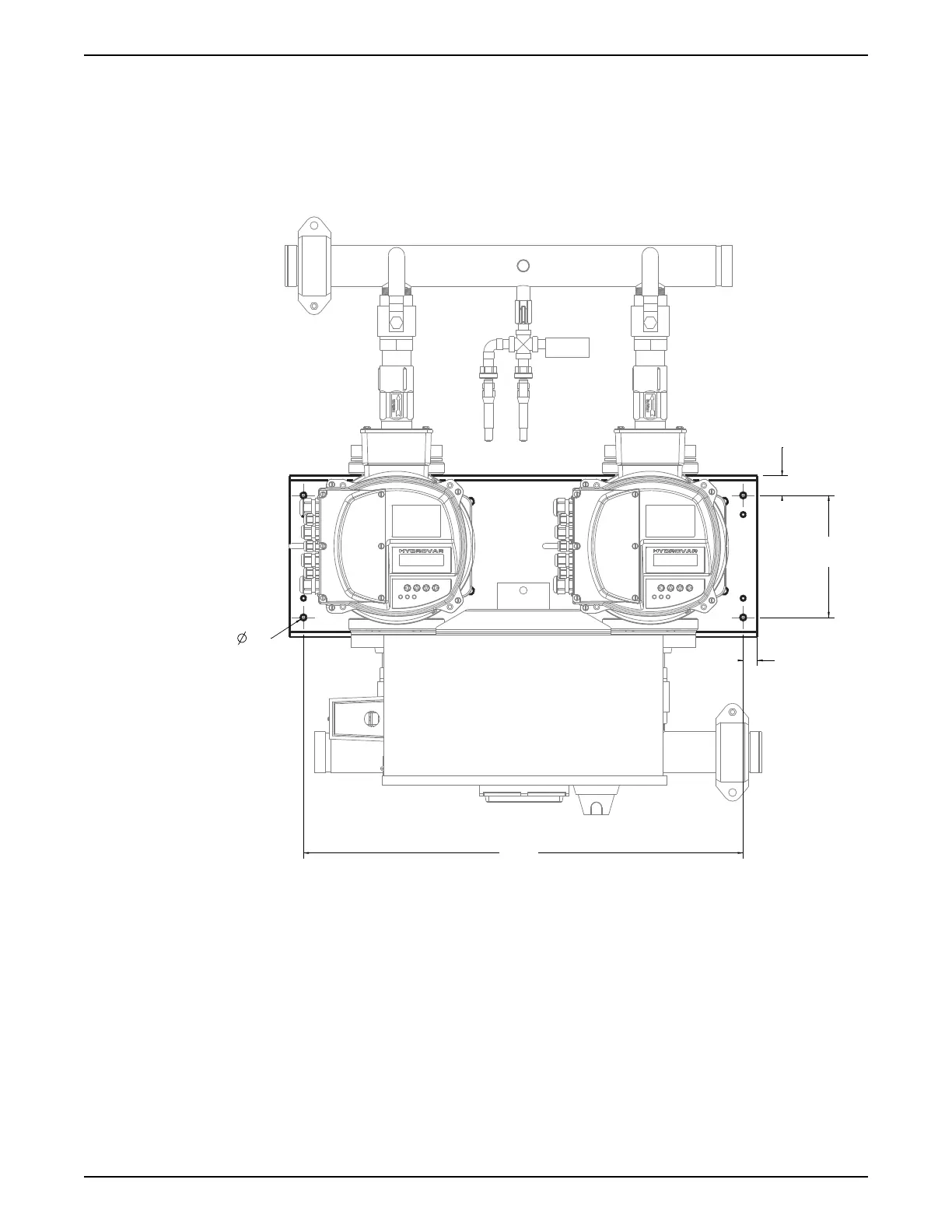

Duplex (208–230/3 and 460/3 Volt): 3SV to 5SV
7.01
TYP
25.24
TYP
.81
TYP
1.12
TYP
3/8
TYP
9 Appendix
28 TECHNOForce e-HV Mechanical Installation, Operation, and Maintenance Manual
