Waste Pump
Robust Single Diaphragm Design
Features
Flexible installation
No filter required
Compact and simple design
Self-priming to 3m (9.5ft)
12V and 24V variants
Dry running capability
Connections for 38mm (1-1/2") ports
Up to 19 lpm (5 US gpm) flow
Specifications
Suction lift: 3 meters (9.5ft)
Relevant standards:
ISO 8846 MARINE and USCG Regulations for Ignition Protection
ISO 8849 MARINE Bilge Pump Standard
Built to ISO 15083 Specification
Meets BSEN 50081 (Electro Magnetic Compatibility)

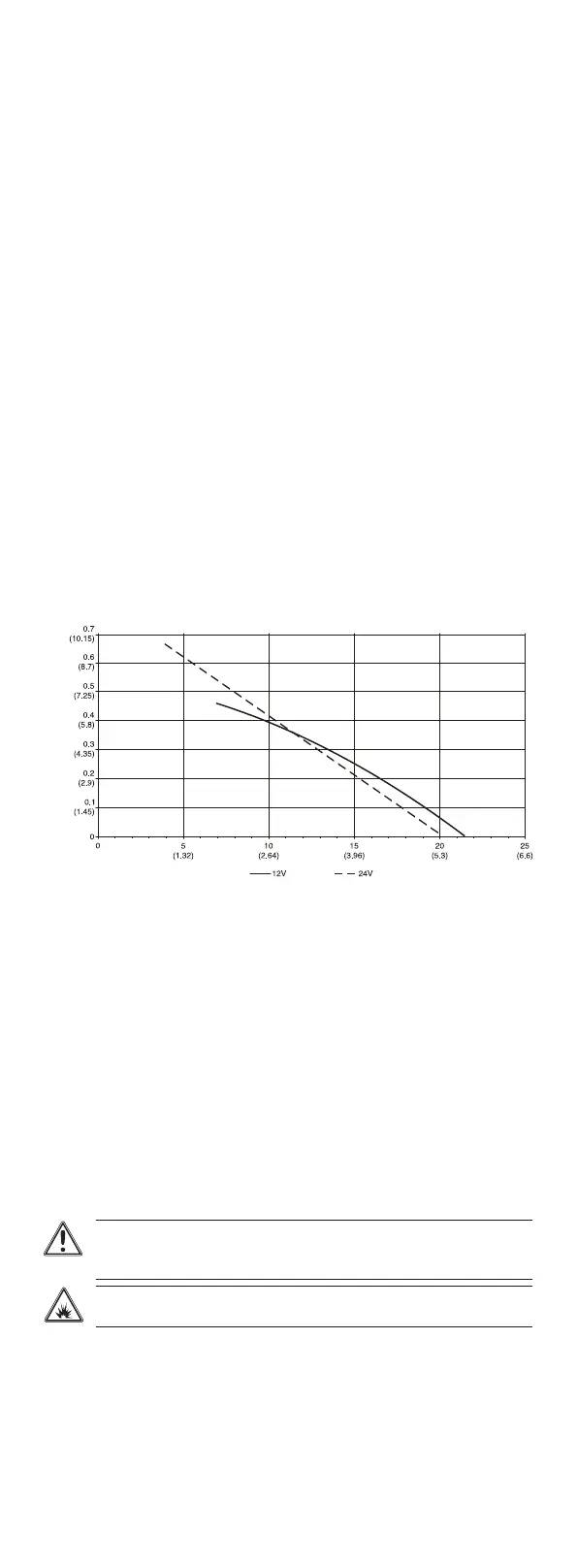

Performance Curve
Installation
The Jabsco Waste Pump is self priming up to 3m (9.5ft).
Uses multi-positional ports for easy mounting of the pump.
If mounted vertically the motor should be above the pump head.
Use rubber grommets provided to absorb vibration.
Plumbing Connections: Use 38mm (1-1/2") ID, non-collapsible
waste type suction hose.
Connect the hose to inlet and outlet of pump using two stainless
steel hose clamps at both ends.
All suction connections must be airtight and free of sharp bends
or restrictions.
Operation
The DC motor is suitable for intermittent duty and should not be run for
more than 30 minutes continuously.
Flow – lpm (us gpm)
Differential Pressure – bar (psi)
WARNING:
Do not use any Jabsco pump for petrol, petroleum products or
any products with a flash point below 37°C (98°F); explosion or death may occur.
WARNING: The discharge thru-hull may be positioned below the waterline
only if the discharge hose has a vented loop at least 20cm (8") above the waterline
at all angles of heel or trim.
