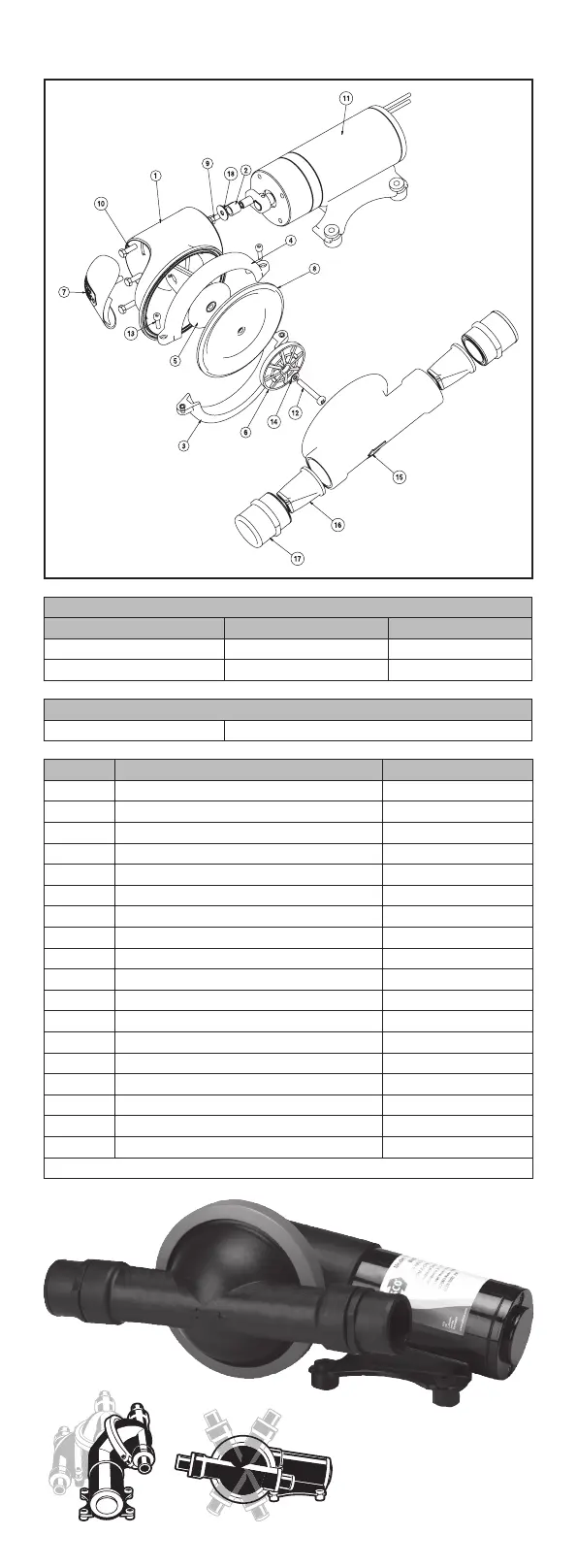

Exploded View
Part Numbers
Model Voltage Fuse Sizes
50890-1000 12V 7A
50890-1100 24V 5A
Key Description Quantity in Kit
1 Bracket
2 Bush
3 Clamp Bottom
4 Clamp Top
5 Con Rod
6 Con Rod Plate
7 Cover* 1
8 Diaphragm* 1
9 Hex Head Screw
10 Hex Head Screw* 4
11 Motor Assembly
12 Screw Recessed Pan Head* 1
13 Socket Head Screw
14 Washer* 1
15 Waste Pump Chamber
16 Waste Pump Joker Valve* 2
17 Waste Pump Port* 2
18 Washer
* Included in Service Kit
Service Kit
SK890 Service Kit - Waste Pump
