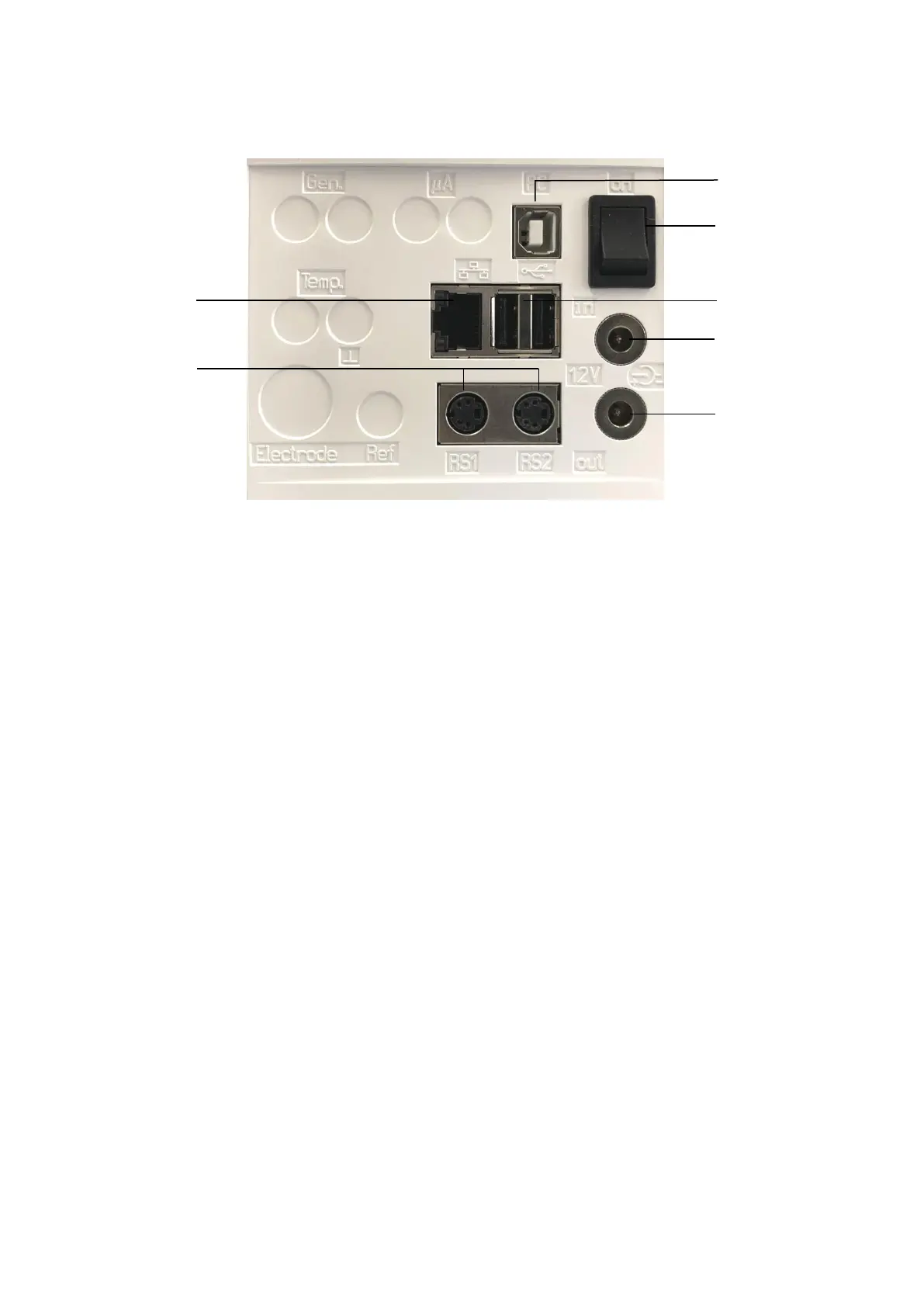

Back panel of the piston burette TITRONIC
®
500 2.2
Fig. 1
The TITRONIC
®
500 is equipped with the following connections:
1) USB-B interface for connection to a PC
2) On/Off switch
3) Two USB-A interfaces for connecting USB devices
4) Socket “in”: Connection of the external power supply TZ 1853
5) Socket “out”: Connection of the TM 235 / TM 235 KF magnetic stirrer
6) Two RS-232 ports, 4-channel (Mini-DIN):
RS1 for connection to the PC
RS2 for connection of a weighing balance and other devices from SI Analytics
®
7) Ethernet Interface (LAN)
2
3
4
5
1
7
6
