104
3 Working with the piston burette TITRONIC
®
500

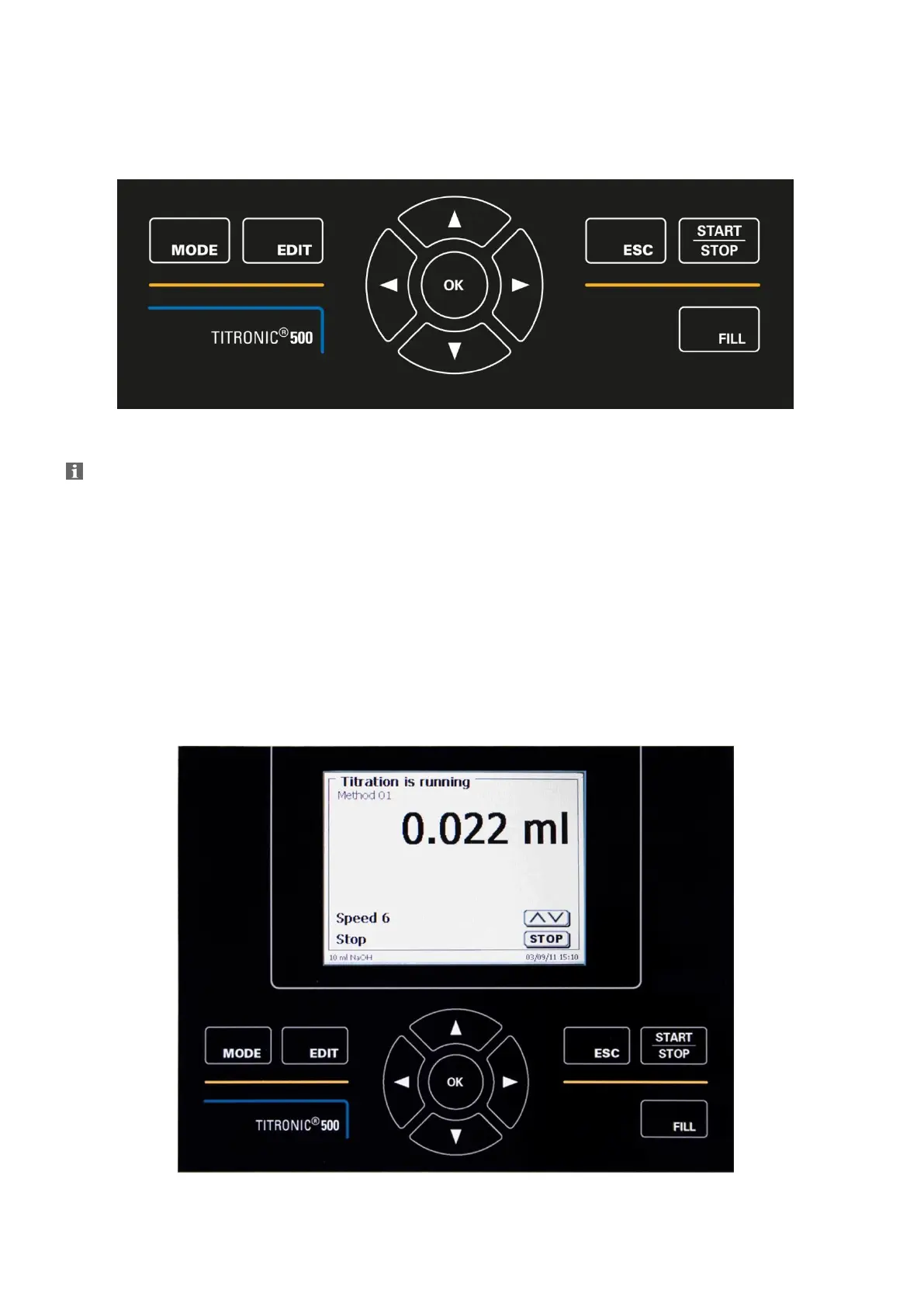

Front Keyboard 3.1
Fig. 28
Apart from alphanumeric input (a-z, A-Z, 0-9) and a few other functions, almost all functions can be performed
using the front keyboard (Fig. 28).
<Mode>: Methods selection, rinsing, system settings
<EDIT>: Changing the current method, new method, copy and delete method
<ESC>: <ESC> will take you back to the previous menu level
<START>: Start and Stop of a current method
<FILL>: Filling the unit
The individual functions are described in detail in 3.4 External PC Keyboard.
Display 3.2
The display (Fig. 29) consists of a graphical LCD display with a resolution of 320 x 240 pixels.
Fig. 29
