SonTek, a Xylem brand
18 RiverSurveyor S5/M9 System Manual (February 2013)
3.6. Configuration E – SonTek Differential GPS
3.6.1. Description

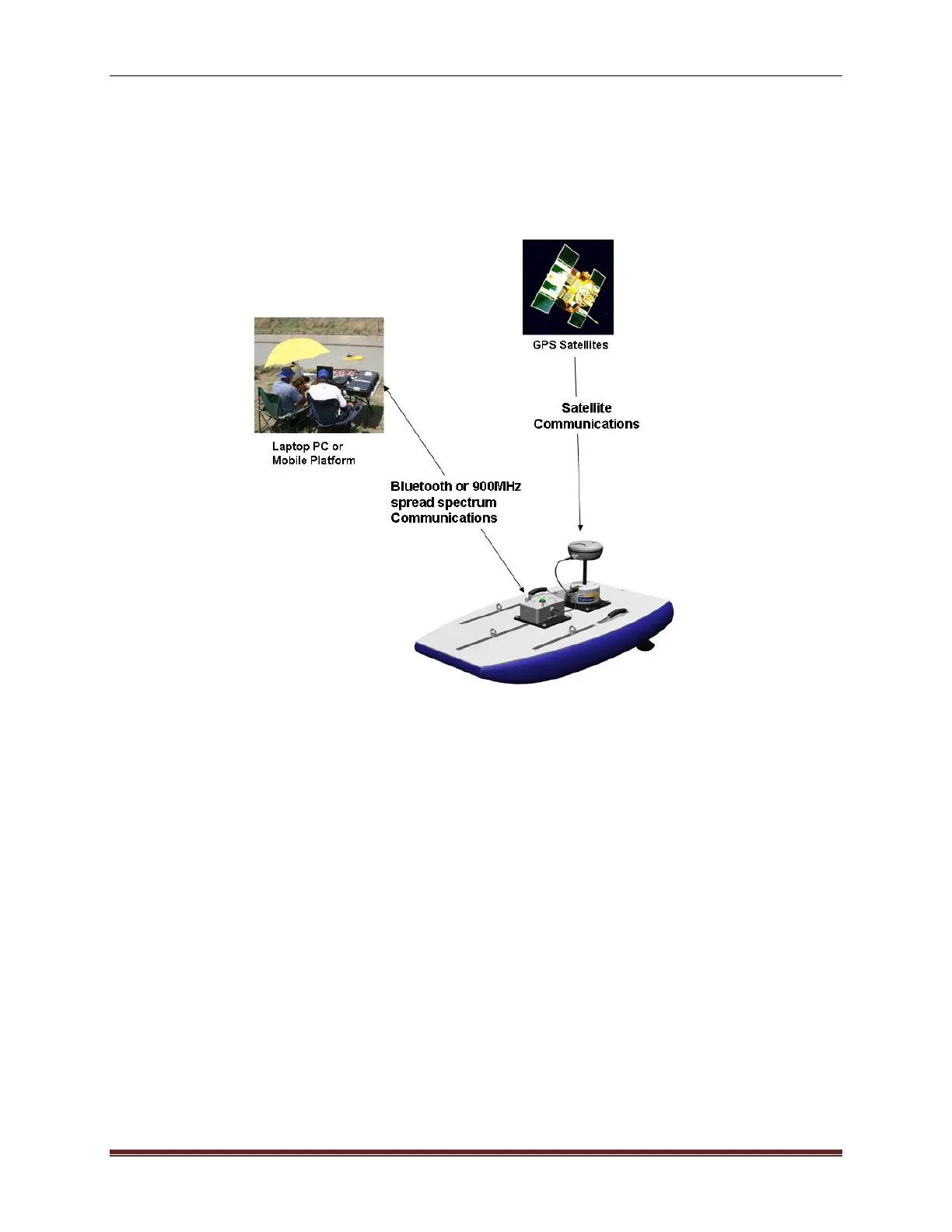

Figure 18 shows the RiverSurveyor system with Standard DGPS and wireless communications
using a SonTek Hydroboard. The standard differential GPS option has sub-meter precision. The
SonTek Hydroboard is used below for conceptual purposes.
Figure 18.Wireless Communications DGPS
3.6.2.
Hardware
Below are the directions for mounting the hardware for the DGPS option.
Figure 19 displays the hardware necessary for the DGPS option.
1. Connect the female connector of the coaxial cable to the male connection on the receiving
antenna. Run the coaxial cable through the antenna mast to the bottom, collecting all ex-
cess cable from the antenna mast.
2. Attach the GPS receiver to the mast by screwing the female connector of the antenna to
the male connector on the mast.
3. Attach the GPS mounting bracket to the ADP by inserting the four thumb screws into the
brass holes in the ADP. Now attach the antenna mast to the mounting bracket by screwing
the male threads on the mast to the female threads inside the mounting bracket.
4. Connect the female connector of the coaxial cable to the male connection on the PCM.
5. Turn the system on by pressing the power button on the PCM. Follow the instructions in
Section 5 to complete the discharge measurement.
