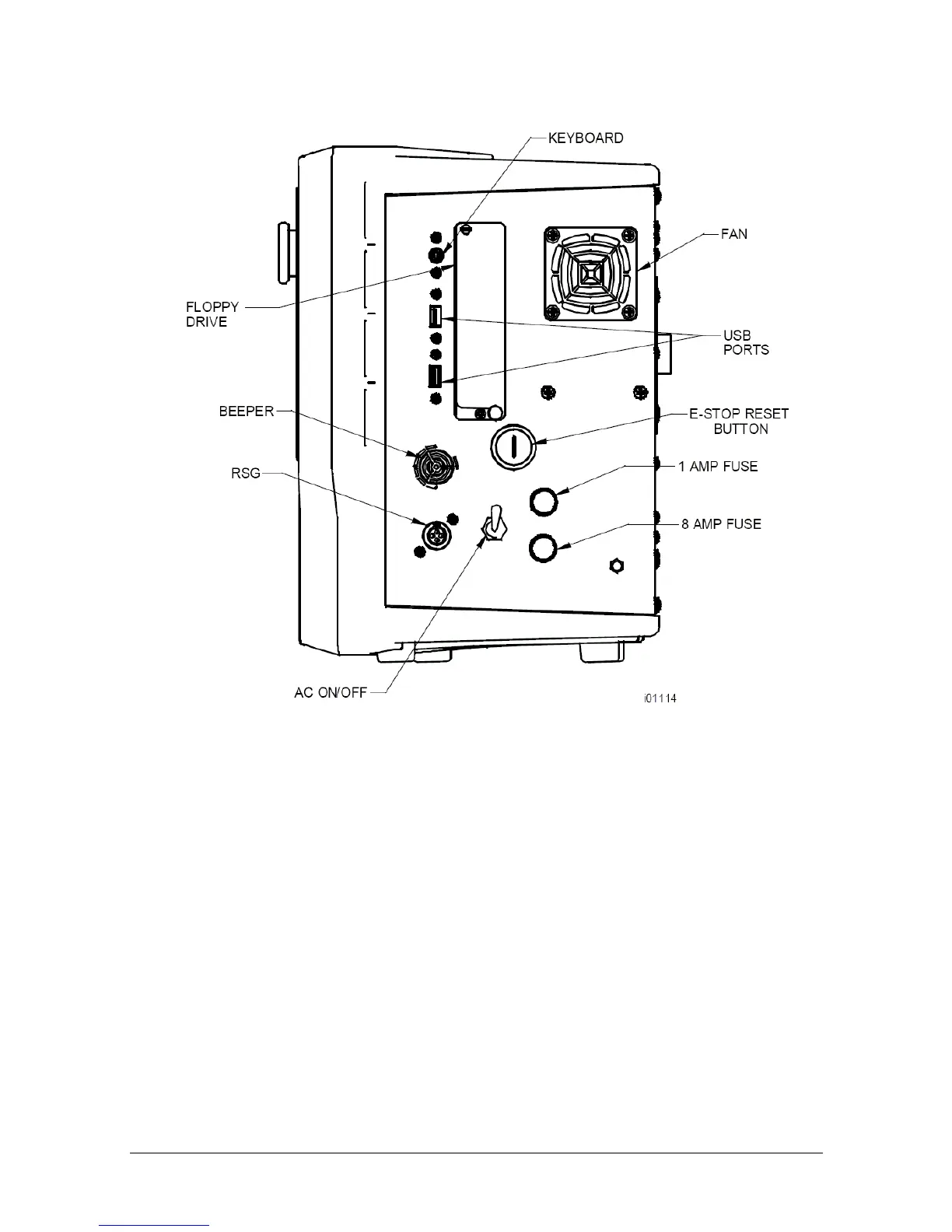

Figure 8
Pendant, Right Side
2.13 Lubrication System
2.13.1 Headstock
Before turning ON the spindle, check to make sure the headstock oil reservoir is full.
A site glass is located under the spindle cover. If low, fill the site level with Mobil
DTE 24 or equivalent oil through the plug located on the headstock cover.
For the 1630, oil will only be visible on the headstock site glass when the spindle is
running. If oil is not flowing to the site glass when the spindle is on, stop running
