5.2.3.2 Tailstock
Three oilers located on top of the spindle housing lubricate the spindle and screw.
The bedways on which the tailstock slides should be cleaned and oiled frequently.

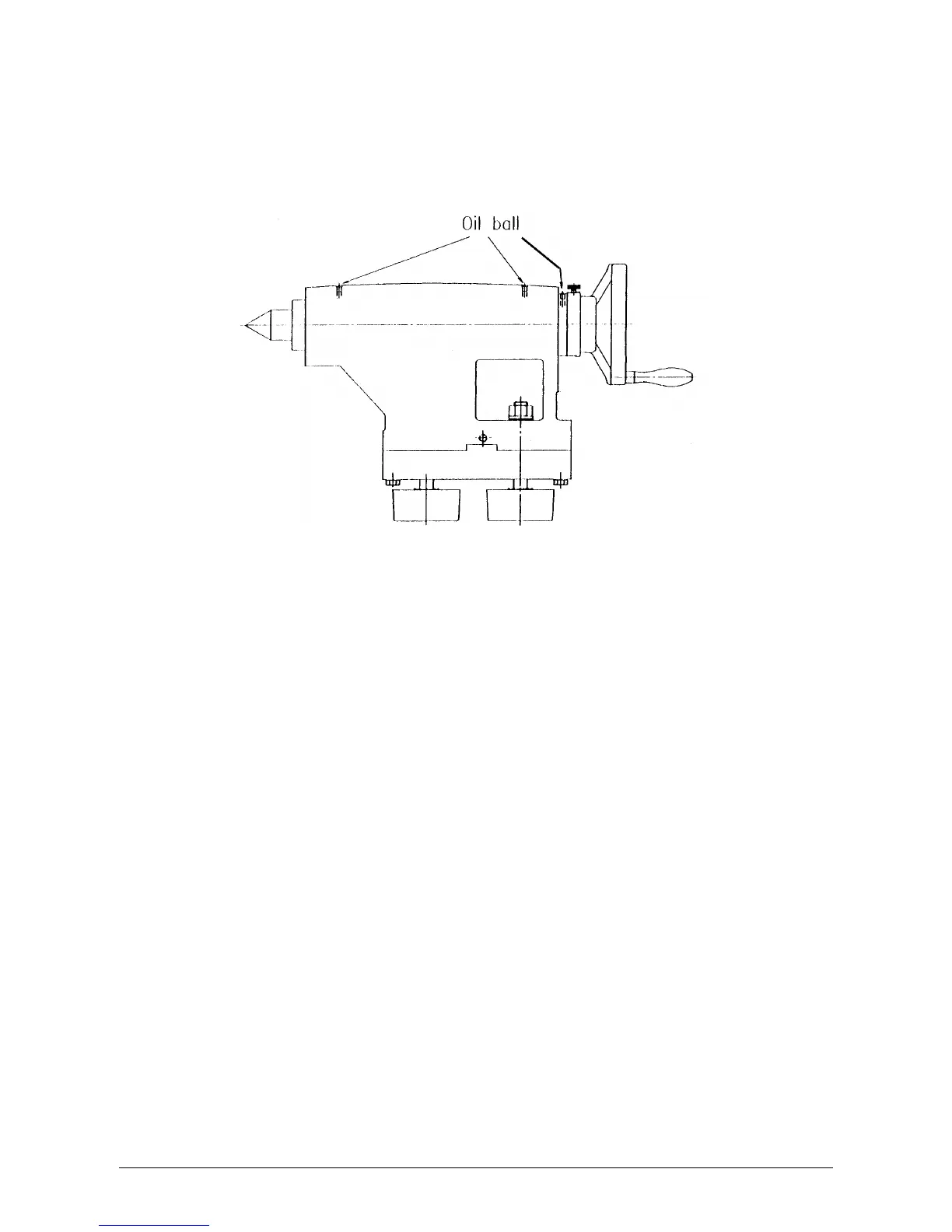

Figure 24
Tailstock Oil
5.2.3.3 Miscellaneous Information
For all oilers on the machine, use medium S.A.E. NO. 30 machine oil. Before
filling reservoirs or oil cups, always wipe off with a clean rag any accumulation
of old oil, grease or dirt that might get into a part being lubricated.
Do not mix detergent type automotive oil, or multi-purpose oils with the regular
grade of S.A.E. No. 30 lubricating oil.
