ProTURN SLX 1630 ProtoTRAK SLX CNC Safety, Installation, Maintenance, Service & Parts List Manual
88
7.0 Drawings & Parts Lists

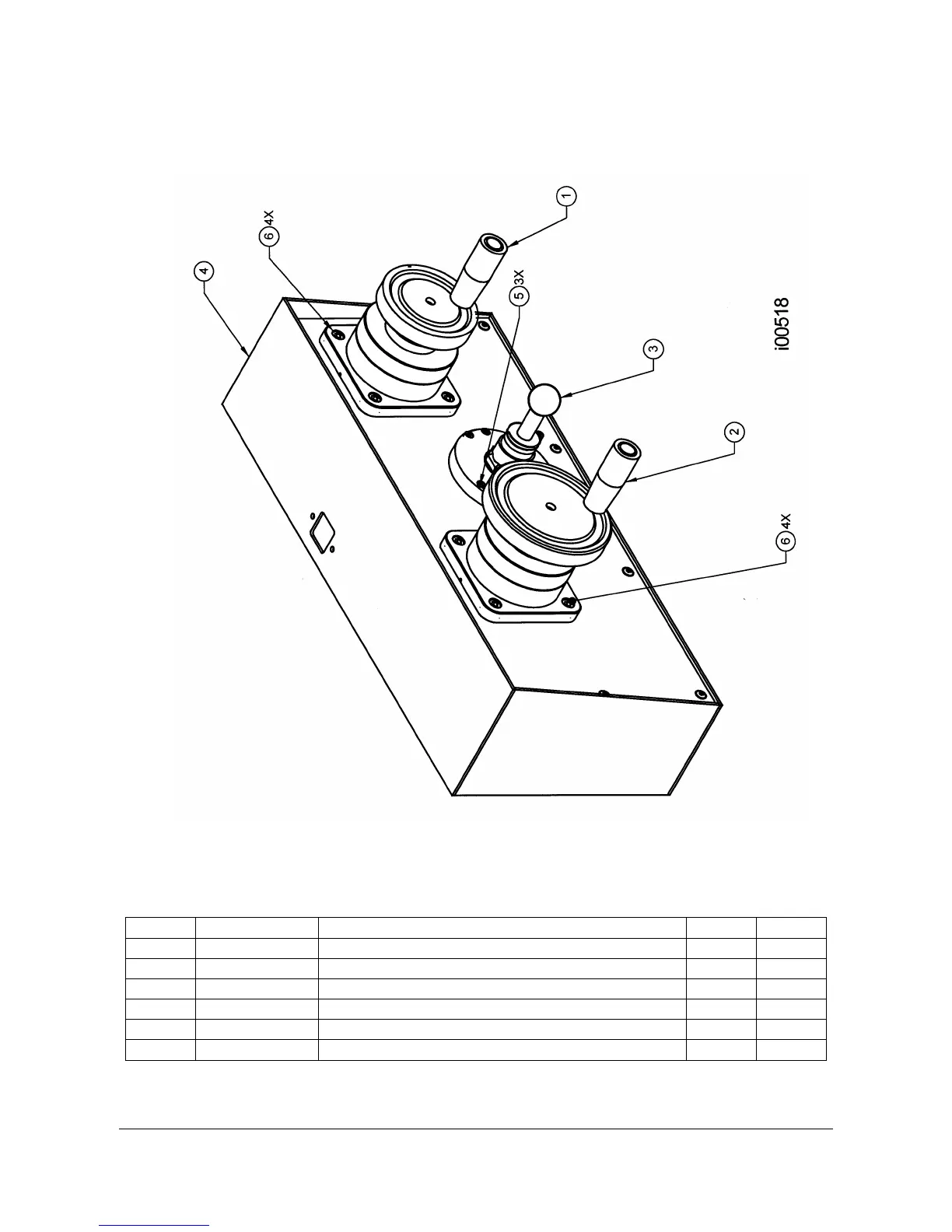

Figure 30
Lathe Apron Assembly
Item
P/N
Title
UseAs
Qty
1
20082-2
ELECTRONIC HANDWHEEL-X-AXIS TRL
EA
1
2
20082-3
ELECTRONIC HANDWHEEL-Z-AXIS TRL
EA
1
3
20295
JOGSTICK-ASSY
EA
1
4
21046
HOUSING & PANEL ASSY. HANDWHEEL (VER: II)
EA
0
5
M4-0.7X16 25B
SCREW-SHCS-STL-BO
EA
3
6
M6-1.0X12 25B
SCREW-SHCS-STL-BO
EA
8
i00518
