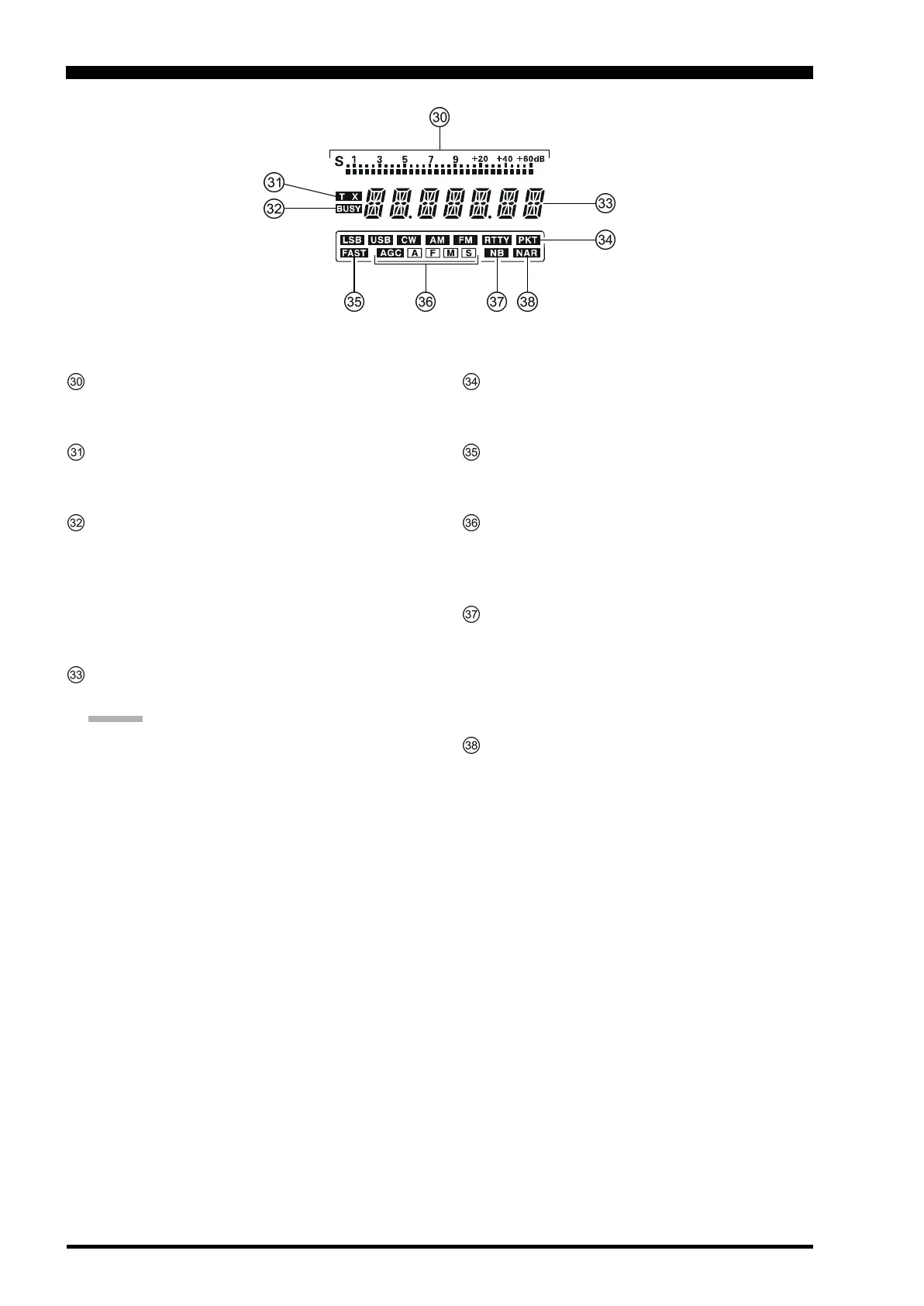

Page 30 FT-2000D OPERATING MANUAL
Sub
(
VFO-B
)
Receiver S-Meter
Displays the strength of signals received on the Sub
band (VFO-B).
TX
This indicator appears during transmission on the Sub
band (VFO-B) frequency.
BUSY
This indicator appears whenever the Sub band (VFO-
B) receiver squelch is open. If this indicator is not show-
ing, and reception seems to have been lost on the Sub
receiver for no apparent reason, check the position of
the Sub
[
SQL
]
knob and rotate it fully counter-clock-
wise to restore reception.
Sub
(
VFO-B
)
Frequency Display
This is the Sub band (VFO-B) frequency display.
ADVICE:
When setting the Menu items, the Menu item name
will appear in this area during setup.
When setting the CTCSS frequency for Encoding
or Tone Squelch operation, the current tone fre-
quency will appear in this area during setup.
When activating the CW Spot Tone, the current tone
frequency will appear in this area.
LSB, USB, CW, AM, FM, RTTY, PKT
Displays the currently selected operating mode for the
Sub (VFO-B) receiver.
FAST
This indicator appears when the
[
SUB VFO-B
]
knob’s
tuning rate is selected to fast.
AGC A, F, M, S
Displays the currently selected AGC decay time for
the Sub (VFO-B) receiver.
A: Auto, F: Fast, M: Medium, S: Slow
NB
This indicator appears when the Sub (VFO-B)
receiver’s (short duration) Noise Blanker is activated.
This indicator will blink for three seconds, and there-
after appears continuously, when the Sub (VFO-B)
receiver’s longer-pulse Noise Blanker is activated.
NAR
This indicator appears whenever the optional Sub
(VFO-B) receiver’s narrow filter is selected.
