Yale Conexis L1 - Installing Internal Fixing Plate

10
(08)

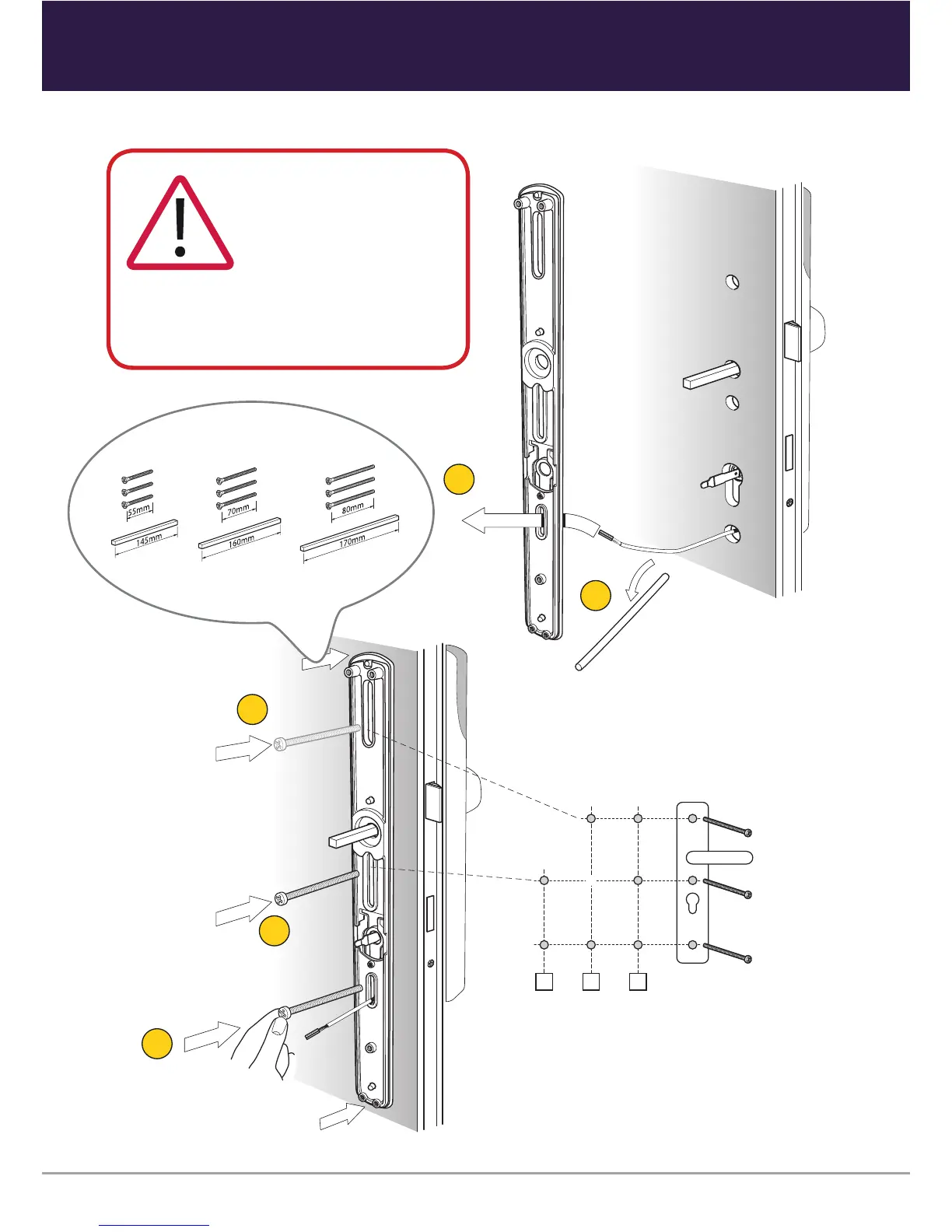

Installing Internal Fixing Plate
•
Ensure correct
xing pack is used
for width of door.
Do not fully tighten
as the handle needs
to be aligned in the
next step.
(08)
1
2
3
4
5
Fixing pack B, C or D screws.
Remove
