Yale CPE Series User Manual

Yale Electric Chain Hoist CPE
electric
Yale
17
27.2 Planet gear shaft 3 0600253
28 Friction disc 2 0600254
29 Ring gear 1 0600255
30 Stop washer 3 9153043
31 Needle bearing 3 9153090
32 Planet gear 3 0600171
33 Bearing plate 1 0600256
34 Snap ring 2 9130034
35 Gear shaft 1 0600257
36 Ball bearing 1 9150043
37 Snap ring 2 9129029
38 Locking screw 1 0600258
39 Locking bolt 1 0600259
40 O-ring 1 9171169
41 Cup spring 4 9120041
42 Fixing screw 1 0600260
43 O-ring 1 9171170
44 Screw plug 1 9110052
45 Seal 1 9179004
46 Ball 1 9159011
47 Threaded pin 1 9114136
48 Fitting plate 1 9121056
50 Coupling 1 0608879
51 Gear box cover 1 0600262
52 Screw 4 9102019
Attention: When ordering spare parts always indicate serial number and mfg. year of hoist

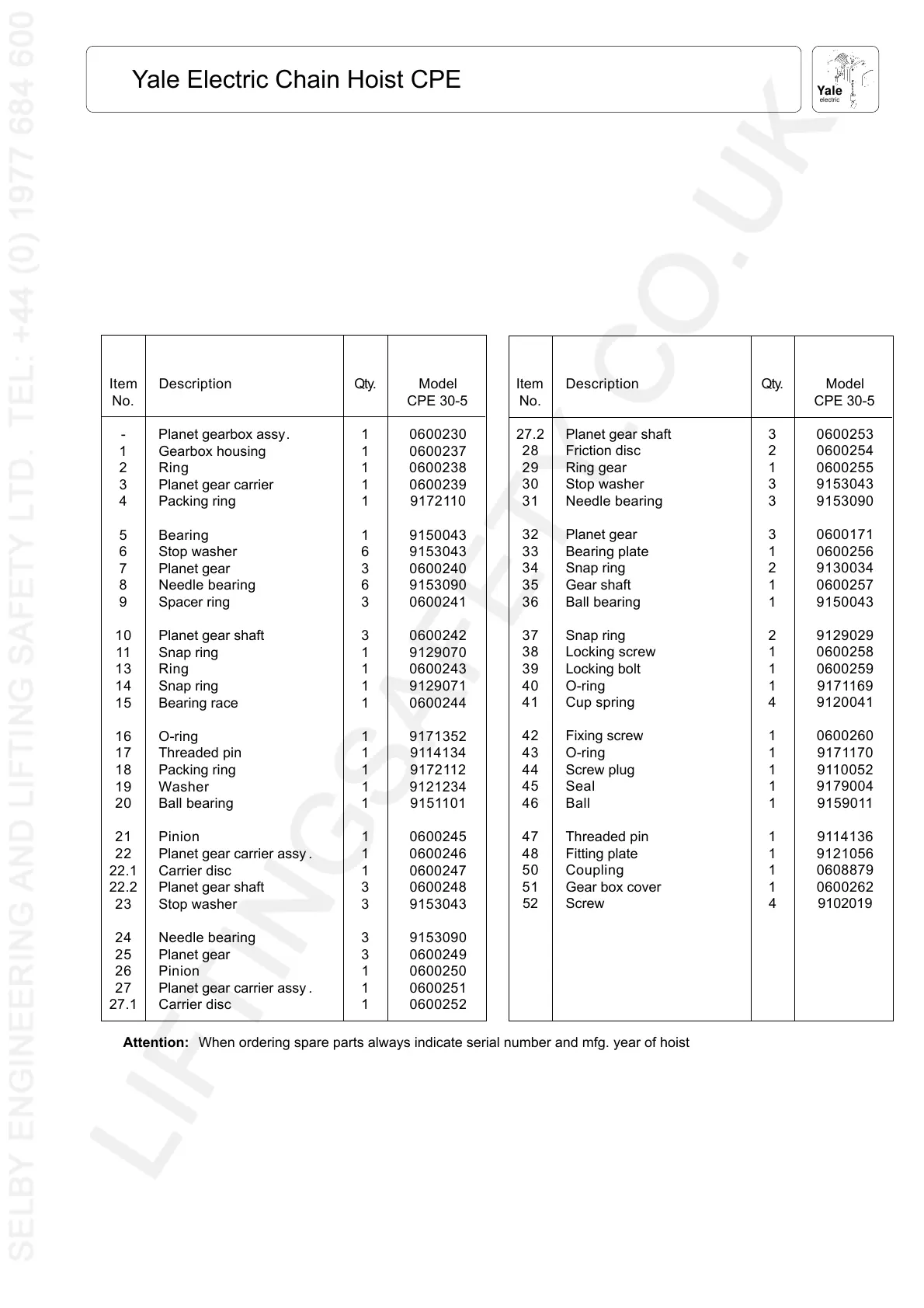

Item Description Qty. Model
No. CPE 30-5
- Planet gearbox assy. 1 0600230
1 Gearbox housing 1 0600237
2 Ring 1 0600238
3 Planet gear carrier 1 0600239
4 Packing ring 1 9172110
5 Bearing 1 9150043
6 Stop washer 6 9153043
7 Planet gear 3 0600240
8 Needle bearing 6 9153090
9 Spacer ring 3 0600241
10 Planet gear shaft 3 0600242
11 Snap ring 1 9129070
13 Ring 1 0600243
14 Snap ring 1 9129071
15 Bearing race 1 0600244
16 O-ring 1 9171352
17 Threaded pin 1 9114134
18 Packing ring 1 9172112
19 Washer 1 9121234
20 Ball bearing 1 9151101
21 Pinion 1 0600245
22 Planet gear carrier assy . 1 0600246
22.1 Carrier disc 1 0600247
22.2 Planet gear shaft 3 0600248
23 Stop washer 3 9153043
24 Needle bearing 3 9153090
25 Planet gear 3 0600249
26 Pinion 1 0600250
27 Planet gear carrier assy . 1 0600251
27.1 Carrier disc 1 0600252
Item Description Qty. Model
No. CPE 30-5

Yale CPE Series Specifications

General

Brand	Yale
Model	CPE Series
Category	Chain Hoists
Language	English
