Yale CPE Series User Manual

Yale Electric Chain Hoist CPE
Yale
electric
18

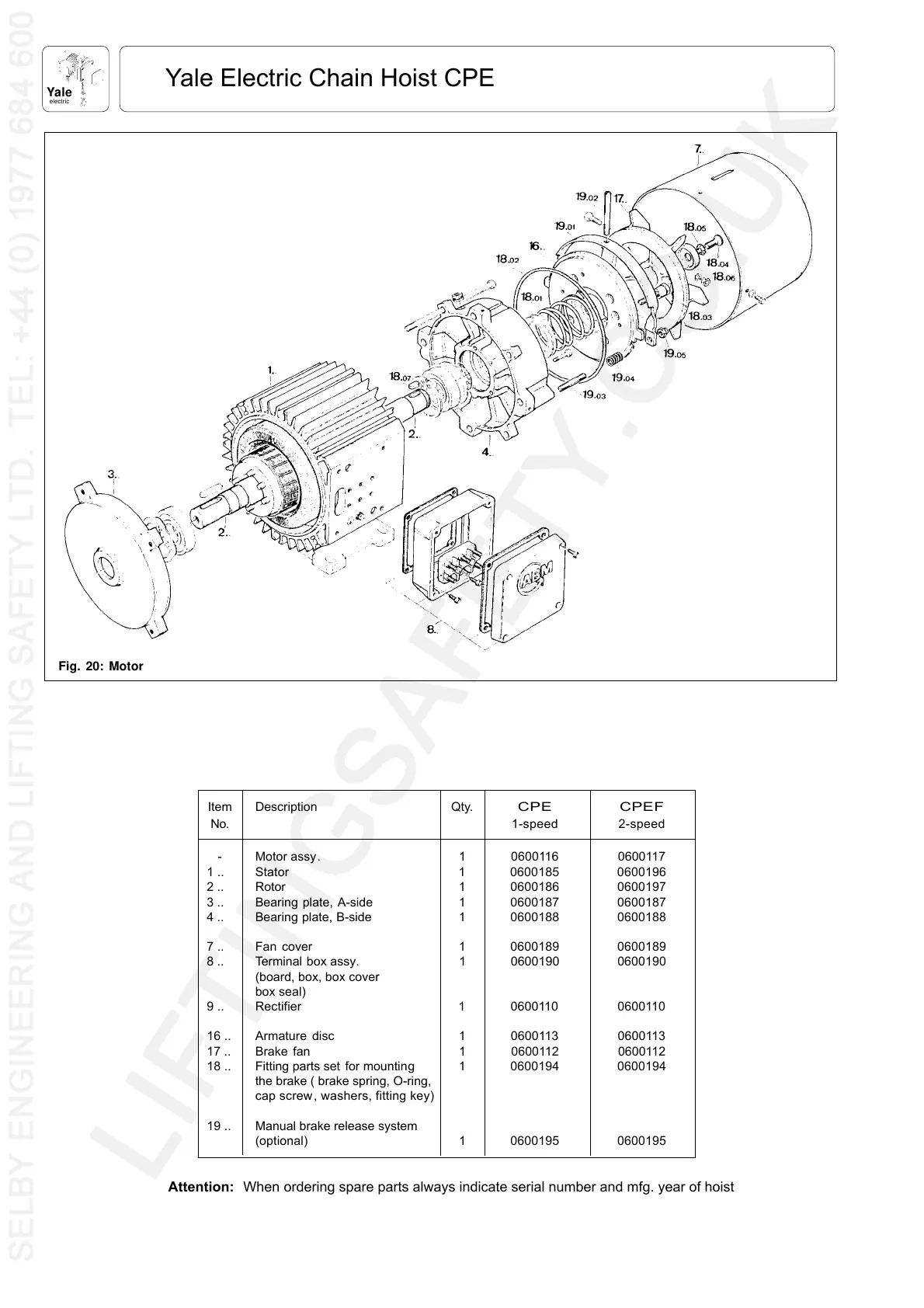

Fig. 20: Motor
Item Description Qty. CPE CPEF
No. 1-speed 2-speed
- Motor assy. 1 0600116 0600117
1 .. Stator 1 0600185 0600196
2 .. Rotor 1 0600186 0600197
3 .. Bearing plate, A-side 1 0600187 0600187
4 .. Bearing plate, B-side 1 0600188 0600188
7 .. Fan cover 1 0600189 0600189
8 .. Terminal box assy. 1 0600190 0600190
(board, box, box cover
box seal)
9 .. Rectifier 1 0600110 0600110
16 .. Armature disc 1 0600113 0600113
17 .. Brake fan 1 0600112 0600112
18 .. Fitting parts set for mounting10600194 0600194
the brake ( brake spring, O-ring,
cap screw, washers, fitting key)
19 .. Manual brake release system
(optional) 1 0600195 0600195
Attention: When ordering spare parts always indicate serial number and mfg. year of hoist
