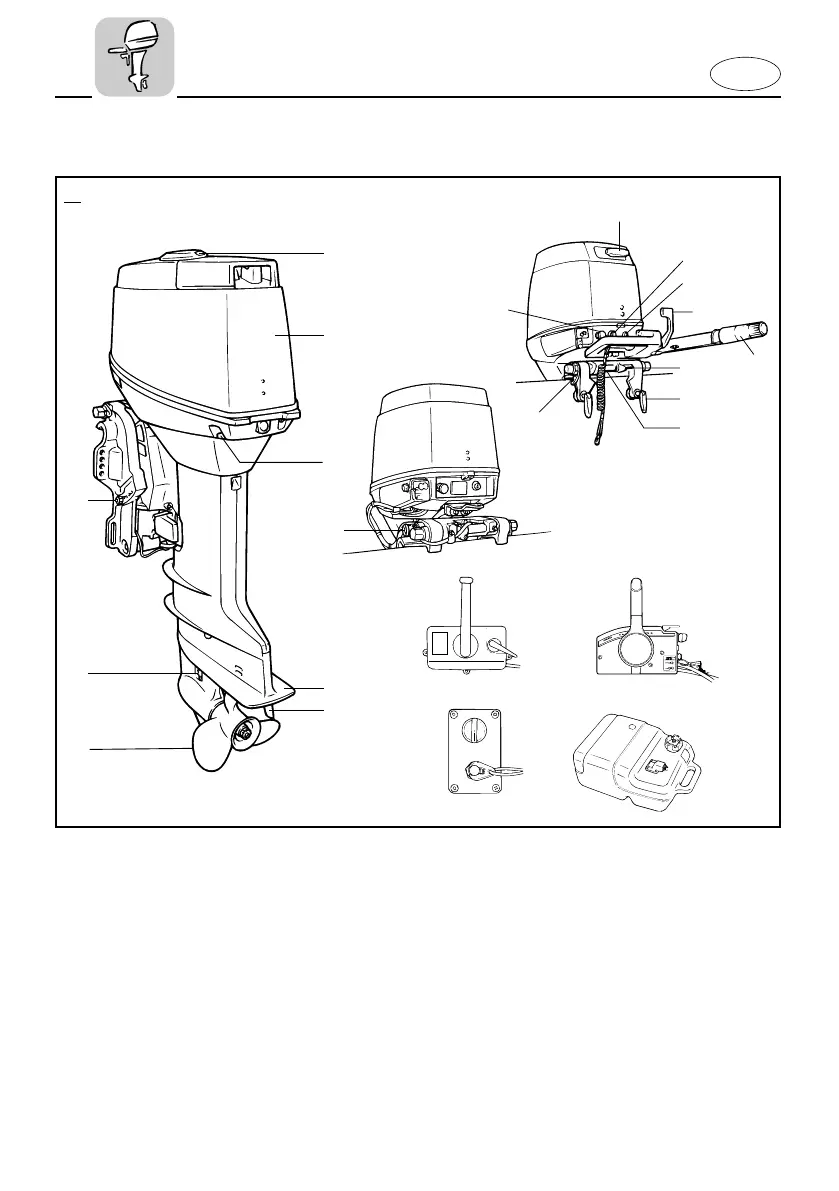

MAIN COMPONENTS
1 Oil filler access cap
2 Top cowling
3 Top cowling lock lever
4 Anti-cavitation plate
5 Trim tab
6 Propeller
7 Cooling water inlet
8 Trim angle adjusting rod
9 Recoil starter handle
0 Engine stop button/
Engine stop lanyard
switch
q Warning lamp
w Gear shift lever
e Throttle-control grip/tiller
handle
r Tilt-lock lever
t Transom-clamp handle
y Shallow water lever
u Rope attachment
i Choke knob
o Tilt support knob
p Remote control box (701
type)
a Remote control box (703
type)
s Switch panel (Together
with p)
d Fuel tank
* May not be exactly as
shown; also may not be
included as standard
equipment on all models.
