2-13
GB
701035
EMU00107

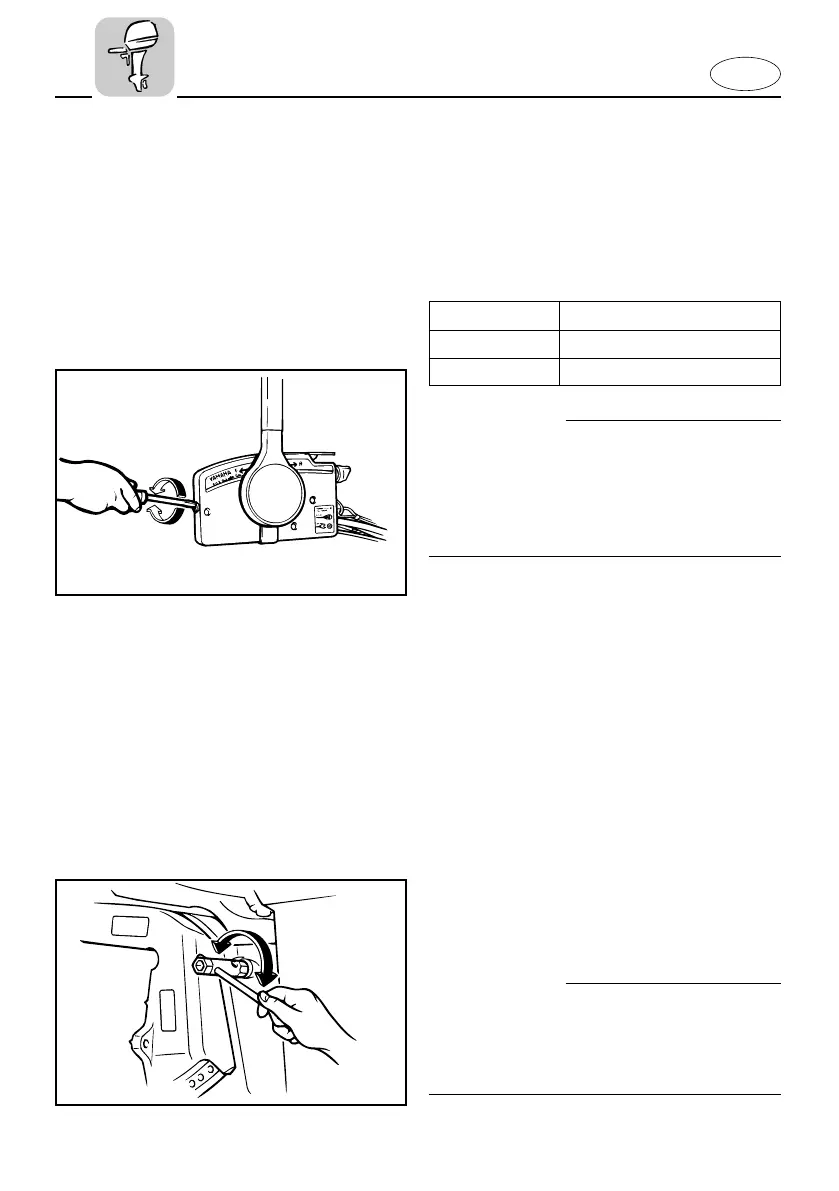

Throttle friction adjusting screw
A friction device in the remote control box
provides resistance to movement of the
remote control lever.
This is adjustable for operator preference.
An adjusting screw is located at the front
of the remote control box.
w
Do not overtighten the friction adjusting
screw.
If there is too much resistance, it may be
difficult to move the lever, which could
result in an accident.
EMD00010
STEERING FRICTION ADJUSTING
SCREW (for Tiller control model)
A friction device provides resistance to
steering movement. This is adjustable for
operator preference. An adjusting
screw/bolt is located on the swivel brack-
et.
To increase the resistance:
Turn the adjusting screw/bolt clockwise.
To decrease the resistance:
Turn the adjusting screw/bolt counter-
clockwise.
w
Do not overtighten the friction
screw/bolt. If there is too much resis-
tance, it may be difficult to steer, which
could result in an accident.
Resistance Screw
Increase Turn clockwise
Decrease Turn counterclockwise
