Yamaha 20D - Tilt Lock Mechanism; Tilt Support Bar; Tilt Support Lever

2-16
GB
403023
403014*
20/25N
30
402062*
20/25N
1
402035*
30
1
EMD44010

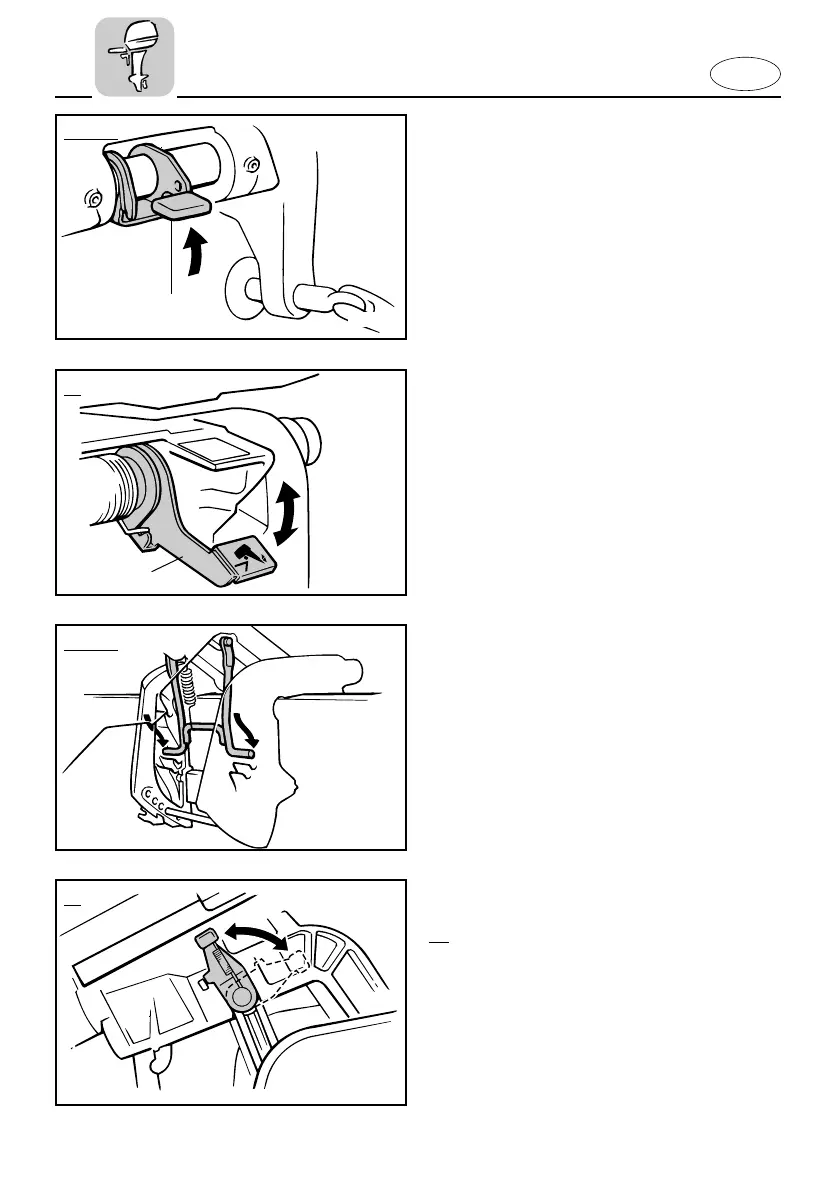

TILT LOCK MECHANISM
(for Manual tilt model)
The tilt-lock mechanism is used to pre-
vent reverse thrust from the propeller lift-
ing the outboard motor when reversing.
To lock it, set the tilt-lock lever in the up
position. To release it, push the tilt-lock
lever down.
1 Tilt-lock lever
EMD48010
TILT SUPPORT BAR
The tilt support bar keeps the outboard
motor in the tilted up position.
EMD60210
TILT SUPPORT LEVER
30
To keep the outboard motor in the tilted-
up position, lock the tilt support lever to
the swivel bracket.
6L3-9-76A0-2 2/27/03 10:20 AM Page 34
