EMD66110

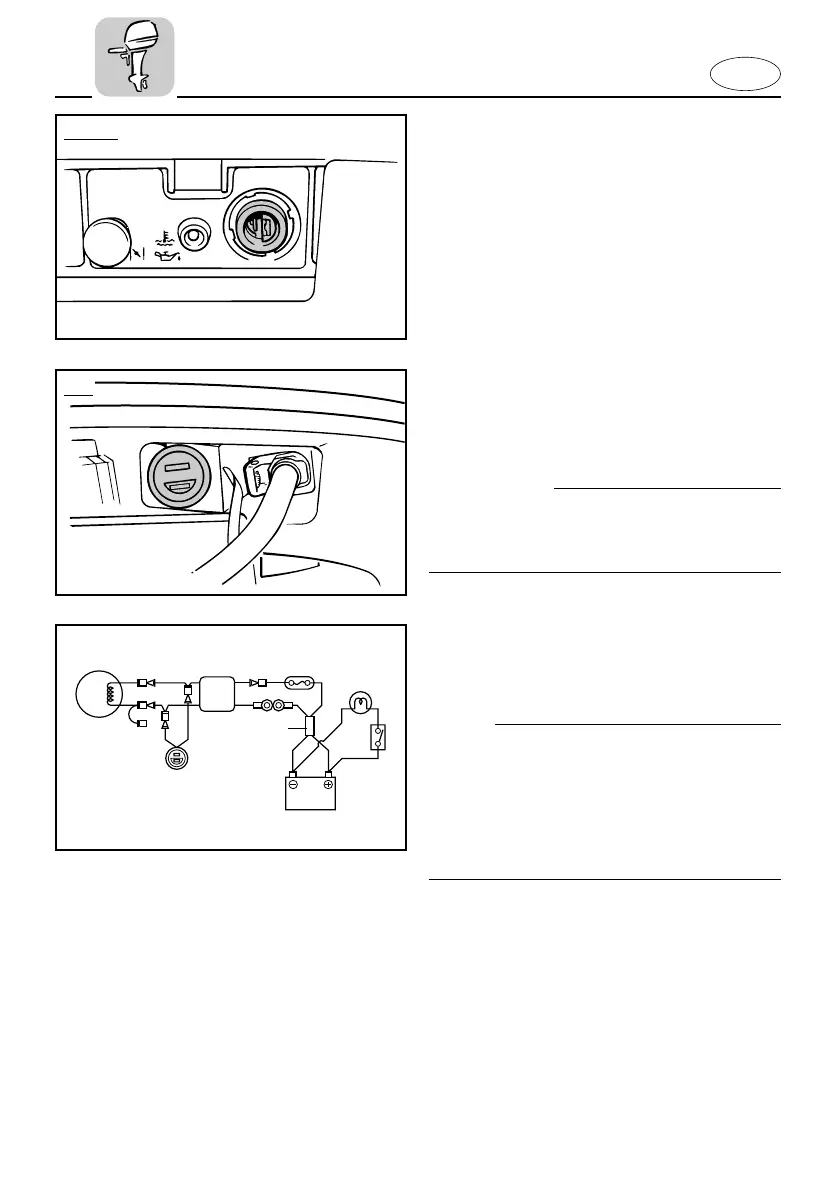

2P CONNECTOR
(for manual start model)
AC12V-80W power is delivered through
this connector. When using it, keep in
mind the following points:
1. Use a genuine Yamaha connector.
2. Use lighting equipment only.
3. Connect a lighting equipment directly
to the 2P connector.
4. Capacity the lighting equipment must
be more than 12V-80W; otherwise,
the bulb could be burnt out.
5. When the connector is not used,
place the cap on it.
cC
Do not connect the 2P connector directly
to the battery terminals. Otherwise, the
electrical system will be damaged.
If charging a battery is required, use the
genuine charge lead to make charging cir-
cuit.
For the detail of lead connection, consult
a Yamaha dealer.
NOTE:
8 Do not use 2P connector while charging
the battery, otherwise the battery will
not be charged.
8 If the use of lighting equipment is
required while charging the battery,
connect it to the battery.
1 Lighting coil 4 Charge lead
2 Rectifer regulator 5 Lighting equipment
3 Battery 6 2P connector
