3-3
Outboard Rigging Guide - 2001 Wire Harnesses

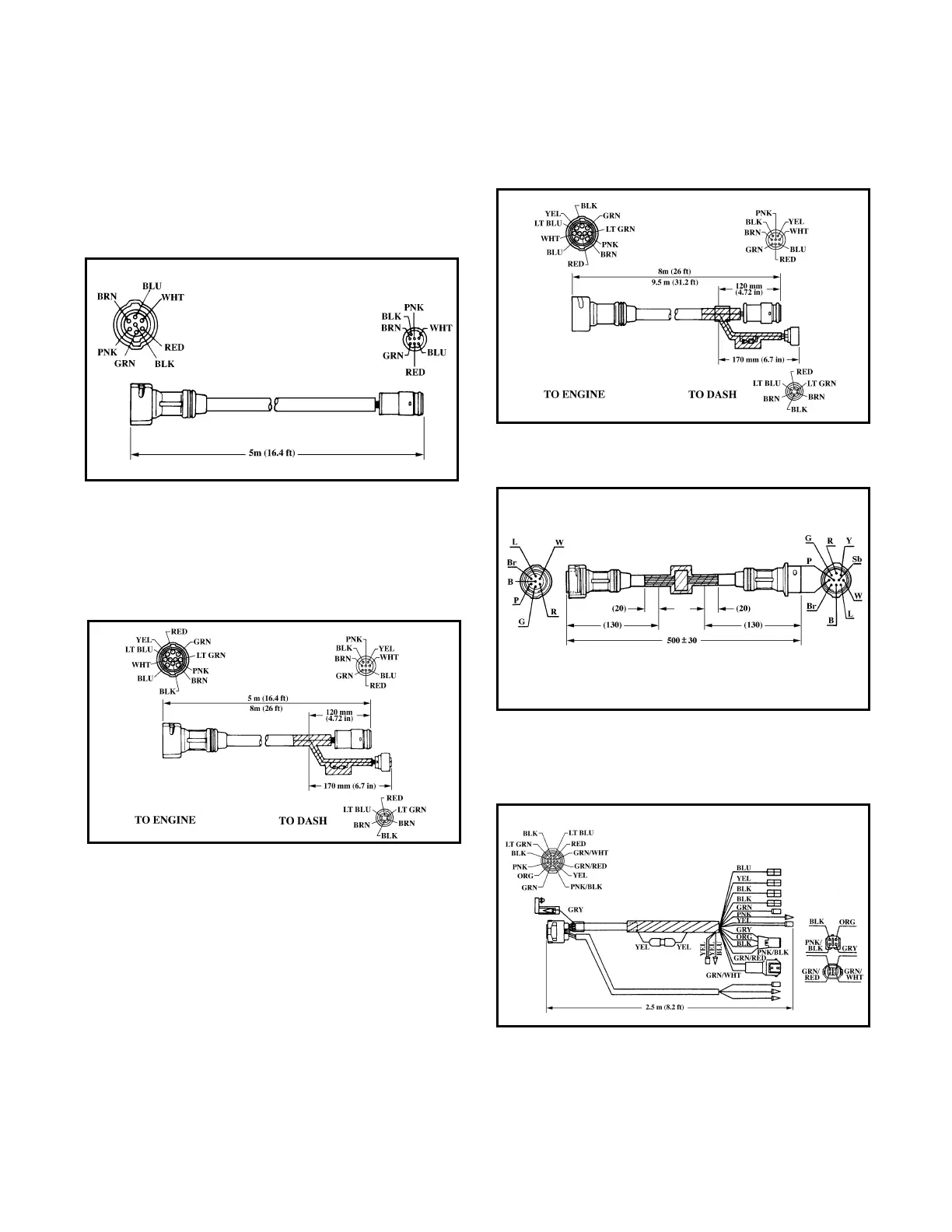

Primary Engine Harness
For Use W/Switch Panel
1. 7-Pin Main Harness
688-82586-50-00 (5M, 16.4ft)
2-1.Main Harness 10-Pin, 5M
688-8258A-50-00 (5M, 16.4ft)
2-2.Main Harness 10-Pin, 8M
6K1-8258A-40-00 (8M, 26ft)
3-2.Main Harness 10-Pin, 9.9M
61B-8258A-00-00 (9.9M, 31.2ft)
4. 7 to 10-Pin Adapter
703-8258A-00-00
5. 12-Pin Main Harness
for Tiller Models, 2.5M
6H5-83553-11-00 (2.5M, 8.2ft)
