Outboard Rigging Guide - 2001 Water Pressure Gauge
Installation
Mounting

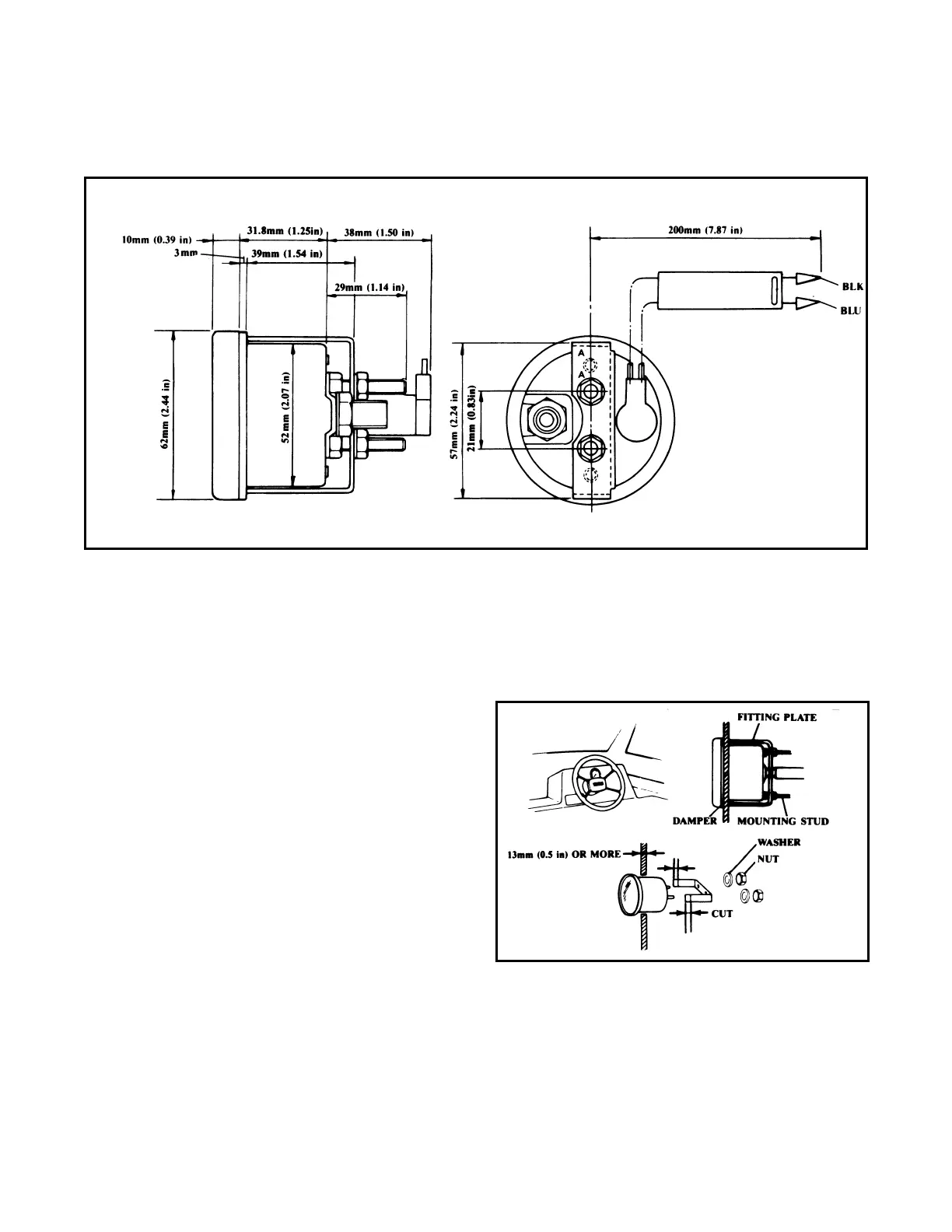

1 Select a mounting location so the gauge is
easy to read from the helm. Be sure there is
sufficient clearance behind the panel for the
meter and hose.
2. Make a 2-1/6 inch diameter hole in the
desired location.
3. Remove the fitting plate from the meter, fit
the meter into the panel, and install the fitting
plate over the mounting studs.
4. Place the washers over the studs, and then
evenly tighten the mounting nuts until the
meter can no longer be rotated by hand.
NOTE: If the instrument panel has a thickness of
more than 13mm (0.5 in) and it is impossible to
secure the meter with the fitting plate, cut the fit-
ting plate so the meter can be installed.
