FEATURES AND BENEFITS
ELECTRIC SHIFTING SYSTEM

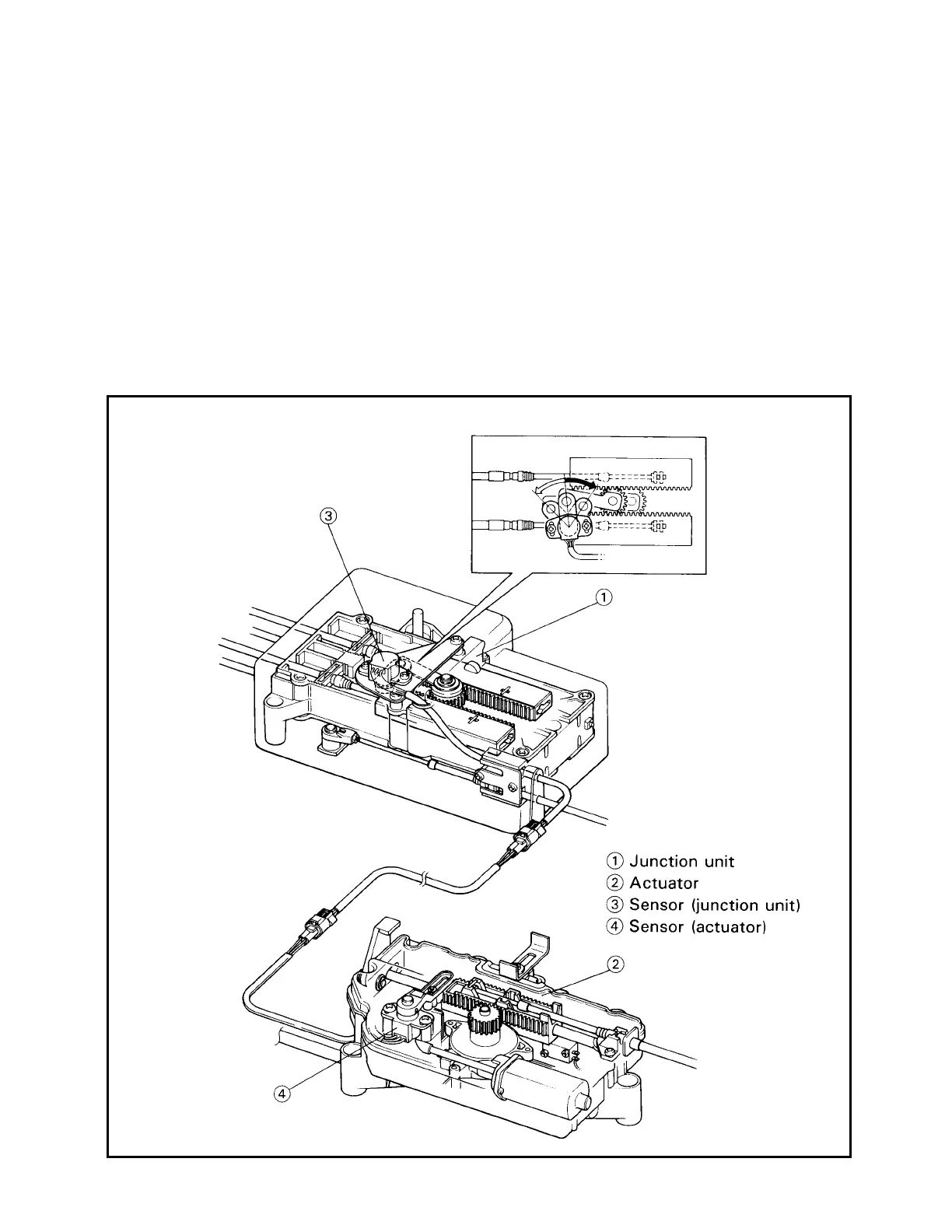

The dual station system uses an electric servo system to have the system perform the shifting oper-
ation.
The shifting motion of the remote control lever is transmitted to the junction unit mechanically
through cable, and then electrically to the servomotor which controls the shifting mechanism
according to the lever movements.
The change of shift angle is converted to a voltage by the sensor in the junction unit.Then, the ser-
vomotor is actuated according to the voltage differences between the voltage and a voltage detect-
ed by the sensor in the acutator side.
