Yamaha 684CS - 705 Flush Side-Mount Remote Control Assembly

4-32
Outboard Rigging Guide - 2001

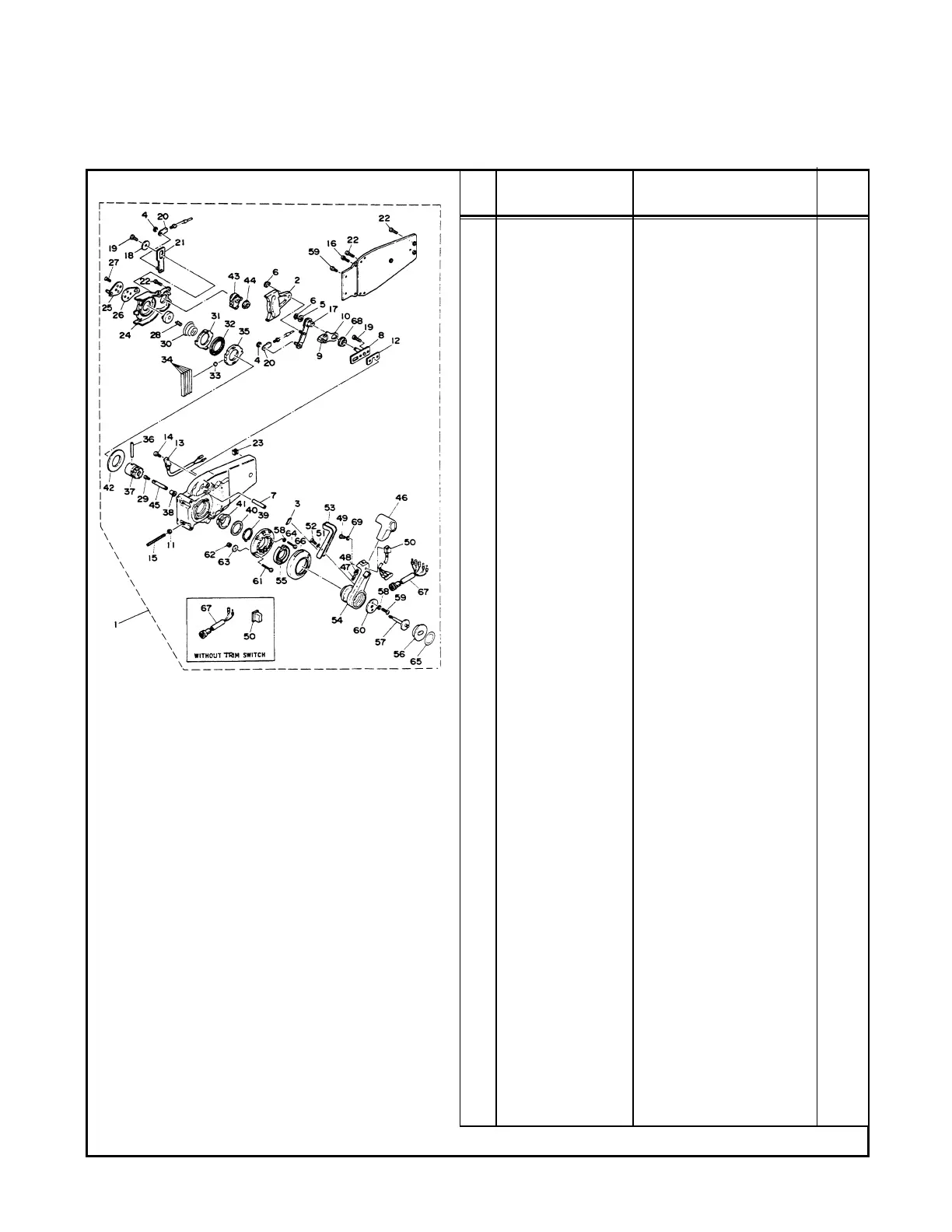

705 FLUSH SIDE MOUNT REMOTE CONTROL ASSEMBLY (PUSH TO-OPEN)
REF
NO PART NUMBER DESCRIPTION QTY.
Remote Cotrol Ass’y (90°)1
2 6X0-48252-00-00 • Plate, Cam 1
3 6X0-48138-00-00 • Cap, Lock Arm 1
4 93430-06024-00 • Circlip 3
5 92990-10600-00 • Washer 1
6 EL8-48259-00-00 • Circlip 2
7 6X0-48265-00-00 • Shaft, Friction 1
8 6X0-48262-00-00 • Shaft, Throttle 1
9 6X0-48264-00-00 • Throttle, Friction 1
10 6X0-48187-00-00 • Plate, Adjust 1
11 95380-06600-00 • Nut 1
95380-06600-00 • Nut 2
12 704-48266-00-00 • Spacer 1
13 704-82540-00-00 • Neutral Switch Ass’y1
14 98580-03015-00 • Screw 2
15 EL8-48281-00-00 • Screw 1 1
704-48281-00-00 • Screw 1 1
16 97890-05025-00 • Screw 2
17 6X0-48261-00-00 • Arm, Throttle 1
18 EL8-48191-00-00 • Washer 1
19 97380-06018-00 • Bolt 3
20 703-48345-01-00 • Cable End, Rem. Control 2
21 EL8-48271-00-00 • Arm, Shift 1
22 EL8-48127-00-00 • Screw 9
23 703-48358-00-00 • Anchor, Cable 1
24 EL8-48231-00-00 • Housing, Gear 1
25 6X0-48241-00-00 • Arm, Drive 1
26 EL8-48254-00-00 • Stopper 1
27 92780-06020-00 • Screw 2
28 EL8-48158-00-00 • Spring 1 1
29 98580-04005-00 • Screw 1
30 EL8-48244-00-00 • Spring, Free Accel. 1
31 EL8-48245-00-00 • Plate, Lock 1
32 704-48178-00-00 • Plate, Shift 1
33 701-48248-00-00 • Roller, Free Accel. 1
34 704-48238-00-00 • Spring, Detent 5
35 6X0-48121-00-00 • Gear 1 1
36 EL8-48164-00-00 • Pin 2 1
37 EL8-48242-10-00 • Shaft, Drive 1
38 702-48263-00-00 • Bushing 4 1
39 EL8-48279-00-00 • Circlip 2 1
40 704-48193-00-00 • Washer 3 1
41 EL8-48234-00-00 • Bushing 1 1
42 703-48192-00-00 • Washer 2 1
43 EL8-48233-00-00 • Gear 2 1
44 702-48235-00-00 • Bushing 1
45 6X0-48153-00-00 • Shaft, Accel. 1
46 6X0-48222-00-00 • Grip, Control Lever 1
