5-10
Outboard Rigging Guide - 2001 Speedometer

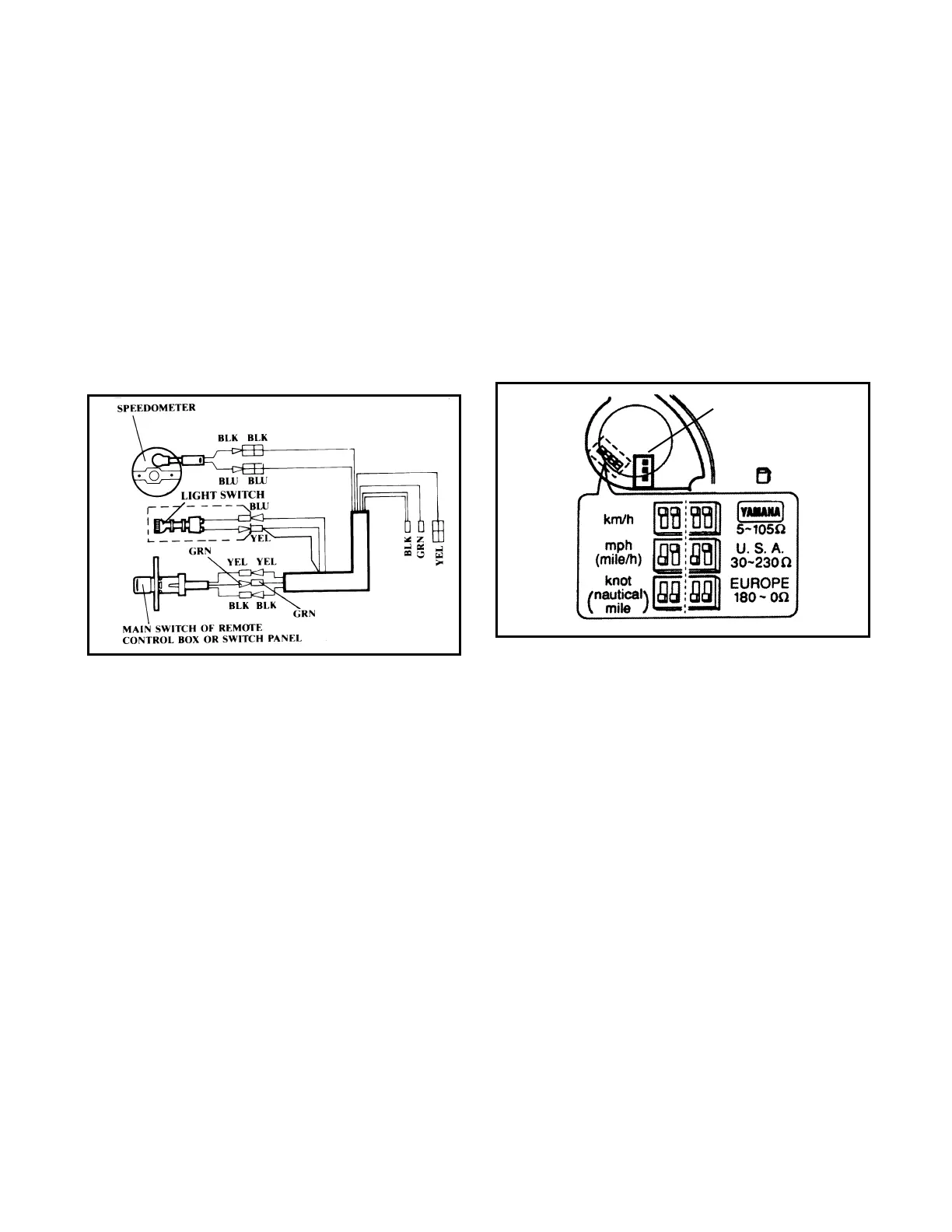

Speedometer Wiring
Analog Speedometer
1. Connect the wiring as shown. The same lead
wire used for the tachometer can be used.
NOTE: If an aftermarket instrument light switch
is used, connect it as shown. Otherwise, connect
the yellow and blue leads together. The instru-
ment light will then come on when the main
switch is in the ON position.
2. After installation, connect the power and
check the operation of the instrument light.
Multi-Function Digital Speedometer
For wiring information and diagrams, refer to the
Boat Wiring Diagrams in the Electrical Section 3
of this manual.
Speedometer Calibration
Calibrate the multi-function speedometer accord-
ing to the illustration below.
FUEL MANAGEMENT
ADAPTOR PLUG
To Next Page
