7-32
Outboard Rigging Guide - 2001 Steering Hooks
Installation

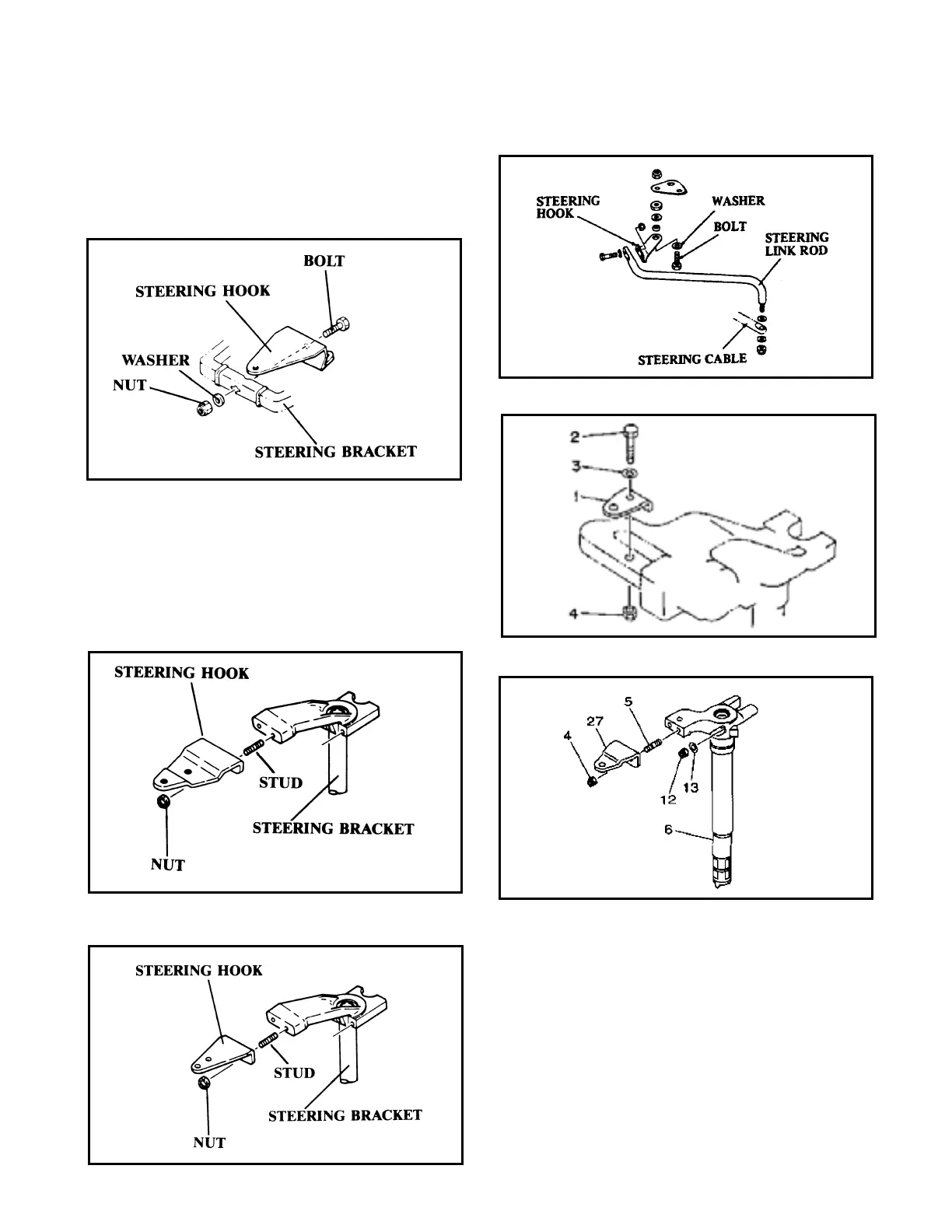

Mount the steering hook onto the steering bracket
as shown below:
25HP and C40
NOTE: When a steering hook is standard equip-
ment on any particular model it should already be
attached to that motor when you receive it in the
crate. On the 25hp and 40hp manual, the steering
hook (not standard) will need to be installed as
shown above.
30HP
40HP~90HP, including C Series, and
F80/F100/F115
T9.9
9.9, 15, and F15
F25
