Yamaha 684CS - Page 396

7-35
Outboard Rigging Guide - 2001
25HP (ER Model), 30HP ~ 90HP
Including C Series
F80/F100/F115

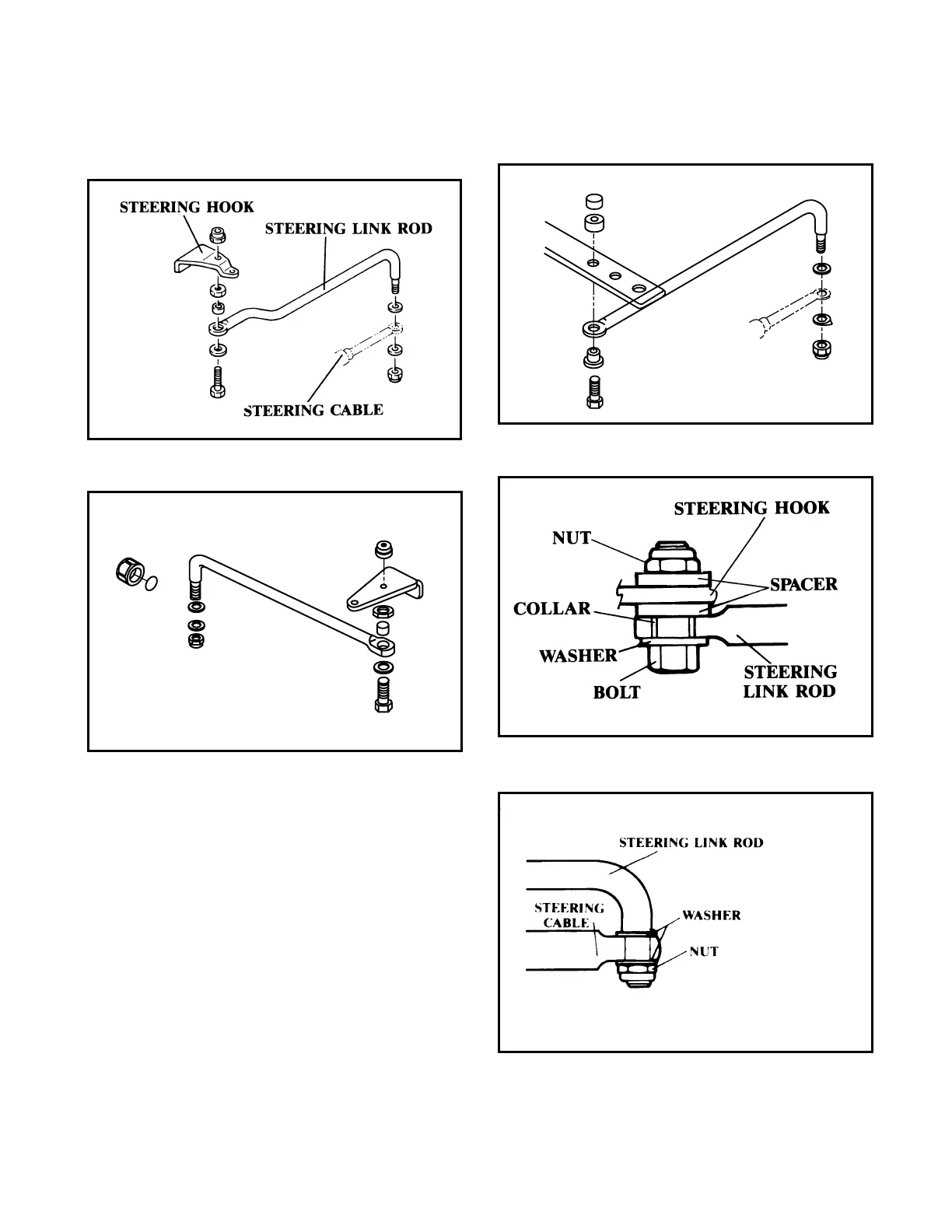

NOTE:There are two holes in the steering hook.
For best results in steering, use the inner hole to
attach the steering link rod.
115~250HP
25HP~90HP/F80/F100/F115
115~250HP
