10B-31
Outboard Rigging Guide - 2001

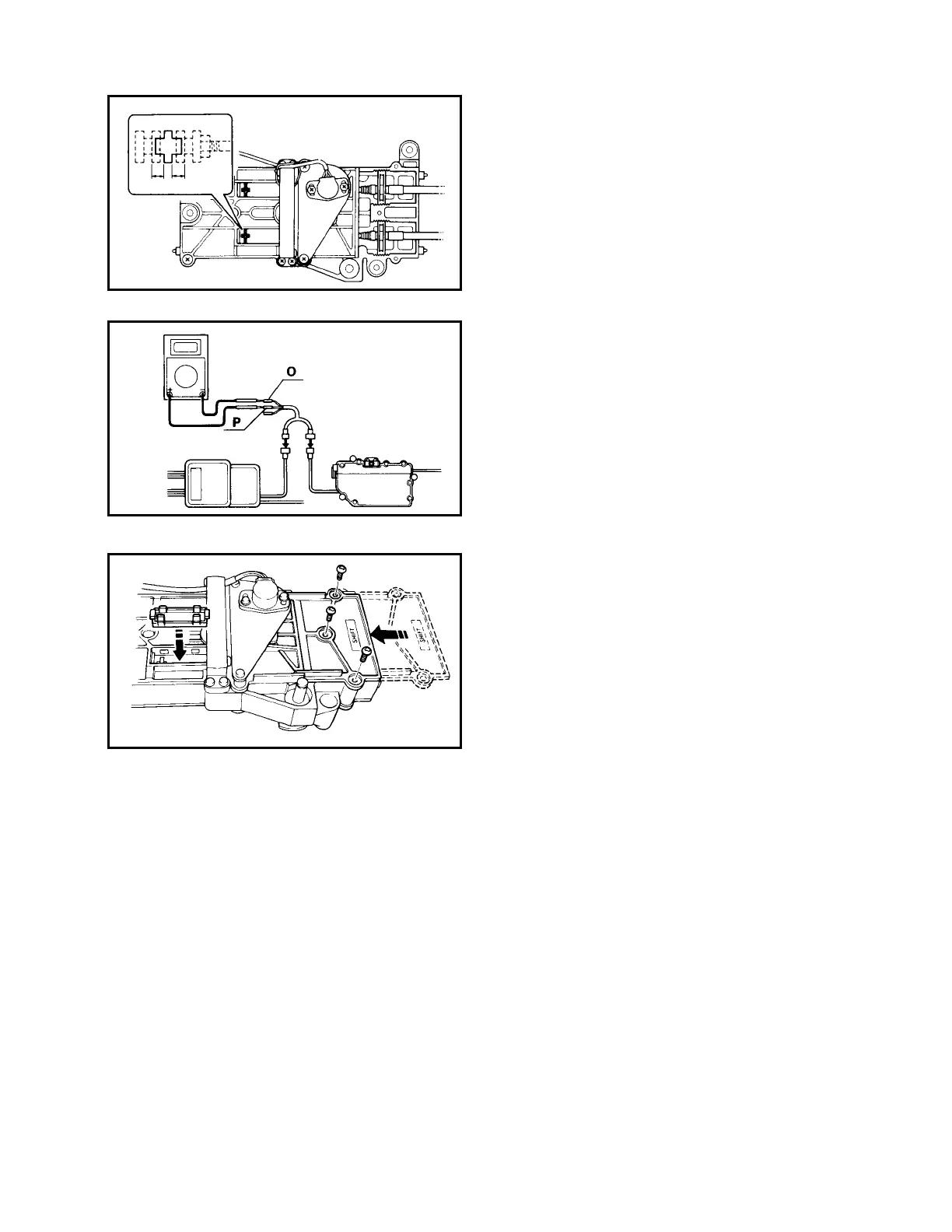

10) Move the remote control lever between for-
ward and reverse positions at the first sta-
tion several times and place the shift rack
in the junction unit in neutral.
Check if the grooves on the rack and cable
end are offset each other.
11) If still offset, repeat the above steps 4) to
10) until the offset is eliminated.
12) Install the cable clamp, move the remote
control lever between forward and reverse
positions at the first station several times
and check that the voltage is within the
specification.
13) Install the clamp covers and the side
cover.
